Description

This item is brand-new, factory sealed.

Specifications

Mfr Part Number: SSR-750FX
Features:
- 80 PLUS Gold
- Compact Size
- Fluid Dynamic Fan Bearing
- Hybrid Silent fan Control
- Tight Voltage Regulation
- Cable-free Connection Design
- 10 Years Warranty
Type: Intel ATX12V
Total Power:750W
Input:
- Voltage: 100 - 240V
- Current:10- 5A
- Frequency: 50 - 60Hz
MTBF: 100,000 hours (@ 25 C, excl. fan)
Output: +3.3V @ 20A, +5V @ 20A, +12V @ 62A, -12V @ 0.3A, +5Vsb @ 3A
Connectors: 1x 20/24-pin Main Power Connector; 2x 4/8-pin CPU Connector, 4x 6/8-pin PCI-Express Connectors, 8x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
Cooling System: 120mm Fluid Dynamic Bearing Fan
Protection: OPP, OVP, UVP, OCP, OTP, SCP
Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm

Features

Environmentally Friendly:
Yes

Energy Efficiency Compliance:
Energy-related Products Directive Lot 6 (ErP Lot 6)

Energy Efficiency Certification:
80 Plus Gold

Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)

Specs

Power Description
Number of +12V Rails	1
Output Power	750 W
Output Current	20 A 62 A 300 mA 3 A
Output Voltage Detail	3.3 V DC @ 20 A 5 V DC @ 20 A 12 V DC @ 62 A -12 V DC @ 0.3 A 5 V DC @ 3 A
Output Voltage	3.3 V DC 5 V DC 12 V DC -12 V DC
Physical Characteristics
Form Factor	Internal
Height	3.4"
Width	5.9"
Depth	5.5"
Warranty
Limited Warranty	10 Year
General Information
Brand Name	Seasonic
Manufacturer Website Address	http://www.seasonicusa.com
Product Type	Power Supply

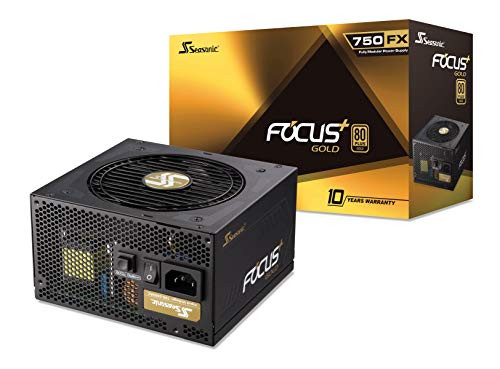

Product Name	FOCUS PLUS SSR-750FX 750W Power Supply
Manufacturer	Sea Sonic Electronics Co., Ltd
Manufacturer Part Number	SSR-750FX
Product Model	SSR-750FX
Product Line	FOCUS PLUS
Technical Information
Specification Compliance	ATX12V/EPS12V
Efficiency	90%
Number of Fans	1
Modular	Yes
