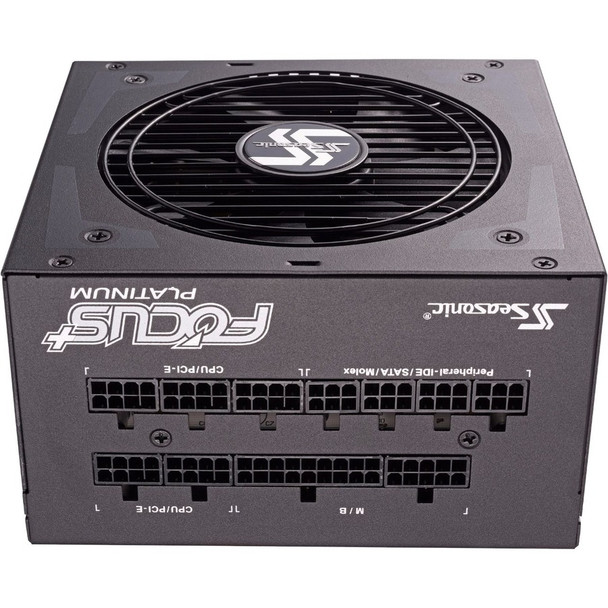

Seasonic SSR-750PX FOCUS 750W 80 PLUS Platinum ATX12V Power Supply

This item is brand-new, factory sealed.

The technologies applied and the components and materials used in the manufacturing of the FOCUS+ Platinum 750 watt power supply do not compromise on Seasonics legendary high standards. This product received 80 PLUS Platinum certification, where efficiency reaches 92 % at 50 % system load. Superior dynamic response, great system stability, maximized 12 V DC rail output and a state-of-the-art fan control system are just some of the features that will awe enthusiasts who become familiar with this power supply. With Seasonics 10 years warranty added: it is as good as irresistible.


80 PLUSPlatinum
The higher the level of efficiency of the power supply, the less power gets wasted in the form of excess heat . The 80 PLUS Platinum certification guarantees greater than 90 %, 92 % and 89 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The Seasonic Platinum Series represents the highest level of technology and efficiency achievement of Sea Sonic during its 40 years of commitment to engineering excellence.


Compact Size
This ultra-high power density, small footprint (140 mm depth) power supply is an ideal choice for all, especially compact ATX cases.

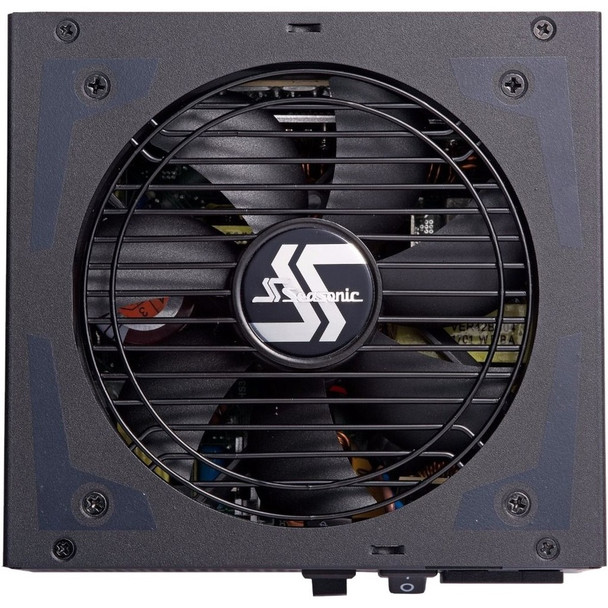

Hybrid Silent fan Control
The industrys first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.


Benefits of this design
Reduced noise without increase in temperature;

Extended fan life due to the reduced number of fan rotations;

Optimized heat dissipation at all times;

Unsurpassed silent performance in Fanless Mode.

80PLUS
Platinum Form Factor
Intel ATX 12 V Fan Information
Fan Size: 120 mm
Fan Control: Hybrid Silent fan Control
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy: 70,000 hours at 40^oC, 15 % - 65 % RH Cable Information
Modularity: Fully Modular
Cable type: Flat black cables Electrical Features
Operating Temperature: 0 to 50^oC
MTBF at 25^oC, excl. fan: 100,000 hours
AC Input: Full Range
Protection: OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental
Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH Connector
1 x Main Power (20/24 pins): 1 x 610 mm
2 x CPU (4/8 pins): 2 x 650 mm
4 x PCIe (6/8 Pins): 2x 675 + 75 mm
8 x SATA: 2 x 450 + 120 + 120 + 120 mm
3 x Peripheral: 1 x 450 + 120 + 120 mm
1 x Floppy: 1 x 101 mm AC Input
Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz DC Output
Rail/ Maximum Power:
+3.3 V /20 A / 100W
+5 V / 20 A / 100W
+12 V / 62 A / 744W
-12 V / 0.3 A / 3.6W
+5 VSB / 3 A / 15WTotal continuous power
750 WItem Dimension (L inchxW inchxH inch)
6 x 6 x 4Weight
6.60 lbWarranty Information
10 years
