Seaview CGM90 Black Plastic Horizontal Cable Seal F/multiple Wires
- SKU:
- 21072583
- MPN:
- cgm90
- Availability:
- Usually ships the same or next business day. In stock at our CA, Fl, PA, WA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 06:46:01 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $28.18 each 28.18 |
| Buy 3 | and pay only $26.02 each 26.02 |
| Buy 4 | and pay only $25.23 each 25.23 |
| Buy 5 | and pay only $24.75 each 24.75 |
| Buy 6 or above | and pay only $23.24 each 23.24 |
- Stock Update:
- 12/08/2025 06:46:01 PM PST
Description
This item is brand-new, factory sealed.

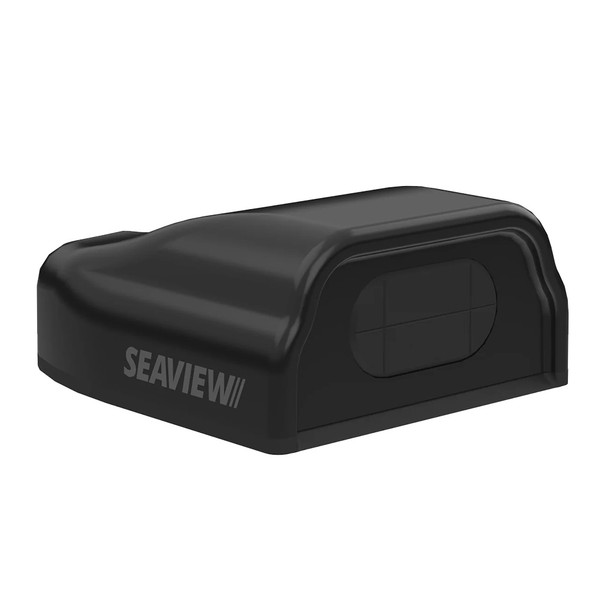

Seaview CGM90 Cable Seal Multi Cable up to 6.35mm Black Plastic Cover
Model: CGM90- Improved Shape & Design: Low profile design for a strong, impact-resistant and clean installation (no sharp edges to hit your foot on). Unlike other brands, our inner rubber seal is flush with the top of the Cable Gland so that water does not have a place to collect.
- Watertight: Tapered rubber seal forms watertight installation. Base gasket also provided for clean water tight installation. Seaview Cable Glands have waterproof ratings of IPX6 and IPX7.
- Easy Installation: Each Cable Gland is supplied with a blank rubber tapered seal that has a molded location to drill and cut. Captive nuts make for easy assembly. Cable connectors do not need to be removed during installation. Stainless steel fasteners included.
The Seaview horizontal cable seals (90 degree cable seal) are a streamlined, waterproof seal that has a horizontal orientation.
The CG2090 series cable seal fits cable diameters up to 0.53" (13.5mm). Max connector size approx. 0.375"-0.5" (9.5mm-12.7mm) depending on connector length and type.
The CGM90 series cable seal fits cable diameters up to 0.25" (6.35mm). Max connector size approx. 0.3125"-0.375" (7.94mm-9.53mm) depending on connector length and type.
These have a plastic housing (white or black) that is strong and impact-resistant with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with drill tubes allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.
These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.
