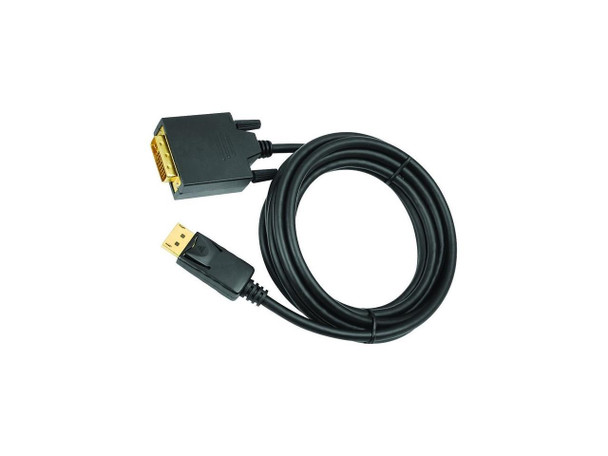

Siig 10 Ft Displayport To Dvi Converter Cable [dp To Dvi] - Displayport/dvi For Notebook, Monitor, Video Device, Hdtv - 256 Mb/s - 10 Ft - 1 Pack - 1 X Displayport Male Digital (cb-dp1a11-s2)

This item is brand-new, factory sealed.

SIIGs 10ft DisplayPort to DVI Converter Cable (DP to DVI) is designed to convert a DisplayPortTM output to a DVI-D Single Link connector. It supports a wide variety of HDTV resolutions and PC display modes to provide optimal video quality. This 10ft long converter cable is built with latching DisplayPort connector to ensure secure connection, and it is easy to use with no software required. It is the convenient and cost-effective solution to enable your DisplayPort-equipped notebook or desktop system to instantly work with a DVI monitor, saving you the cost of upgrading a display device.



Features


  Compliant with DisplayPort specification v1.1a, supporting 1.62 & 2.7 Gbps


  20ps channel deviation with 2Gbps transfer rate


  Supports 1080p & PC graphics resolution up to 1920x1080


  No software required & easy to use


  Latching DisplayPort connectorChipset:
LT8611Compliant with Displayport 1.1a standardSupports 1920x1080 or HDTV resolutions up to 1080p at 60 HzDisplay modes:
PC: VGA, SVGA, XGA, SXGA, UXGA
HDTV: 480i, 576i, 480p, 576p, 1080i 1080pOverall Length: 124.58" +/- 1.18" (3165mm +/- 30mm)
Color:
Black
Connector:
Gold plated
Material:
PlasticConnectors:
20-Pin DisplayPort (male) to 24+1 pin DVI-D Single Link (male)
DisplayPort connector housing (L x W x H): 1.91" x 0.78" x 0.51" (48.5 x 20 x 13 mm)
DVI connector housing (L x W x H): 2.59" x 1.65" x 0.66" (66 x 42 x 17 mm)Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: < 85% non-condensingCertifications/Standards:
FCC, CE, RoHSCountry of origin:
ChinaItem Dimension (L inchxW inchxH inch)
1 x 8 x 10

Weight
1.00lb

Warranty Information
5 Years

Features

Environmentally Friendly:
Yes



Country of Origin:
China



Specs

Physical Characteristics
Weight (Approximate)	0.33 lb
Product Color	Black
Warranty
Limited Warranty	3 Year
General Information
Brand Name	SIIG
Manufacturer Website Address	http://www.siig.com
Marketing Information	Designed to convert a DisplayPort TM output to a DVI-D Single Link connector Cost-effective solution to enable your DisplayPort-equipped notebook or desktop system to instantly work with a DVI monitor, saving the cost of upgrading a display device Latching DisplayPort connector to ensure secure connection Easy to use with no software required Compliant with DisplayPort specification v1.1a, supporting 1.62 and 2.7 Gbps Supports 1080p and PC graphics resolution up to 1920x1080 and 20ps channel deviation with 2Gbps transfer rate
Product Type	A/V Cable
Product Name	10 ft DisplayPort to DVI Converter Cable (DP to DVI)
Manufacturer	SIIG, Inc
Manufacturer Part Number	CB-DP1A11-S2
Packaged Quantity	1
Technical Information
Connector on Second End Details	1 x 25-pin DVI-D (Single-Link) Digital Video - Male
Connector Plating	Gold
Data Transfer Rate	2 Gbit/s
Supported Resolution	1920 x 1080
Cable Type	DisplayPort/DVI
Connector on First End Details	1 x 20-pin DisplayPort 1.1a Digital Audio/Video - Male
Connector Type on First End	DisplayPort 1.1a Digital Audio/Video - Male
Connector Type on Second End	DVI-D (Single-Link) Digital Video - Male
Cable Length	10 ft
Features	Locking Latch
Device Supported	Notebook Monitor Video Device HDTV
