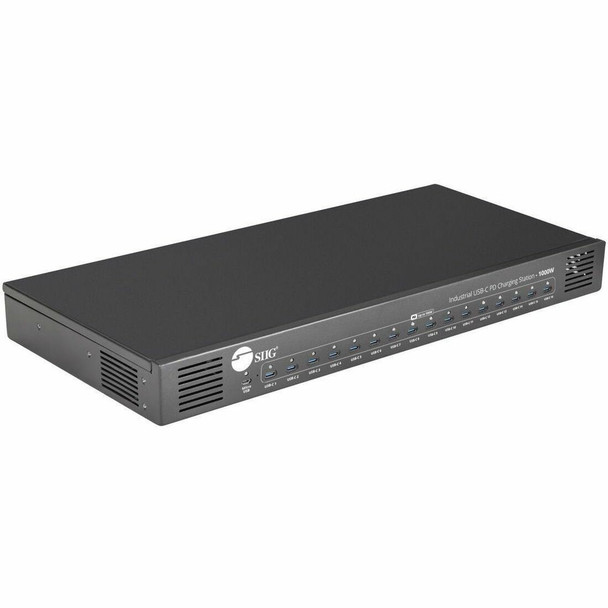

SIIG 16-Port Industrial USB-C PD Charging Station - 1000W - up to 10 USB-C 100W - up to 16 USB-C 60W (289548)

This item is brand-new, factory sealed.

Features

Unrivaled Charging Capability

1000W total power output ensures sufficient power for all connected devices

16 USB-C charging ports

Plug in any 10 ports simultaneously, each port supports up to 100W

Plug in any 15 ports simultaneously, each port supports up to 65W

Plug in 16 ports simultaneously, each port supports up to 60W

Supports PD 2.0 & 3.0 ensuring compatibility with a wide range of devices

Multiple voltage outputs: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A for flexible charging optionsv
Features an intelligent power allocation solution, providing a 95% power conversion rate for industry-leading efficiencyv
Robust Safety Features

Over Current Protection: Guard against excessive current and potential damage

Over Voltage Protection: Ensure safe voltage levels for all connected devices

Over Heating Protection: Smart temperature control to prevent overheating

Short Circuit Protection: Instant response to protect your devices from electrical mishaps

Ensures charging station and the connected devices safe

19 Rack Mountable Metal Housing

Heat dissipation and durable metal shell rack, can be mounted into a standard 1U of EIA-standard 19-inch rack using ear-mounts (included)

Industrial Grade Durability

Withstands wear and tear in various harsh environments

Power Saving

It is designed with a power switch to allow users to conserve energy when the hub is not in use. There is also a built-in LED to indicate power status

Automatic Temperature Control

Enables to turn on/off the fans automatically according to the temperature setup

>70^oC: Start the fans automatically

<70^oC: Cut off the fans automaticallyInput:
Input Voltage:
100VAC - 240VAC
Frequency:
50Hz / 60Hz
Input Current:
24V/41.67A
C14 Power Jack:
1.5m (3x1.5mm2 US power cord)Internal Power Supply:
1000W - 24VOutput
USB Port: 16 x USB-C, Female
Micro USB: support extend the LED panel (option)Power Delivery
PD output power: Up to 100W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
10 ports USB-C plug in together, it is support up to 100W for each port
15 ports USB-C plug in together, it is support up to 65W for each port
16 ports USB-C plug in together, it is support up to 60W for each portUSB-C Protocol
Support 5V / 9V / 12V Voltage output
Support PD 2.0 / PD 3.0
PPS support 3.3V to 21V, 5AOutput specification
Support USB-C PD output
Support BC 1.2_DCP, Apple protocol
Support Qualcomm QC2.0 / QC3.0 / QC4.0+
Support Fast Charging protocol FCP, SCP and AFC (Max 12V)16 port USB-C LED indicators:
RED color: Charging in progress
GREEN color: Power on or full chargedProduct:
Color:
Black
Housing:
Metal housing with standard 19 inch rack mounting
Connectors:
1x AC Power Jack
1x Power Switch
16x USB Type-C, Female, PD up to 100W
1x Micro USB, support extend the LED panel (option)Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 10% to 90% RH (non-condensing)
Working Altitude: Less than 2kmCertifications/Standards:
FCC, CE, RoHS, ETL
ETL: Intertek 4000850Country of origin:
ChinaPackage contents
1x 16-Port Industrial USB-C PD Charging Station - 1000W
1x Power cord
2x Mounting Bracket
8x Screws
1x User ManualItem Dimension (L"xW"xH")
22 x 4 x 11

Weight
9.81 lbs

Warranty Information
TBA

Package Contents:

• Charging Station
• 1 x Power Cord
• 2 x Mounting Bracket
• 8 x Screws
• 1 x User Manual
