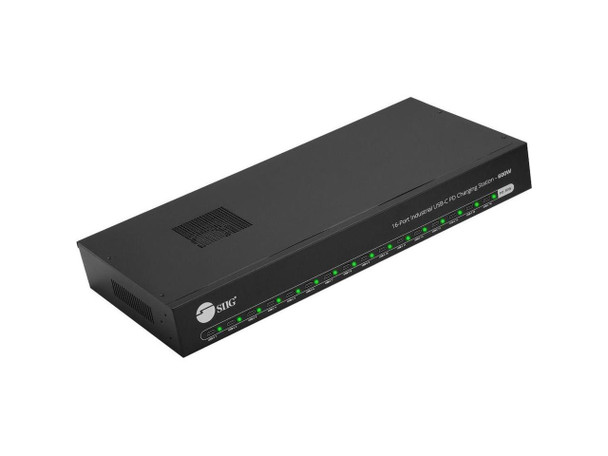

SIIG 16-Port Industrial USB-C PD Charging Station - 600W - Supports 30W per port (273867)

This item is brand-new, factory sealed.

Features

Easily and quickly charge up to 16 USB-C devices such as iPhone/iPad, Tablet, Smart Phone, Mobile device and each port up to 30W charging power

Support Power Delivery 2.0 and 3.0 for 5V/3A, 9V/3A and 12V/2.5A charging specification

Industrial grade and built-in 24V 600W (Meanwell Brand) power adapter with UL certification to keep the safe charges

Power switch conserves energy when not in use, built-in LED provides easy recognition of power status

Protection and Reliability for Over-voltage, input under voltage, output short circuit, output over current, system over temperature

Enables to turn on/off the fans automatically according to the temperature setup

Fully heat dissipating and durable metal housing rack mountable into a standard 19-inch rack

Compatible with Apple iPhone 14/13/12/11/X, iPhone 8, iPhone 8 Plus, Samsung Galaxy Note 8, S8, S8 plus and more, Tablets/ Laptop for Apple iPad, MacBook 12-inch, MacBook Air/Pro and more USB-C devices. This is an excellent choice for charging USB-C products

Applications

School

Restaurant

Airport

Industrial Environment

Educational Institution

Shopping Center

Data Center

High Speed Rail Station

Testing labChipset:
IP6520TInternal Power Supply:
600W24V Meanwell switching power supplyInput:
Input Voltage: 110VAC/220VAC select by Switch
Frequency: 50Hz / 60Hz
Input Current: 12A/115VAC, 7.5V/230VACOutput
USB Port: 16 x USB-C, Female
PD output power: 30W (5V/3A, 9V/3A, 12V/2.5A)
Efficiency: VIN24V, VOUT5V/3A, Conversion Efficiency is 92%USB-C Protocol
Support 5V / 9V / 12V Voltage output
Support PD 2.0 / PD 3.0
PPS support 3 to 11V, 20mV/step Voltage outputOutput specification
Support USB-C PD output
Support BC 1.2_DCP, Apple, Samsung protocol
Support Qualcomm QC2.0 / QC3.0
Support MTK PE+1.1 and MTK PE+2.0
Support Fast Charging protocol FCP and AFC (Max 12V)LED indicators:
Charging in progress: RED color
Power On or Fully charged: GREEN colorOutput overcurrent protection:
output >3.5 to 3.9A, USB port current output automatic disconnectOutput overvoltage protection:
When the output terminal voltage>16V or more due to an accidental cause, the TVS discharge on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this portProduct:
Color:
Black
Housing:
Metal housing with standard 19 inch rack mounting
Connectors:
1x AC Power Jack
1x Power Switch
16x USB Type-C, Female, USB device connectionEnvironmental conditions:
Operating temperature:
14 to 131 degrees F
Storage temperature:
-4 to 158 degrees F
Relative humidity:
20% to 90% RH (non-condensing)
Working Altitude:
Less than 2kmCertifications/Standards:
FCC, CE, RoHS, UL
UL E183223Country of origin:
Engineered in USA , Manufactured in ChinaItem Dimension (L"xW"xH")
23 x 4 x 10

Weight
7.44 lbs

Warranty Information
2 year limited
