SIIG 1x4 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m (ce-h26v11-s1)
- SKU:
- 18057905
- MPN:
- ce-h26v11-s1
- Availability:
- Out of stock
- Stock Update:
- 11/21/2025 12:28:17 PM PST
- Stock Update:
- 11/21/2025 12:28:17 PM PST
Description
This item is brand-new, factory sealed.
SIIG 1x4 1080p HDMI Extender Splitter kit Over Cat6 Cable up to 394ft, HDMI 1.3, IR Pass-Through, Support TX to RX Connect Directly or Cascade More receivers via Ethernet Switch (CE-H26V11-S1)- With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1), are sold separately
- Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: Theres a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
- IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
- High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
- Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty
- Brand Name: SIIG
- Connector Type: Hdmi, Rj45
- Ean: 0662774044774
- Item Weight: 1.67 pounds
- Model Number: CE-H26V11-S1
- Part Number: CE-H26V11-S1
- UNSPSC Code: 26121600
- UPC: 662774044774
Specifications:
Transport protocol: HDbitT
Compliance: HDMI 1.3 and HDCP 1.2
Transmission distance: Up to 394ft (120m) via single Cat6 cable at 1080p@60Hz
Audio input: 7.1 channel, PCM, DTS, AC3
IR signal: Unidirectional full frequency, 20KHz to 60KHz
Video resolution: 480p / 720p / 1080i / 1080p@60Hz
Network cable: UTP/STP CAT6/6a/7 solid copper
Connection topology:
Direct connection: 1x4
Cascade connection: 1-to-many through dedicated IGMP Gigabit switches, up to 30 receivers per TX
Product:

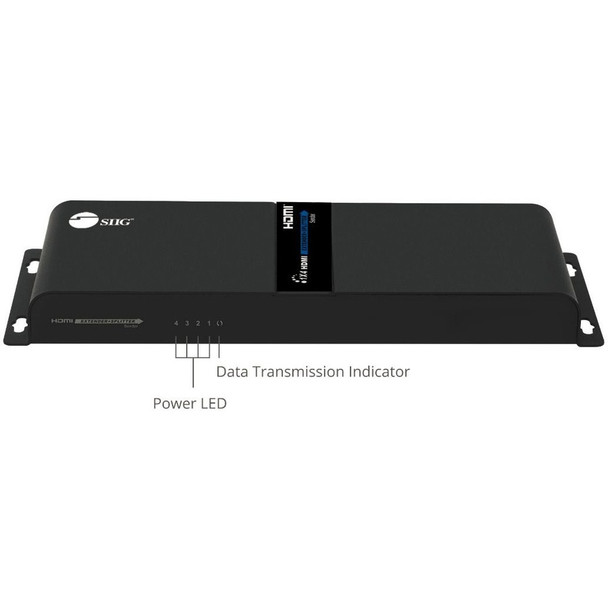

Transmitter unit (TX):
Dimensions: 9.92" (L) x 0.98" (H) x 3.82" (W)
Weight: 1.34 lbs

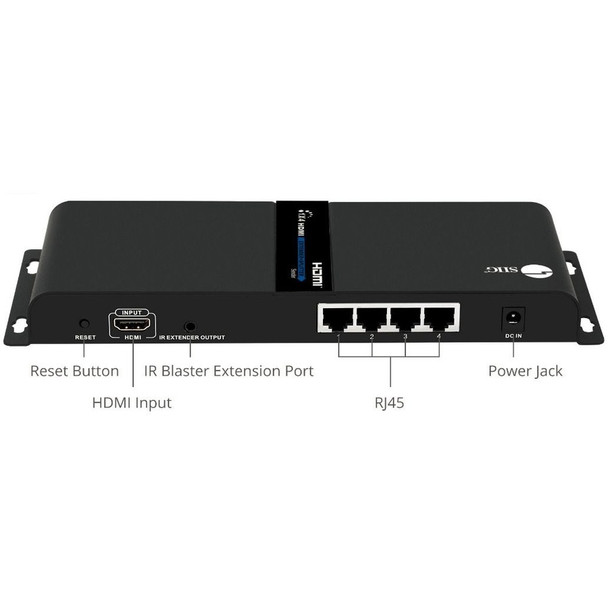

Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 3.5mm jack, IR blaster, Output
4x 8-pin, RJ45, HDbitT signal, Output
1x Power jack, 5V/2A, Input
1x Reset button
Receiving unit (RX):
Dimensions: 3.81" (L) x 0.93" (H) x 3.70" (W)
Weight: 0.33 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR receiver, Input
1x 8-pin, RJ45, HDbitT signal, Input
1x Power jack, 5V/1A, Input
1x Reset button
Unit Package:
Dimensions: 14.49? (L) x 2.44? (H) x 8.46? (W)
Weight: 5.51 Lbs
Power adapter:
Input: 100-240V / 50-60Hz
TX: DC 5V/2A (1pc)
RX: DC 5V/1A (8pcs)
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China

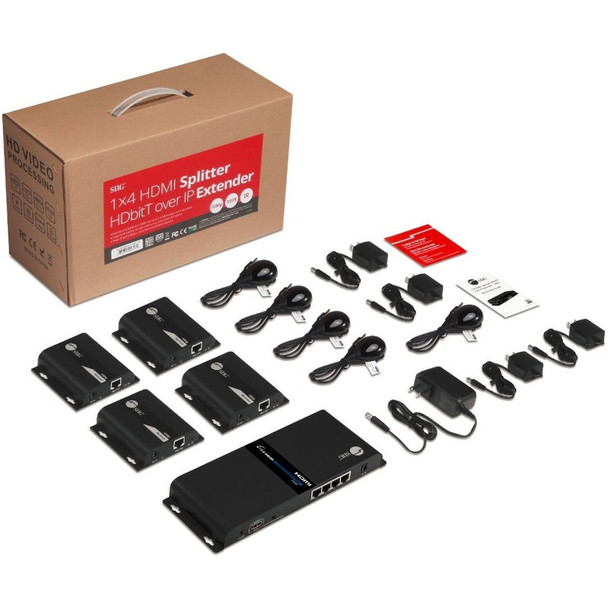

Package contents:

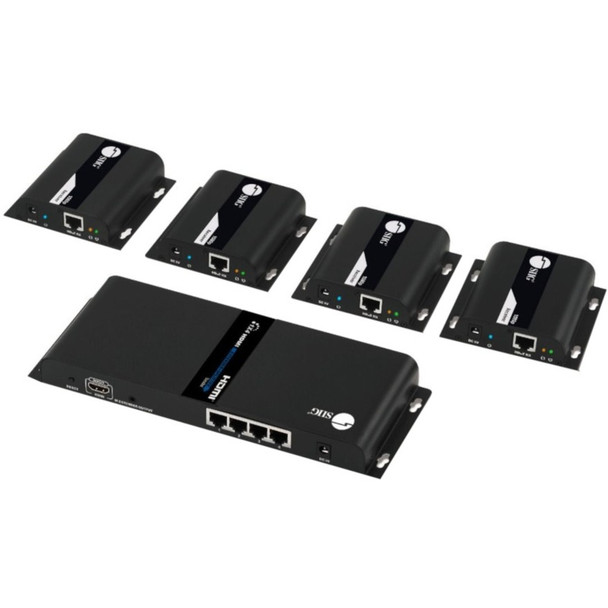

1x4 HDMI Splitter HDbitT over IP Extender - 120m (1 TX + 4 RXs)
Power adapter (5pcs):
5V/2A (1pc)
5V/1A (4pcs)
IR Blaster cable (1pc)
IR Receiver cable (4pcs)
Quick Start Guide
Package Contents:
- 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m
- 5 x Power Adapters
- 1 x IR Blaster Cable
- 4 x IR Receiver Cable
- Quick Start Guide
Features
- 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m
- 5 x Power Adapters
- 1 x IR Blaster Cable
- 4 x IR Receiver Cable
- Quick Start Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Frequency |
|
| Physical Characteristics | |
| Form Factor |
|
| Transmitter Weight (Approximate) | 1.34 lb |
| Receiver Width | 3.70" |
| Receiver Height | 0.93" |
| Receiver Depth | 3.81" |
| Transmitter Depth | 9.92" |
| Receiver Weight (Approximate) | 5.28 oz |
| Transmitter Height | 0.98" |
| Transmitter Width | 3.82" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 4 |
| Number of Network (RJ-45) Ports | 8 |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Graphics Modes | Full HD |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 4 displays, IR control, works with dedicated Gigabit network switches for more displays and extension With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1), are sold separately Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H26V11-S1 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 7 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 393.70 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 4 |
