SIIG 4-Port USB 2.0 Extender JUEX0311S1

This item is brand-new, factory sealed.

Extends USB 2.0 transmission distance up to 264 feet (80 meters) to connect to far away USB devices

Connect up to four USB peripheral devices, such as USB printers, USB camera, USB storage devices, USB card-readers, and more

Supports USB 1.0 (low-speed), USB 1.1(full-speed), and USB 2.0 (high-speed) data transfer rates

Supports USB hot-swap, Plug-and-Play, and suspend/resume features

No driver installation needed for the extender, the USB driver is installed automatically by the operating system

Metal housing for better RF shielding, efficient cooling, dependable performance
Compliant with USB 2.0 specification
Supports USB 2.0 data transfer rate up to 480Mbps
DIP switch adjusts the cable skew for different length Cat6 cable
Integrated equalizer compensates for different cable types
Power LED indicators
ESD protection:
Air: +/-19kV
Contact: +/-12kV

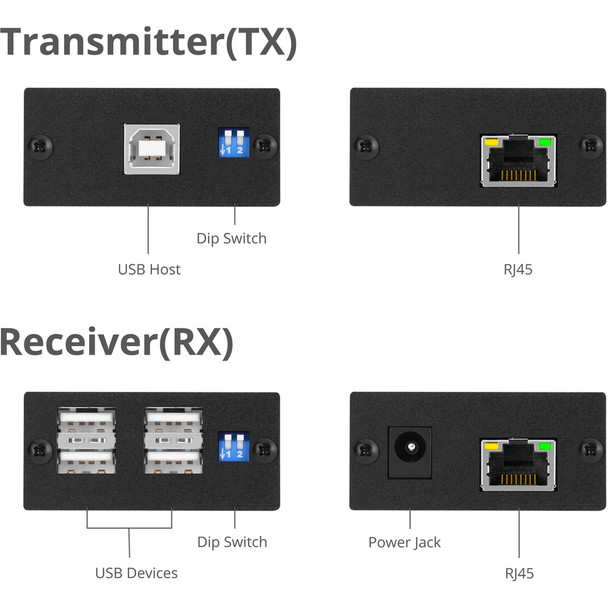

Transmitting unit (TX):
Color: Black
Housing: Metal
Connector:
1x 4-pin, USB Type-B, Female, Input
1x 8P8C with 2 LED indicators, RJ45, Female, Output
1x 2-pin DIP switch for cable equalization
Receiving unit (RX):
Color: Black
Housing: Metal
Connector:
1x 8P8C with 2 LED indicators, RJ45, Female, Input
4x 4-pin, USB Type-A, Female, Output
1x 2-pin DIP Switch for cable equalization
1x Power jack, power input
Power Adapter:
Input: 100-240VAC, 50/60Hz
Output: DC 5V/2A
UL listed: E135856 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L"xW"xH")
3 x 1 x 3
Weight
1.00 LB
Warranty Information
3 years

Features

Package Contents:

• 4-Port USB 2.0 Extender
• Power adapter
• USB 2.0 Type A to B cable
• Quick Start Guide



TAA Compliant:
Yes



Environmentally Friendly:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
China



Specs

Power Description
Input Voltage	120 V AC
Physical Characteristics
Product Material	Metal
Length	2.1"
Product Color	Black
Height	1"
Width	2.8"
Warranty
Limited Warranty	3 Year
Interfaces/Ports
Number of USB Ports	4
Network (RJ-45)	Yes
USB	Yes
Number of Network (RJ-45) Ports	1
General Information
Brand Name	SIIG
Manufacturer Website Address	http://www.siig.com
Marketing Information	Extends USB 2.0 device connections up to 264 feet (80 meters) over single Cat6 cable Extends USB 2.0 transmission distance up to 264 feet (80 meters) to connect to far away USB devices Connect up to four USB peripheral devices, such as USB printers, USB camera, USB storage devices, USB card-readers, and more Supports USB 1.0 (low-speed), USB 1.1(full-speed), and USB 2.0 (high-speed) data transfer rates Supports USB hot-swap, Plug-and-Play, and suspend/resume features No driver installation needed for the extender, the USB driver is installed automatically by the operating system Metal housing for better RF shielding, efficient cooling, dependable performance
Product Type	USB Extender
Product Name	4-Port USB 2.0 Extender
Manufacturer	SIIG, Inc
Manufacturer Part Number	JU-EX0311-S1
Technical Information
Maximum Data Transfer Rate	60 MB/s
Maximum Extended Range	262.47 ft
