siig

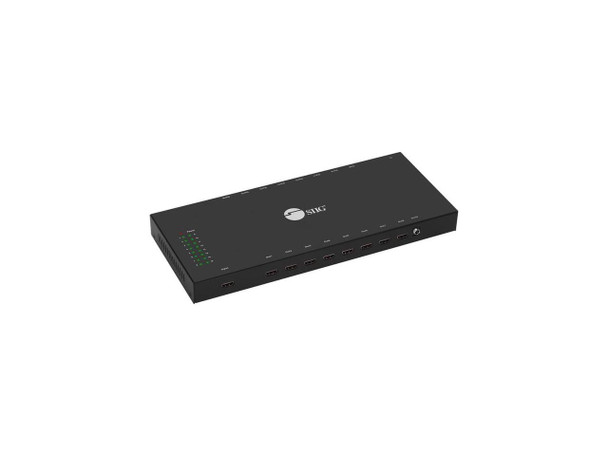

SIIG 1x16 HDMI Splitter with 3D and 4Kx2K CEH24Q11S1
(No reviews yet)
Write a Review
- SKU:
- 18213115
- MPN:
- 228227
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 09:07:40 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $144.45 each 144.45 |
- Stock Update:
- 12/08/2025 09:07:40 PM PST
Description
This item is brand-new, factory sealed.
Distributes 4K HDMI video and audio signals from a single source to up to 16 4K HDMI displays simultaneously while maintaining signal qualitySupports up to UHD 4Kx2K (3840x2160 @30Hz) resolution
Supports high definition resolutions of 1080p@ 60Hz, 720p/1080i @120Hz
Supports Dolby TrueHD and DTS-HD Master audio formats
Sturdy metal housing provides durability and reduces EMI/RFI noise interference
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference delivering reliable performance and long hours of trouble free operation
Compliant with HDMI 1.4 and HDCP 1.4 Supported resolution:
480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4Kx2K at 30HzSupported video color format:
xv-YCC / Deep color 36-bitVideo bandwidth:
10.2GbpsAudio formats:
DTS-HD / Dolby True-HD / LPCM / AC3 / DTS / DSDInput TMDS signal:
5-1.0V (peak-to-peak)Input DDC signal:
5V (peak-to-peak, TTL)HDMI cable length:
up to 15 meters (Input 5m / Output 10m)Power consumption:
15 wattsPower and link LED indicatorProduct:
Color: Black
Housing: MetalConnectors:
1x 19-pin, HDMI, Type A, Female, Input
16x 19-pin, HDMI, Type A, Female, Output
1x Power Switch, On/OffPower adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V/4A
UL Listed: E476609 / Level: VIEnvironmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 5 to 90% RH (non-condensing)Certifications/Standards:
FCC, CE, RoHSItem Dimension (L"xW"xH")
14 x 2 x 6
Weight
3.31 lbs
Warranty Information
2 years
Package Contents:
- 1x16 HDMI Splitter with 3D and 4Kx2K
- Power Adapter
- 2 x Mount Kit
- 6 x Screw Kit
- Quick Start Guide
Features
Package Contents:
Yes
China
- 1x16 HDMI Splitter with 3D and 4Kx2K
- Power Adapter
- 2 x Mount Kit
- 6 x Screw Kit
- Quick Start Guide
Environmentally Friendly:
Yes
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Product Material | Metal |
| Weight (Approximate) | 3.31 lb |
| Length | 13.8" |
| Height | 1.6" |
| Width | 5.8" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 16 |
| Video | |
| Maximum Video Resolution | 3840 ? 2160 |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Broadcasts one 4K HDMI source signal to up to 16 4K HDMI displays simultaneously while maintaining video quality Distributes 4K HDMI video and audio signals from a single source to up to 16 4K HDMI displays simultaneously while maintaining signal quality Supports up to UHD 4Kx2K (3840x2160 @30Hz) resolution Supports high definition resolutions of 1080p@ 60Hz, 720p/1080i @120Hz Supports Dolby TrueHD and DTS-HD Master audio formats Sturdy metal housing provides durability and reduces EMI/RFI noise interference Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference delivering reliable performance and long hours of trouble free operation |
| Product Type | Signal Splitter |
| Product Name | 1x16 HDMI Splitter with 3D and 4Kx2K |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H24Q11-S1 |
