siig
SIIG DP Cyber 1S1P PCIe Card JJE20311S1
- SKU:
- 18059304
- MPN:
- 238240
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/13/2026 04:40:04 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $37.09 each 37.09 |
- Stock Update:
- 02/13/2026 04:40:04 AM PST
Description
This item is brand-new, factory sealed.

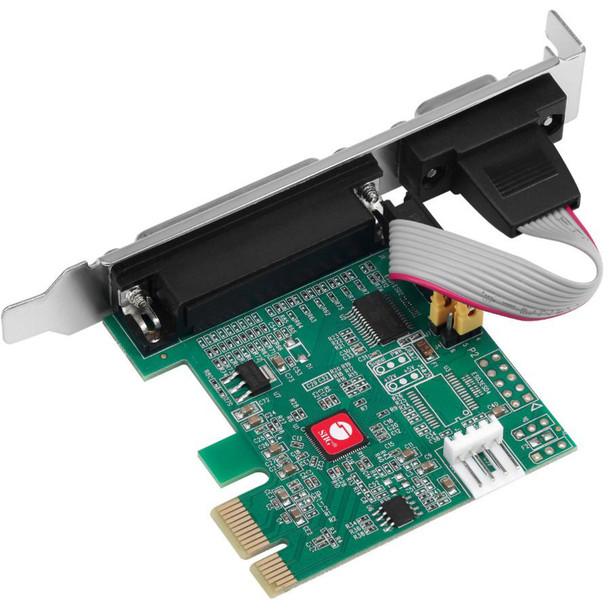

SIIG Single Serial Port/RS-232 and Single Parallel Port PCIe Card Compatible with 16C550 UART (JJ-E20311-S1)- Easily adds one serial port and one parallel port through an available PCI Express slot. 16C650 UART serial port with data transfer rate up to 250Kbps. Compliant with PCI Express 2.0 Gen 1. Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
- Single-lane (X1) PCI Express end-point controller with PHY integrated. Full serial modem control. Hardware and software flow control.
- 5, 6, 7, 8 and 9-bit serial format. Even, odd, none, space and mark parity. On chip 256 byte FIFO buffers in transmit, receive path.
- Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers.Supports PCI bus Power Management Interface Specification Revision 1.2.
- Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets. Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.
- Product Dimensions: 2.9 x 4.7 x 0.7 inches
- Item Weight: 1.6 ounces
- Manufacturer: SIIG
Specifications:
-Chipset: ASIX AX99100
-Compliant with PCI Express Base Specification 2.0
-Compliant with PCIe Bus Power Management Interface Revision 1.2
-Data transfer rate:1) Serial port: Up to 250Kbps 2) Parallel port: Up to 1.5Mbps
-Flow control: Hardware and software
-Serial format: 5, 6, 7, 8 and 9-bit
-Parity: Even, Odd, None, Space, and Mark
-On chip 256 Byte FIFO buffer (Transmit, Receive)
-Serial power output: 0V / 5V / 12V by Jumper. Note: Y-Split power cable connection is required for 5V and 12V output.
-Power consumption: 3W
-System chassis form factor: Full height and Low-profile
System Requirements:
-PCI Express-enabled system with an available PCI Express slot 1x
-Windows 10 / 8 /7
-Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
-Low-profile system installation requires 2 available slot openings
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China
Package Contents:
- DP Cyber 1S1P PCIe Card
- 2 x Low-Profile Bracket
- Y-Split Power Cable
- 2 x Voltage Jumper
- Software CD
- User Manual
Features
- DP Cyber 1S1P PCIe Card
- 2 x Low-Profile Bracket
- Y-Split Power Cable
- 2 x Voltage Jumper
- Software CD
- User Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 1.60 oz |
| Card Height | Full-height |
| Height | 2.9" |
| Width | 4.7" |
| Depth | 0.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of Parallel Ports (External) | 1 |
| Number of Serial Ports (External) | 1 |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Adds one RS-232 serial port and one parallel port to a PCI Express enabled system |
| Product Type | Serial/Parallel Combo Adapter |
| Product Name | DP Cyber 1S1P PCIe Card |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | JJ-E20311-S1 |
| Technical Information | |
| Host Interface | PCI Express 2.0 x1 |
| Platform Supported | PC |
Warranty Information
