SIIG DP USB 3.0 4-Port PCIe Host Card JUP40A11S1
(No reviews yet)
Write a Review
- SKU:
- 18350496
- MPN:
- 239552
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/05/2026 04:55:41 AM PST
- Stock Update:
- 02/05/2026 04:55:41 AM PST
Description
This item is brand-new, factory sealed.

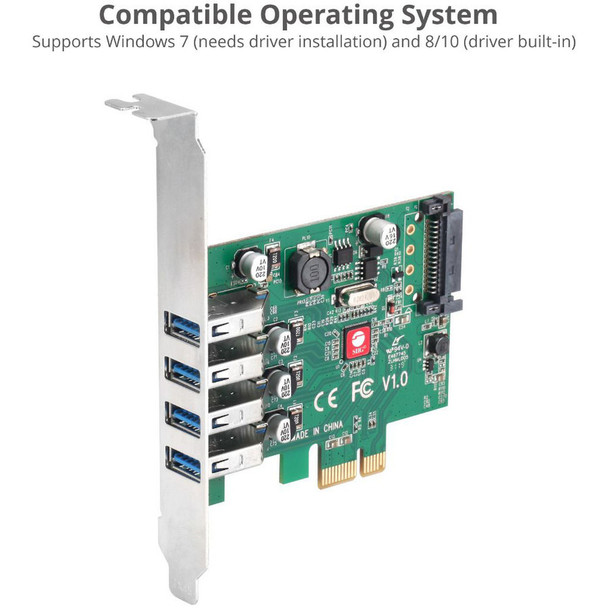

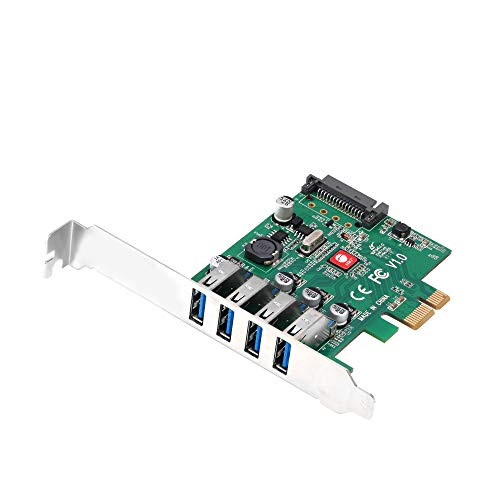

SIIG Dual Profile [DP] USB 3.0 4-Port (5Gbps) PCIe 2.0 Host Expansion Card Adapter for Windows Desktop PC with PCI Express Slot- ?Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system, Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset.
- ?Compliant with USB data transfer rates - Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps)
- ?Compliant with Intels eXtensible Host Controller Interface (xHCI) Revision 1.0 specification & PCI Bus Power Management Interface Specification Revision 1.2 .
- ?Compliant with USB legacy and UASP mode (UASP requires Windows 10 and 8 native USB 3.0 host drivers only, Each USB port features over-current protection to protect your connected device from power surges.
- ?Dual-profile design installs into different system form factor chassis with the included full and low profile brackets
- Product Dimensions: 2.7 x 3.4 x 0.8 inches
- Item Weight: 2.4 ounces
- Manufacturer: SIIG
- Chipset: Renesas uPD720201
- Compliant with USB 3.0 Specification
- Bus connector: PCI Express 1x
- Version: PCI Express 2.0
- USB data transfer rate: Up to 5Gbps
- Per-port over-current protection
- USB power output: Up to 5V/900mA
- Product:
- Dimensions: 3.35" (L) x 0.79" (H) x 2.68" (W)
- Weight: 0.15 lbs
- PCB Color: Green
- Connectors:
- 4x 9-pin USB 3.0 Type A, Female
- 1x 15-pin SATA power connector
- SATA power connection is required
- Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Warranty: 2 years limited
- Country of origin: China
Requirements
- Desktop PC with one available PCI Express (PCIe) slot
- SATA power connection is required
- Windows 10 / 8.x / 7
- Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Package Contents
- DP USB 3.0 4-Port PCIe Host Card
- Low profile bracket
- Driver CD
- Quick Start Guide
Package Contents:
- DP USB 3.0 4-Port PCIe Host Card
- Low Profile Bracket
- Driver CD
- Quick Start Guide
Features
Package Contents:
Yes
PC
Restriction of Hazardous Substances (RoHS)
China
- DP USB 3.0 4-Port PCIe Host Card
- Low Profile Bracket
- Driver CD
- Quick Start Guide
Additional Information:
- DP USB 3.0 4-Port PCIe Host Card
- Low profile bracket
- Driver CD
- Quick Start Guide
Environmentally Friendly:
Yes
Platform Supported:
PC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | External |
| Weight (Approximate) | 2.40 oz |
| Length | 3.4" |
| Product Color | Green |
| Height | 0.8" |
| Width | 2.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Adds four external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCIe enabled desktop computer Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset Compliant with USB data transfer rates - Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps) Compliant with Intel's eXtensible Host Controller Interface (xHCI) Revision 1.0 specification Compliant with USB legacy and UASP mode (UASP requires Windows 10 and 8 native USB 3.0 host drivers only) PCI Bus Power Management Interface Specification Revision 1.2 Dual-profile design installs into different system form factor chassis with the included full and low profile brackets Each USB port features over-current protection to protect your connected device from power surges |
| Product Type | USB Adapter |
| Product Name | DP USB 3.0 4-Port PCIe Host Card |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | JU-P40A11-S1 |
| Media & Performance | |
| UASP Support | Yes |
| Technical Information | |
| Host Interface | PCI Express 2.0 x1 |
