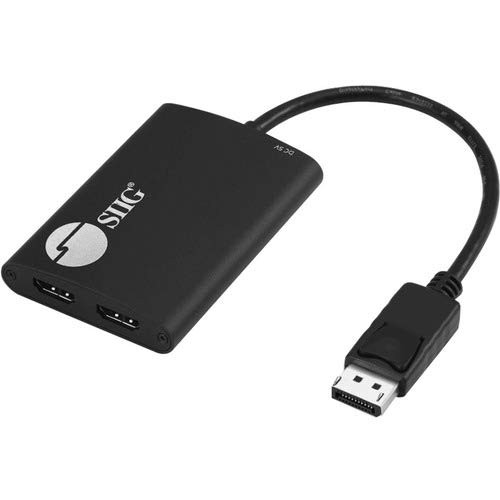

SIIG 4K 1x2 DisplayPort 1.2 to HDMI MST Splitter CEDP0K11S1
(No reviews yet)
Write a Review
- SKU:
- 18213143
- MPN:
- 239554
- Availability:
- Usually ships the same or next business day. In stock at our CA, SC warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/04/2026 06:22:44 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $78.59 each 78.59 |
| Buy 3 | and pay only $76.19 each 76.19 |
| Buy 4 - 6 | and pay only $74.99 each 74.99 |
| Buy 7 | and pay only $73.45 each 73.45 |
| Buy 8 or above | and pay only $71.40 each 71.4 |
- Stock Update:
- 02/04/2026 06:22:44 PM PST
Description
This item is brand-new, factory sealed.
Boost your productivity by connecting two HDMI displays to single DisplayPort 1.2 output with Multi-Stream Transport (MST) technologyProvides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode* with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display Note: Panoramic Video Wall mode requires either a AMD Eyefinity or NVIDIA Surround technology graphics adapter
Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio
Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity or NVIDIA Surround technology**
Plug-n-play, hassle-free set up without complicated hardware or driver installation
Notes:
*Mac OS does not support MST function and will only mirror the displays.
**Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
Chipset:
STDP4320 Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Supports 7.1 Ch audio up to 192kHz sampling rate
Display Modes:
Mirror, Extended, Panoramic video wall
Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode Total Available Bandwidth 21.6Gbps (100%):
3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%), 2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%)
Note: Make sure the total combined resolution bandwidth among all displays does NOT exceed 100%. Product:
DisplayPort cable (embedded): 12.6 inches
Color: Black
Housing: Aluminum
Connector:
1x 20-pin, DisplayPort, Male, Input
2x 19-pin, HDMI, Type A, Female, Output
1x 5-pin, Micro USB, Female, USB power Input
Micro USB power cable:
19 inches
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 20% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L"xW"xH")
1 x 1 x 1
Weight
1.00 LB
Warranty Information
3 years

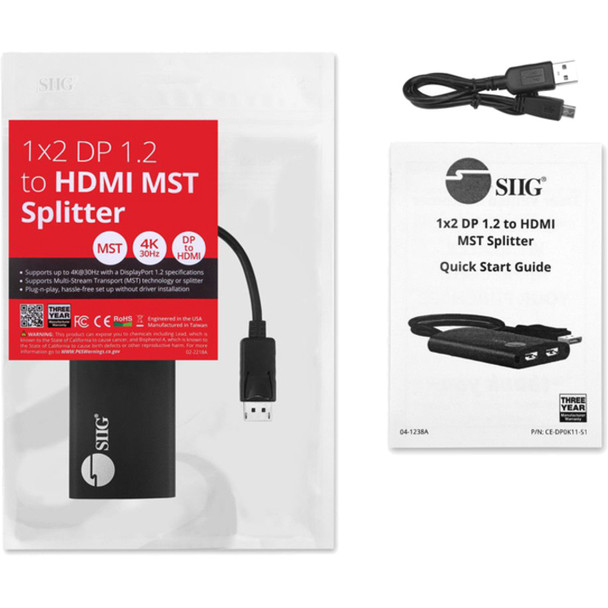

Package Contents:
- 1x2 DP 1.2 to HDMI MST Splitter
- Micro-USB Power Cable
- User Reference Guide
Features
Package Contents:
Yes
Yes
Taiwan
- 1x2 DP 1.2 to HDMI MST Splitter
- Micro-USB Power Cable
- User Reference Guide
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Material | Aluminum |
| Weight (Approximate) | 3.36 oz |
| Length | 3.5" |
| Height | 0.6" |
| Width | 2.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| HDMI Out | Yes |
| DisplayPort | Yes |
| USB | Yes |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 2 |
| Video | |
| Maximum Video Resolution | 3840 ? 2160 |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Allows you to connect 2 HDMI monitors to a single DisplayPort 1.2 port Boost your productivity by connecting two HDMI displays to single DisplayPort 1.2 output with Multi-Stream Transport (MST) technology Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display Note : Panoramic Video Wall mode requires either a AMD Eyefinity or NVIDIA Surround technology graphics adapter Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity or NVIDIA Surround technology Plug-n-play, hassle-free set up without complicated hardware or driver installation |
| Product Type | Signal Splitter |
| Product Name | 1x2 DP 1.2 to HDMI MST Splitter |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-DP0K11-S1 |
