SIIG 4K 1x2 DisplayPort 1.2 to DisplayPort MST Splitter CEDP0H11S1

This item is brand-new, factory sealed.

Features

Boost your productivity by connecting two DisplayPort displays to single DisplayPort 1.2 output with Multi-Stream Transport (MST) technology

Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode* with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display. Note: Panoramic Video Wall mode requires either a AMD Eyefinity or NVIDIA Surround technology graphics adapter

Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio

Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity or NVIDIA Surround technology**

Plug-n-play, hassle-free set up without complicated hardware or driver installation***


Notes:

*Mac OS does not support MST function and will only mirror the displays.

**Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.

***Requires USB power source of at least 5V/300mAChipset:
STDP4320
Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Supports 7.1 Ch audio up to 192kHz sampling rateDisplay Modes:
Mirror, Extend, Panoramic video wallNote:
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall modeTotal Bandwidth 21.6Gbps (100%): 3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%),2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%)Note:
Make sure the total combined resolution bandwidth among all displays DOES NOT exceed 100%.Product:
DisplayPort cable (embedded):
12.6 inchesColor:
BlackHousing:

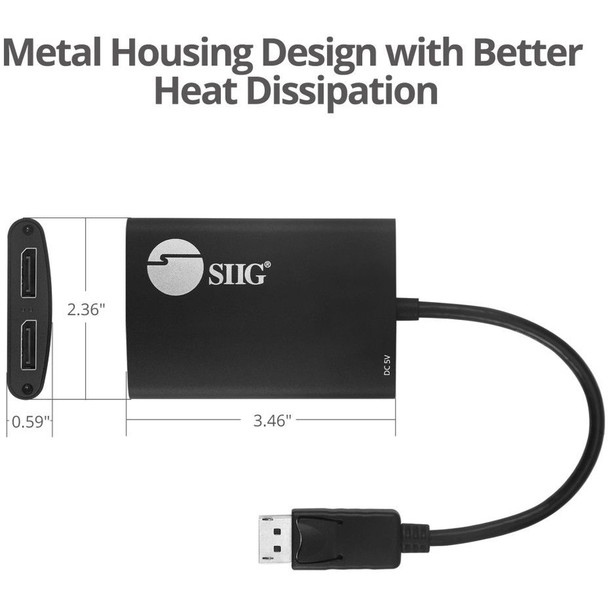

AluminumConnector:
1x 20-pin, DisplayPort, Male, Input
2x 20-pin, DisplayPort, Female, Output
1x 5-pin, Micro USB, Female, power Input (at least 5V/300mA from USB port)Micro USB power cable:
19 inchesEnvironmental conditions:
Operating temperature:
32 to 122 degrees FStorage temperature:
14 to 158 degrees FRelative humidity:
20% to 90% RH (non-condensing)Certifications/Standards:
FCC, CE, RoHS
TAA compliant

System Requirements
Desktop or laptop computer with an available DisplayPort 1.2 MST output
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
USB power source (at least 5V/300mA)Note:
Mac OS does not support MST function and will only mirror the displays.

Package contents
1x2 DP 1.2 to DisplayPort MST Hub
Micro-USB power cable
User Reference Guide



Package Contents:

• 1x2 DP 1.2 to DisplayPort MST Splitter
• Micro-USB Power Cable
• User Reference Guide
