Description
This item is brand-new, factory sealed.
FeaturesExtends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164ft via Cat5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
Note: An extension of over 100ft requires a Cat6 100% copper UTP cable
IR remote control through CAT5e/6 allows you to control the HDMI source device at the extended display location
Built-in HDMI output on the transmitter allows for local monitoring of the extended display
Delivers high-quality audio/video transmission without compression for optimal performance, supports video resolution up to 1080p (Full HD) and 3D

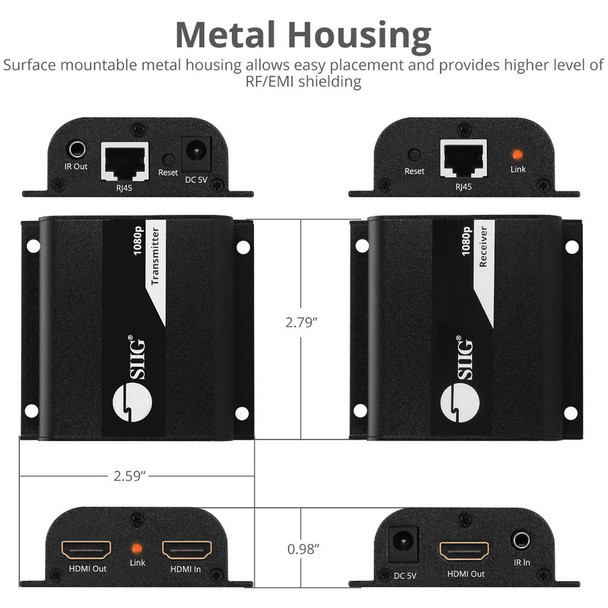

Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
Plug-n-Play installation, no software installation or hardware setup is required
Compatibility:
Replaces CE-H22E11-S1
Specifications
HDMI 1.3 and HDCP 1.2 compatibleSupports resolution: 480p/720p/1080i/1080pTransmission distance: up to 164ft (50m)Note: An extension of over 100ft requires a Cat6 100% copper UTP cableHDMI cable length: up to 2 meters (Input and output)Housing: MetalProducts:
Transmitting unit (TX):Connectors:Input:1x, 19-pin HDMI, Type A, FemaleOutput:1x, 8-pin, RJ451x, 19-pin HDMI, Type A, Female1x, 3.5mm jack, IRReceiving unit (RX):
Connectors:Input:1x, 8-Pin, RJ451x, 3.5mm jack, IROutput:1x, 19-pin, HDMI, Type A, Female
Package Contents:
- Full HD HDMI Extender over Cat5e/6 with IR - 164ft (TX and RX units)
- IR Blaster Cable (TX)
- IR Receiver Cable (RX)
- 2 x Power Adapter
- User Reference Guide
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- Full HD HDMI Extender over Cat5e/6 with IR - 164ft (TX and RX units)
- IR Blaster Cable (TX)
- IR Receiver Cable (RX)
- 2 x Power Adapter
- User Reference Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Transmitter Weight (Approximate) | 3.04 oz |
| Receiver Width | 2.60" |
| Receiver Height | 0.97" |
| Receiver Depth | 2.80" |
| Transmitter Depth | 2.80" |
| Receiver Weight (Approximate) | 2.88 oz |
| Transmitter Height | 0.97" |
| Transmitter Width | 2.60" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Graphics Modes | Full HD |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Extends HDMI signals up to 164ft over a single CAT5e/6 cable with a local HDMI output for monitoring the extended display Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164ft via Cat5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup IR remote control through CAT5e/6 allows you to control the HDMI source device at the extended display location Built-in HDMI output on the transmitter allows for local monitoring of the extended display Delivers high-quality audio/video transmission without compression for optimal performance, supports video resolution up to 1080p (Full HD) and 3D Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life Plug-n-Play installation, no software installation or hardware setup is required Compatibility: Replaces CE-H22E11-S1 More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | Full HD HDMI Extender over Cat5e/6 with IR - 164ft |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H26011-S1 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 164 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
