Siig 245458 Ac Ce-h26111-s1 Full Hd Hdmi Extender With Ir Brown Box

This item is brand-new, factory sealed.

Extends HDMI signals up to 164ft (50m) via a single cost effective CAT5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup. Note: Extension over 100ft requires 100% copper Cat6 cable

Delivers high-quality video/audio transmission without compression for optimal performance, supports video resolution up to 1080p@60Hz (Full HD), and 2-channel stereo audio, compatible with HDCP compliant devices and content, HDMI 1.3 and HDCP 1.2 compliant

IR control allows your HDMI source device to recognize remote commands, you can control the HDMI source device from the remote location of your display device with the included IR cables that transmit signals over Cat cable

Premium metal housing offers excellent heat dissipation, enhances durability, and minimizes EMI/RF interference for long life and dependable performance

Easy installation, no driver installation is required, integrated surface mounting bracket allows secure placement



Notes:

A good quality Cat5e/6 cable is essential in delivering quality content. Cat6 is recommended over Cat5e

STP (Shielded Twisted Pair) cabling is recommended for cable runs over 50ft

This extender pair (TX + RX) is point-to-point connection, it does not work through routers or switchesSpecifications
HDMI 1.3 and HDCP 1.2 compatibleResolutions:
480i/480p/720p/1080i/1080pTransmission distance up to 164ft (50m)Audio support:
2-channel Stereo audioHDMI cable distance:
up to 2M (Input and Output)IR frequency:
Supports 20KHz to 60KHzPower consumption:
Transmitter:
< 2W
Receiver:
< 2WHousing:
MetalColor:
BlackProducts:
Transmitting unit (TX):
Connector:
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, Output
1x 3.5mm phone jack, IR output
1x Reset buttonReceiving unit (RX):
Connector:
1x 8-Pin, RJ45, Input
1x 19-pin, HDMI, Type A, Female, output
1x 3.5mm phone jack, IR input
1x Reset buttonPower adapter:
Input:
100-240VAC
Output:
5V DC, 1A
UL:
E335801, VIEnvironmental conditions:
Operating temperature:
32 to 122 degrees F
Storage temperature:
14 to 158 degrees F
Relative humidity:
5% to 90% RH (non-condensing)Certifications/Standards:
FCC, CE, RoHS

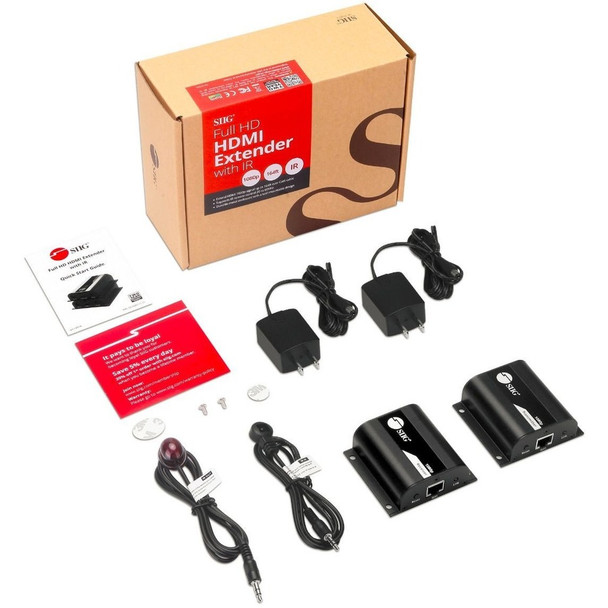

Package contents
Full HD HDMI Extender with IR (1 TX and 1 RX unit)
IR Blaster cable (1pc)
IR Receiver cable (1pc)
Power adapter (2pcs)
User Reference Guide

Item Dimension (L inchxW inchxH inch)
3 x 1 x 3

Weight
1.00lb

Warranty Information
2 Years

Package Contents:

• 1 x Transmitter Unit
• 1 x Receiver Unit
• 1 x IR Blaster Cable
• 1 x IR Receiver Cable
• 2 x Power Adapter
• User Reference Guide
