Siig 245468 Ac Ce-h26a11-s1 Hdmi2.0 To Displayport1.2 Converter With Audio Extractor

This item is brand-new, factory sealed.

High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display. Note: This is not a bi-directional adapter. Does not work for DisplayPort to HDMI conversion

Supports UHD 3840x2160@60Hz (4:4:4 8bit), 4096x2160@60Hz, 1080p@60Hz, 1920x1080@144Hz resolution via EDID management push button, allowing for expanded compatibility with different monitors. Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4

Compliant with HDMI 2.0a, DisplayPort 1.2a and HDCP 2.2

Separate Toslink audio jack and 3.5mm Stereo audio jack, extracts 5.1ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device. Note: The DisplayPort output does not contain audio stream, only one audio output can be connected at a time

Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use

Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility

Plug & Play Installation - No driver or software installation required



Notes:

This is not a bi-directional adapter. Does not work for DisplayPort to HDMI conversion

The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4

The DisplayPort output does not contain audio stream

Only one audio output, Toslink audio jack or 3.5mm Stereo audio jack, can be connected at a time

Not compatible with G-Sync and FreeSync monitors SpecificationsCompliant with HDMI 2.0a and DisplayPort 1.2a specificationsCompliant with HDCP 1.4 and 2.2Supports xvYCC, x.v.Color and Deep ColorSupports 4K2K at 60Hz 4:4:4 8bitsSupports 8-bit, 10-bit, and 12-bit Deep ColorVideo bandwidth:
18Gbps (single-link 600MHz)Resolution support:
720p/1080i/1080p/2160pResolution up to 3840 x 2160 at 60Hz (4:4:4 8bit)Supports audio extraction via 3.5mm Stereo jack or Toslink 5.1ch (only one audio output can be used at a time) Supported audio formats:
HDMI:
PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1
Toslink:
PCM2.0 and Digital 5.0
Stereo 3.5mm:
PCM2.0 ESD protection:
+/-15kV Air / +/-8kV Contact
Metal housing with wall mount design Supports transmission distance (cable length):
4K at 60Hz:
Up to 10m (5m/In, 5m/Out)
1080p and 4K at 30Hz:
Up to 15m (5m/In, 10m/Out) EDID mode indicator LED:
Red:
3840x2160 at 60Hz
Green:
4096x2160 at 60Hz
Blue:
1080p at 60Hz
Yellow:
EDID learning, support 1920x1080 at 144Hz, 120Hz, 100Hz Product:
Color:
Black Housing material:
Metal Connector:
1x 19-Pin, HDMI, Type A, Female, Input
1x 20-Pin, DisplayPort, Female, Output
1x S/PDIF (Toslink), Audio, Output
1x 3.5mm, phone jack, Stereo audio, Output
1x 5-Pin, Micro USB, Female, Power Input
1x Push button, EDID selection Power adapter:
Input:
100-240VAC, 50/60 Hz
Output:
DC5V/2A
UL listed:
135856/Level: VI Environmental conditions:
Operating temperature:
32 to 104 degrees F
Storage temperature:
-4 to 140 degrees F
Relative humidity:
20 to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS

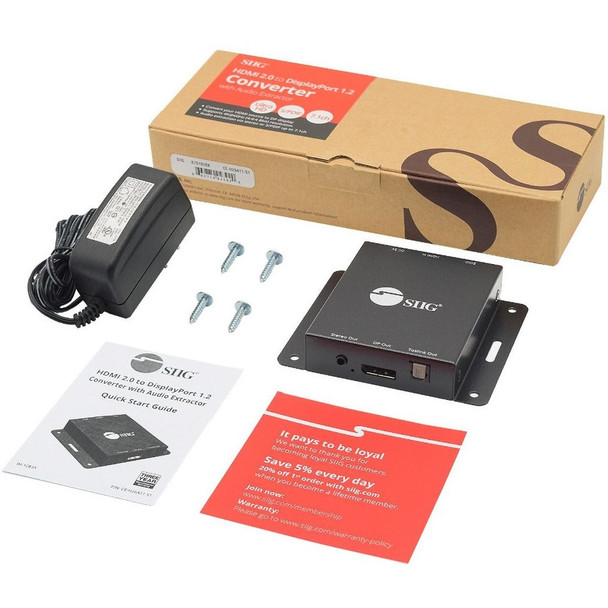

Package Contents:

• HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
• Power Adapter
• 2 x Screw Kit
• Quick Start Guide

Features

Package Contents:

• HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
• Power Adapter
• 2 x Screw Kit
• Quick Start Guide



TAA Compliant:
Yes



Country of Origin:
Taiwan



Specs

Physical Characteristics
Form Factor	Wall Mountable
Weight (Approximate)	0.38 lb
Height	0.8"
Width	3.4"
Depth	2.8"
Warranty
Limited Warranty	3 Year
Interfaces/Ports
USB	Yes
DisplayPort	Yes
HDMI	Yes
Audio Line Out	Yes
General Information
Brand Name	SIIG
Manufacturer Website Address	http://www.siig.com
Product Type	Signal Converter
Product Name	HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
Manufacturer	SIIG, Inc
Manufacturer Part Number	CE-H26A11-S1
Technical Information
Maximum Resolution	3840 x 2160
Functions	Signal Conversion Audio Extraction
