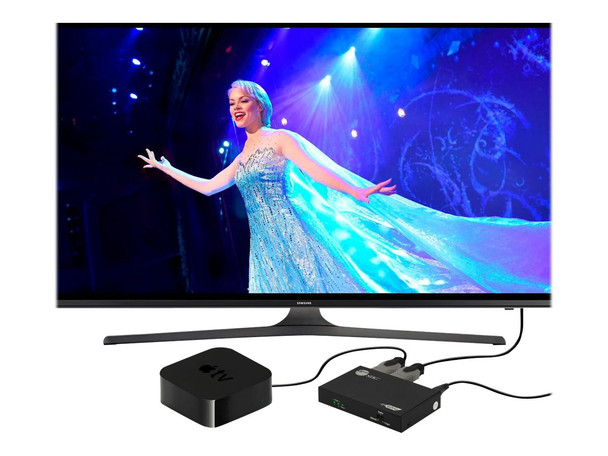

SIIG 2 Port HDMI 2.0 4K @60Hz HDR Splitter with EDID & Downscaler CEH26B11S1

This item is brand-new, factory sealed.

Features

o Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality

o Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth

o Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bits Deep Color, Dolby Vision, and LPCM 7.1, Dolby TrueHD, Dolby digital Plus, Dolby Atmos, and DTS-HD Master Audio

o Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz

o High quality materials with metal housing extend the stability and durability, allowing for long hours of operation.

o Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility

o Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable and reliable performance and long life span

o Individual LED indicators for power and signal allow for easy and quick status recognition

Notes:

o 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz

o EDID Copy and Auto mode supports 4K downscaling to 1080p

o For HDCP 2.2 protected 4K source signals, if the TV supports HDCP 2.2 it will display at 4K resolution, otherwise, the TV will display at 1080p

o HDR, Dolby Vision, Dolby Atmos and 7.1ch supported via EDID Copy mode only
Compliant with HDMI 2.0a, HDCP 2.2/1.4
Supports resolution:
480p/720p/1080i/1080p/ HDR 4K2K at 60 (4:2:0 10bits) / 4K2K at 60 (4:4:4 8bits)
Video bandwidth:
Up to 18Gbps (single-line 600MHz)
Audio Support:
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM
HDMI cable distance:
Up to 10 meters for 4K at 60Hz (YUV 4:4:4 8bits) (Input 5m + Output 5m)
LED indicators for power and video signal status
EDID management:
Copy EDID: The display connected to Output 1 has priority over the display connected to Output 2. Recommended to connect the monitor with the highest resolution to Output 1 for the best performance/compatibility
Auto EDID: Default 3840x2160 at 60Hz
Mixed EDID: Uses the lowest resolution/audio capabilities of the connected displays
Note: HDR source signal only supports Copy EDID and Mixed EDID settings
Product:
Color: Black
Housing: Metal
Connectors:
1x 19-Pin, HDMI, Type A, Female, Input
2x 19-pin, HDMI, Type A, Female, Output
1x 5-pin Micro USB, Female, Power / Firmware update
1x 3-pin DIP switch, EDID control
Power Adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V/1A
UL: E504312 level: VI
Environmental conditions:
Operating temperature: 23 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS Item Dimension (L"x W"x H")
4 x 1 x 3
Weight
1.00 LB
Warranty Information
2 Years


Package Contents:

• 2 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
• Power Adapter with Micro USB Cable
• Quick Start Guide
