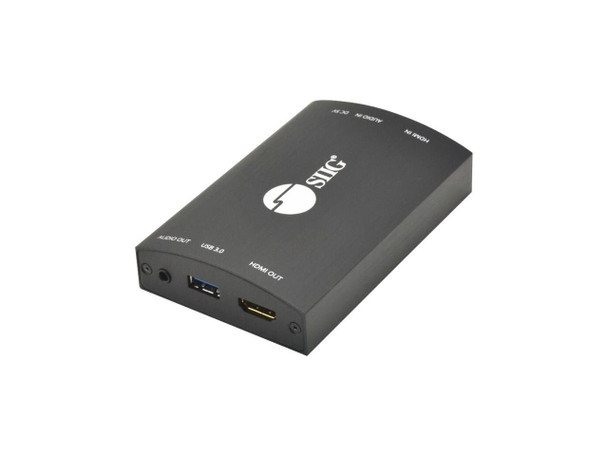

SIIG USB 3.0 HDMI Video Capture Device with 4K Loopout CEH26H11S1

This item is brand-new, factory sealed.

• Professional like HDMI capture device with audio embedding through USB 3.0 connection from your PC system Utilizes USB 3.0 interface for high-speed transmission
• Allows capture and record in 1080p while viewing at 4K@60Hz YUV 4:4:4 simultaneously. This device saves you the cost and hassle of buying a splitter to play and capture at the same time. 4K HDR is NOT supported on the HDMI loop-out
• Great for on-line meetings, training, gaming, and live broadcast Compatible with most 3rd party software such as OBS Studio and AMCap
• Compatible with Windows 7/8.1/10 and Mac Mixed audio support from Line-in and HDMI with HDMI audio extraction to connect analog stereo speakers
• Support video capture and record up to Full HD resolution up to 1920 x 1080p@60 fps Supports HDMI resolution downscaling from 4K to 1080p

• Product Dimensions: 2.68 x 4.13 x 0.94 inches
• Item Weight: 4.5 ounces

Specifications:
Chipset: IT6663FN
HDMI Bandwidth: Single-link 600MHz (18Gbps)
Video Bandwidth: Up to 350MBps (USB 3.0)
Input resolution: Up to 4K@60Hz YUV 4:4:4
Recording mode: H.264 (Software compression)
Recording video format: YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0)
Software compatibility: OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)VLC (OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
ESD protection: Human body model 15KV (air-gap discharge); 8KV (contact discharge)
Product:
Dimensions: 4.13" (L) x 0.94" (W) x 2.68" (H)
Weight: 0.28 lbs
Color: Black
Housing material: Aluminum
Connectors:
1x 19-pin HDMI, Female, Input
1x 19-pin HDMI, Female, Loop-out
1x 9-pin USB 3.0, Type-A, Female, To PC system
1x 3.5mm jack, Audio, Input
1x 3.5mm jack, Audio, Output
1x 5-pin, Micro USB, Power jack
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 5V/2A
UL Listed: E135856 /Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
TAA compliant
Country of origin: Taiwan

System Requirements:
Desktop PC with one available USB 3.0 port
Windows 10 / 8.1 / 7
MacOS and Linux

Package contents:

USB 3.0 HDMI Video Capture Device with 4K Loopout
USB 3.0 A to A cable
Power adapter
Quick start guide

• USB 3.0 HDMI Video Capture Device with 4K Loopout
• USB 3.0 A to A Cable
• Power Adapter
• Quick Start Guide
