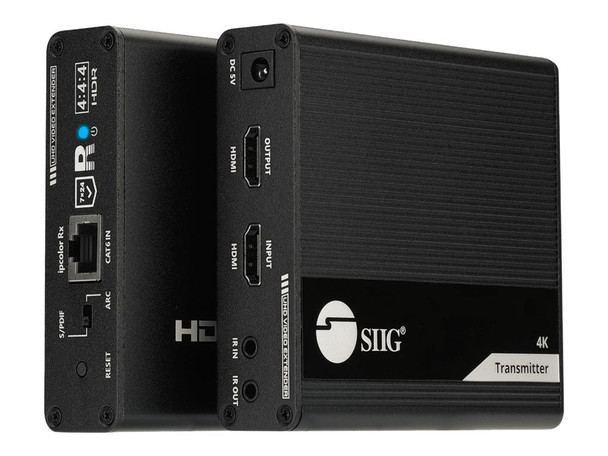

SIIG 250515 4K HDMI Extender Daisy Chain Transmission Kit

This item is brand-new, factory sealed.

4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable

Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency

Multiple Transceiver Extension - Supports daisy chain up to 10 transceivers to further extend HDMI signal up to 165ft to each transceiver

Note: Additional Transceivers, part# CE-H26N11-S1, sold separately

Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the transceiver's digital Toslink port, supports PCM, Dolby 5.1, DTS 5.1 audio output signal

ARC - Connects through the Toslink optical port of the transceiver to the display's ARC sink

IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa, IR blaster and receiver cables included

Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s)

Protection - Protection, Surge Protection, ESD Protection

High Quality Design - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

Easy Installation - Plug and play installation, no driver installation required

Compatibility Notes:

Does not work with routers or switches

Daisy chain connection requires additional Transceivers, part# CE-H26N11-S1, sold separately Compliance:
HDMI 2.0 and HDCP 2.2 Resolution:
Up to 3840x2160 at 60Hz, HDR YUV 4:2:0 10bit ipcolor Transmission protocol:
Latency: Zero
Signal compression: None Audio:
HDMI input: PCM 2/5.1/7.1, Dolby, DTS 5.1
Toslink output: PCM2, DTS 5.1, Dolby 5.1 Transmission distance:
One-to-One connection:
4K at 60Hz: Up to 40m via Cat5 cable
4K at 60Hz: Up to 70m via Cat6/6a/7 cable
One-to-Many (daisy chain) connection:
4K at 60Hz: Up to 165ft to each transceiver via Cat6/6a/7 cable
Additional Transceivers, part number CE-H26N11-S1, sold separately Daisy chain:
Up to 10 Transceivers, part number CE-H26N11-S1, sold separately
Transmission distance: Up to 165ft to each transceiver Connection topology:
One-to-One: 1 Transmitter to 1 Transceiver
One-to-Many (daisy chain): 1 Transmitter to up to 10 Transceivers
Additional Transceivers, part number CE-H26N11-S1, sold separately IR remote control:
20-60Hz frequency range Product:
Color: Black
Housing: Aluminum with Plastic
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x19-pin HDMI, Type A, Female, Loop out
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, Output
1x Reset button
1x Power jack
Transceiver unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 8-pin RJ4, Input
1x 8-pin RJ45, Output (for Daisy Chain connection)
1x S/PDIF Toslink, Audio and ARC
1x Slide switch, (S/PDIF or ARC)
1x Reset button
1x Power jack Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI Environmental conditions:
Operating temperature: 14 to 140 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Compatibility Notes:
Does not work with routers or switches
Daisy chain connection requires additional Transceivers, part number CE-H26N11-S1, sold separately Item Dimension (L"x W"x H")
5 x 2 x 4
Weight
1.00 LB
Warranty Information
2 Years

Package Contents:

• ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit (1 Transmitter + 1 Transceiver)
• 2 x Power adapter
• 1 x IR Blaster cable
• 1 x IR Receiver cable
• 8 x Mounting ears
• Hardware kit
• User Manual
