SIIG 250516 4K HDMI Extender Daisy Chain Transceiver

This item is brand-new, factory sealed.

• Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency
• Daisy Chain Extension - Supports daisy chain connection of up to 10 transceivers to further extend HDMI signal up to 165ft to each transceiver Note: Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, sold separately Audio Extraction - Extracts and routes digital audio from the HDMI signal through the transceiver's digital Toslink port, supports PCM, Dolby 5.1, DTS 5.1 audio output signal
• ARC - Connects through the Toslink optical port of the transceiver to the display's ARC sink IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa, IR blaster and receiver cables included
• Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s) Protection - Protection, Surge Protection, ESD protection
• High Quality Construction - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operationEasy Installation - Plug and play installation, no driver installation required

• Product Dimensions: 3.9 x 4.17 x 1.03 inches
• Item Weight: 4.18 pounds

Specifications:
Compliance: HDMI 2.0 and HDCP 2.2
Resolution: Up to 3840x2160 @60Hz, HDR YUV 4:2:0 10bit
ipcolor Transmission protocol:
Latency: Zero
Signal compression: None
Audio:
HDMI input: PCM 2/5.1/7.1, Dolby, DTS 5.1
Toslink output: PCM2, DTS 5.1, Dolby 5.1
Transmission distance:
One-to-One connection: Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, sold separately
4K@60Hz: Up to 40m via Cat5 cable
4K@60Hz: Up to 70m via Cat6/6a/7 cable
One-to-Many connection (daisy chain): Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, sold separately
4K@60Hz: Up to 165ft to each transceiver via Cat6/6a/7 cable
Daisy chain:
Up to 10 Transceivers
Transmission distance: Up to 165ft to each transceiver
Connection topology:
One-to-Many (daisy chain): 1 Transmitter* to up to 10 Transceivers
*Note: Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, sold separately
IR Remote Control: 20-60Hz Frequency Range
Product:
Color: Black
Housing: Aluminum with Plastic
Transceiver unit (RX):
Dimensions: 4.17" (L) x 1.03" (H) x 3.90" (W)
Weight: 0.46 lbs

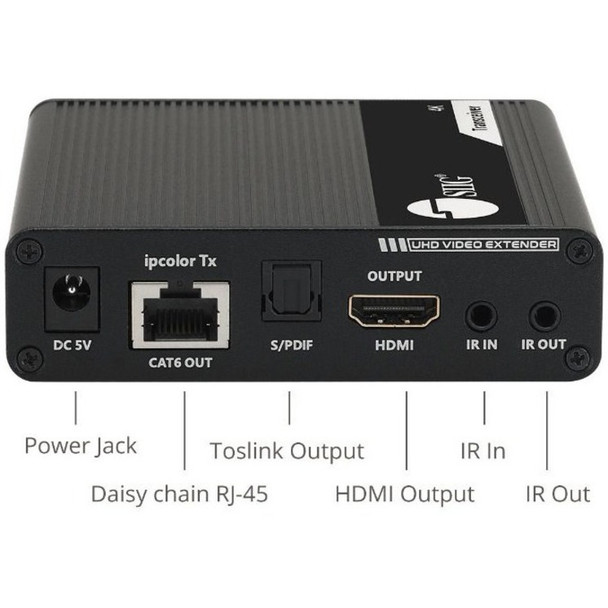

Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 8-pin RJ4, Input
1x 8-pin RJ45, Output (for Daisy Chain connection)
1x S/PDIF Toslink, Audio & ARC
1x Slide switch, (S/PDIF or ARC)
1x Reset button
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 14 to 140 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years lim

• ipcolor 4K HDMI 2.0 Extender Daisy Chain Transceiver
• 1 x Power Adapter
• 1 x IR Blaster Cable
• 1 x IR Receiver Cable
• 4 x Mounting Ears and installation hardware
• User Manual
