Siig 250518 Ac Ce-sd0j11-s1 3g-sdi To Hdmi Converter With Scaler And Monitor Taa

This item is brand-new, factory sealed.

• Conversion: 3G/HD/SD SDI signal to HDMI with resolution up to 1080p. This is not a bi-directional converter, DOES NOT work for HDMI to SDI conversion
• 3G-SDI: 1080p @60/59.94/50Hz; HD-SDI: 1080i @60/59.94/50Hz, 720p @60/59.94/50Hz; SD-SDI: NTSC @59.94Hz, PAL @50Hz
• SDI Cable Runs: 3G-SDI (300ft), HD-SDI (500ft), SD-SDI (1000ft). Bit rate support: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270Mbps
• Advanced Features: SDI loop-out for a 3G/HD/SD-SDI monitor/display connection, audio extraction to stereo audio output (2Ch), noise reduction and video enhancement, Video H/V mirror, output test pattern display screen, and active video area adjustment
• High Quality Components: Made in Taiwan, TAA, FCC, CE and RoHS compliant. Metal housing with ESD protection

• Product Dimensions: 3.23 x 6.3 x 0.98 inches
• Item Weight: 8.3 ounces

Specifications:

SDI standards: SD-SDI, HD-SDI, and 3G-SDI
Input video bandwidth: 2.970 Gbps, 2.970/1.001 Gbps
Output video bandwidth: 165MHz
Supported video resolution:
3G-SDII:
720p@60/59.94/50Hz
1080i@60/59.94/50Hz
1080p@30/24Hz
SD-SDI:
NTSC @ 59.94Hz
PAL @ 50Hz
HDMI output: Up to 1080p@60Hz
Cable length:
3G-SDI: up to 90m (300ft)
HD-SDI: up to 150m (500ft)
SD-SDI: up to 300m (1000ft)
Audio output
3.5mm: 2Ch Stereo
HDMI: PCM 7.1 CH
ESD protection: 19kV Air & 12kV Contact; Core chipset: 2kV
Product:
Dimensions: 6.30" (L) x 0.98" (H) x 3.23" (W)
Weight: 0.52 lbs
Color: Black
Housing material: Metal
Connector:
1x BNC (SDI), Female, Input
1x BNC (SDI), Female, Loop-out
1x 3.5mm Audio, Input
1x 19-Pin HDMI, Type A, Female, Output
1x 3.5mm, Stereo audio, Output
1x 5-pin Micro USB, FW update
1x 3.5 LCD monitor
3x Buttons for OSD/audio selection
1x Power jack
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 5V/2A
UL Listed: E253376 /Level:VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
TAA compliant
Warranty: 3 years limited
Country of origin: Taiwan

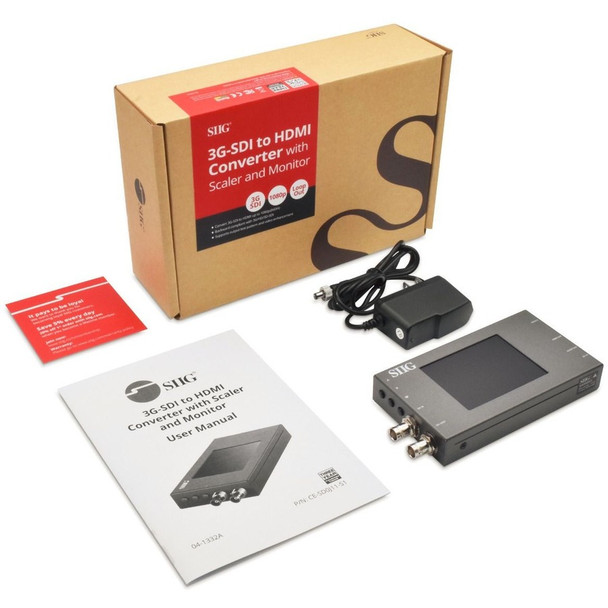

Package contents:

3G-SDI to HDMI Converter with Scaler and Monitor
Power adapter 5VDC/2A
Installation guide

• 3G-SDI to HDMI Converter with Scaler and Monitor
• Power Adapter 5VDC/2A
• Installation Guide
