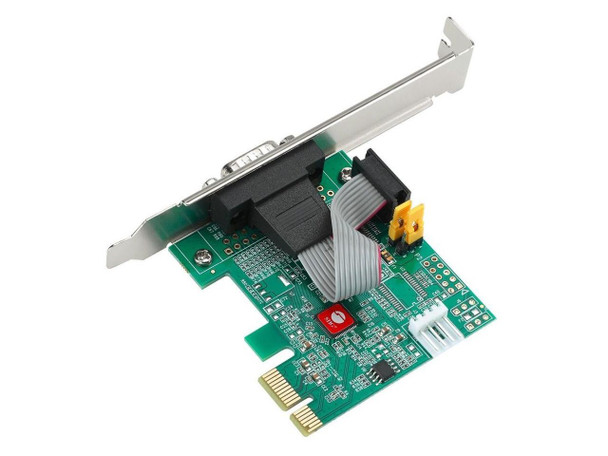

SIIG DP Cyber RS-232 1S PCIe Card - 250Kbps JJE20611S1
(No reviews yet)
Write a Review
- SKU:
- 18029410
- MPN:
- 251439
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/10/2025 05:40:35 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $39.41 each 39.41 |
| Buy 3 | and pay only $37.12 each 37.12 |
| Buy 4 | and pay only $35.04 each 35.04 |
| Buy 5 - 9 | and pay only $34.36 each 34.36 |
| Buy 10 or above | and pay only $33.04 each 33.04 |
- Stock Update:
- 12/10/2025 05:40:35 PM PST
Description
This item is brand-new, factory sealed.
SIIG Single Serial PCIe Card Adapter, 16650 UART, Baud Rates up to 250Kbps, PCIe 2.0 x1 to 1x RS-232 Male 9-pin DB9, RS-232 5V or 12V Power, ASIX AX99100 Chipset, Dual-Profile Brackets (JJ-E20611-S1)- Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers, supports data transfer rate up to 250Kbps,Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated; Full serial modem control with hardware and software flow control; Supports 5, 6, 7, 8 and 9-bit serial formats, and Even, Odd, None, Space and Mark parity; On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2; Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets; Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
- Product Dimensions: 4.72 x 2.87 x 0.71 inches
- Item Weight: 1.6 ounces
- Manufacturer: SIIG
- Chipset: ASIX AX99100
- Compliant with PCI Express Base Specification 2.0
- Bus type: One Lanes (x1) PCI Express
- Supports transfer rate: Serial port up to 250Kbps,
- Supports Hardware, Software Flow Control
- Supports 5, 6, 7, 8 and 9-bit Serial format
- Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
- Serial power output: 0V / 5V / 12V by Jumper
- Power consumption: 3W
- Form Factor: Dual-profile bracket (full & low profile)
- Product:
- Dimensions (with full height bracket): 4.72" (W) x 0.71" (H) x 2.87" (D)
- Weight: 0.10 lbs
- Color: Green
- Connector
- 1 x 9-pin RS-232 Serial, Male
- 1 x 4-pin, Molex mini power connector
- Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 5 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Warranty: 2 years limited
- Country of origin: China
System Requirements:
- PCI Express-enabled system with an available PCI Express slot 1x
- Windows 7 / 8.1 / 8 / 10
- Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Package Contents:
- DP Cyber 1S PCIe Card
- Low profile bracket
- Y-Split power cable
- Voltage Jumper(2)
- Software CD
- User manual
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- DP Cyber 1S PCIe Card
- Full Height Bracket
- 1 x Low Profile Bracket
- 1 x Y-Split Power Cable
- 2 x Voltage Jumper
- Software CD
- User Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 1.60 oz |
| Card Height | Full-height/Low-profile |
| Height | 0.7" |
| Width | 2.9" |
| Depth | 4.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 1 |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Add one 16650 RS232 port to your PCI Express system Features Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers One 16C650 UART serial port supports data transfer rate up to 250Kbps Compliant with PCI Express 2.0 Gen 1 Single-lane (x1) PCI Express End-point Controller with PHY integrated Full serial modem control with hardware and software flow control Supports 5, 6, 7, 8 and 9-bit serial formats Supports Even, Odd, None, Space and Mark parity Supports on chip 256-byte FIFO buffers in transmit and receive path Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers Supports PCI Bus Power Management Interface Specification Revision 1.2 Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets Installs into any PCI Express slot of any lane width Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc |
| Product Type | Serial Adapter |
| Product Name | DP Cyber 1S PCIe Card |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | JJ-E20611-S1 |
| Technical Information | |
| Host Interface | PCI Express 2.0 x1 |
| Platform Supported | PC |
