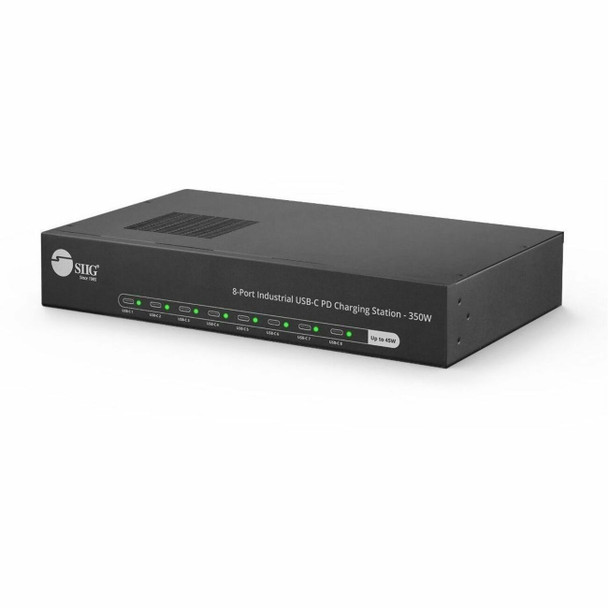

Siig 304870 Ac Id-us0e11-s1 8-port Industrial Usb-c Pd Charging Station 350w

This item is brand-new, factory sealed.

Overview

Delivering a total output of 350W, with up to 45W per port, this charger efficiently powers up to eight USB-C devices simultaneously, including smartphones, tablets, and ultrabooks. Supporting PD 2.0/3.0 fast charging standards and featuring a UL-certified Mean Well power supply, it ensures safe and reliable performance. An automatic cooling system maintains optimal temperature during heavy use, while the durable metal housing and rack-mountable design make it perfect for schools, offices, workshops, service centers and more

Features

High-Efficiency Multi-Device USB-C Charging Solution

Charge up to 8 USB-C devices simultaneously - including smartphones, tablets, laptops, and more

Supports Power Delivery (PD) 2.0 & 3.0 fast charging for rapid and reliable performance

Delivers up to 45W per port with voltage options of 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/2.25A

Safe. Stable. Certified

Powered by a 350W built-in Meanwell UL-certified power adapter for exceptional quality and durability

Advanced protection against over-voltage, under-voltage, short circuit, over-current, and over-temperature conditions

Ensures consistent, worry-free charging for every connected device

Smart Cooling & Energy Efficiency

Automatic fan control activates cooling only when needed - maintaining optimal temperature and minimizing noise

Integrated power switch with LED indicator makes it easy to control power and conserve energy

Industrial-Grade Construction

Crafted from full-metal housing for superior heat dissipation and long-term durability

Rack-mountable design fits perfectly into any standard 19-inch equipment rack

Ideal for industrial, commercial, and enterprise useSpecifications
Input:
AC Voltage: 115VAC
Frequency: 50Hz/60Hz
AC Current: 6.8A/115VAC, 3.4A/230VAC
Internal Power Supply: 350W/24V
Output:
USB Port: 8x USB-C, Female
PD Output Power: 45W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A)
Efficiency: VIN equal 24V, VOUT equal 5V/3A, Conversion Efficiency: 92%
USB-C Protocol:
Supports 5V/ 9V/ 12V/ 15V/ 20V Voltage output
Supports PD 2.0/ PD 3.0
PPS support 3 to 16V, 20mV/step Voltage output
Output Specification:
Supports USB-C PD output
Supports BC 1.2_DCP, Apple protocol
Supports Qualcomm QC 3.0
Supports Fast Charging protocol FCP and AFC (Max. 12V)
LED Charging Mode
High power current charging in progress: RED led color x 8
Power on or low current charging: Green led color x 8
Output Overvoltage Protection: Protection type: Hiccup mode, recovers automatically after fault condition is removed
Environmental Conditions:
Operating Temperature: 14 to 131 degrees F
Storage Temperature: -4 to 158 degrees F
Relative Humidity: 20% to 90% RH (non-condensing)
Working Altitude: Less than 2km
Certifications/Standards: FCC, CE, RoHs, UL
UL: E183223
Country of origin: China
Product:
Color: Black
Housing Material: Metal case with mounting kits
Connectors:
1x AC Power Jack
1x Power Switch
8x USB-C, Female, PD up to 45WPackage contents
1x 8-Port Industrial USB-C PD Charging Station - 350W
1x Power cord
2x Mounting Bracket
8x Screws
1x User ManualItem Dimension (L"xW"xH")
23 x 11 x 3

Weight
7.43 lbs

Warranty Information
2 years limited

Package Contents:

• 8-Port Industrial USB-C PD Charging Station - 350W
• 1 x Power Cord
• 2 x Mounting Bracket
• 8 x Screws
• 1 x User Manual
