SIIG 4K 60HZ HDMI over IP Matrix Kit (ce-h28a11-s1)

This item is brand-new, factory sealed.

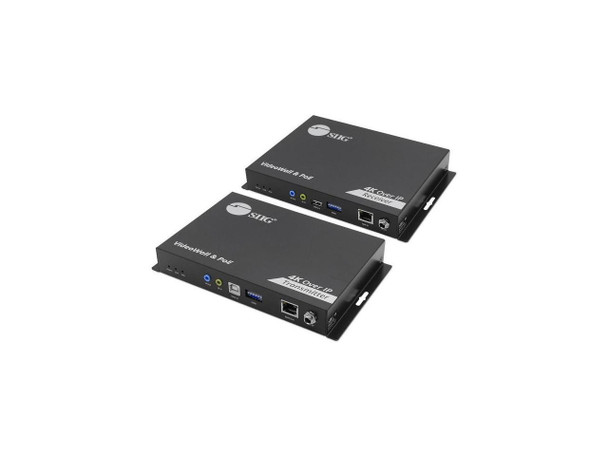

HDMI over IP Matrix Kit, extends 4K@60Hz HDMI signal up to 396Ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, TX (CE-H27F11-S1), RX (CE-H27G11-S1)


Features

Flexible matrix function to extend HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations


Highly Scalable

Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional transmitter unit (CE-H27F11-S1) and receiver unit (part#- CE-H27G11-S1) are sold separately

*Note: IGMP Gigabit Switch is recommended for best performance and reliability


PoE Technology

Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required

Long Distance

This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch


4K UHD Resolution

Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, HDR 10, Deep Color and 3D. Image rotation supports clockwise 90, 180, and 270 in video wall only

*Note: Video wall, ARC, KVM and audio embedded functions must use with SIIG HDMI Smart Controller (Part# CE-H25411-S2) Video
HDMI
1x input, 1x output Resolution
4K (4096x2160)/4K (3840x2160)/1080p/1080i/720p/480i/480p 60Hz, HDCP 2.2, 4:4:4, HDR 10 Image rotation
90^o, 180^o, and 270^o clockwise in video wall mode
- need to be enabled by the controller (part Number CE-H25411-S2) Bandwidth
Up to 18Gbps Transport Protocol
TCP/IP protocol
Audio/video digital connection transmission protocol Audio
7.1-ch surround sound from HDMI port, audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1
5.1-ch surround sound from S/PDIF port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
2-ch stereo audio from 3.5mm audio jack, audio format: PCM 2.0
- S/PDIF and microphone input ports need to be enabled by the controller (part Number CE-H25411-S2) IR Pass-through
Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display
Full frequency: 20KHz to 60KHz Power
Power adapter
AC 100-240V/50-60Hz, Output: DC 5V/2A, UL listed: E135856/Level: VI
PoE (Power over Ethernet)
48V Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 140 degrees F
Relative humidity:
5% to 90% RH (non-condensing) Product Info
Transmitter unit (TX)
Color:
Black
Housing material:
Metal (Housing with wall mount design)
Receiver unit (RX)
Color:
Black
Housing material:
Metal (Housing with wall mount design) Certifications/Standards
FCC, CE, RoHS 2.0, REACH, TAA compliant Interface
Transmitter unit (TX):
1x 19-pin, HDMI, Female (input)
1x 4-pin, USB 2.0 Type-B, for WebCam (for Host)
1x 4-pin, USB 2.0 Type-B, for KM or USB devices (for Host)
1x 3.5mm infrared jack, IR receiver (input)
1x 3.5mm infrared jack, IR emitter (output)
1x 8-pin, Gigabit Ethernet, RJ45 (output)
1x 6-pin, DIP switch for video channel selection
1x S/PDIF (Toslink) digital audio (output)
- need to be enabled by the controller (part Number CE-H25411-S2)
1x 3.5mm phone jack for microphone (input)
- need to be enabled by the controller (part Number CE-H25411-S2)
1x 3.5mm phone jack for audio (output)
1x 9-pin, RS-232, serial port for control (input)
1x DC power jack, 5V/2A Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
1x 4-pin, USB 2.0 Type-A, for webcam connection only
2x 4-pin, USB 2.0 Type-A, for USB devices
2x 4-pin, USB 1.1 Type-A, for Keyboard and mouse
1x 3.5mm infrared jack, IR receiver (input)
1x 3.5mm infrared jack, IR emitter (output)
1x 8-pin, Gigabit Ethernet, RJ45 (input)
1x 6-pin, DIP switch for video channel selection
1x S/PDIF (Toslink) digital audio (input)
- need to be enabled by the controller (part Number CE-H25411-S2)
1x 3.5mm phone jack for microphone (input)
- need to be enabled by the controller (part Number CE-H25411-S2)
1x 3.5mm phone jack for audio (output)
1x 9-pin, RS-232, serial port for control (input)

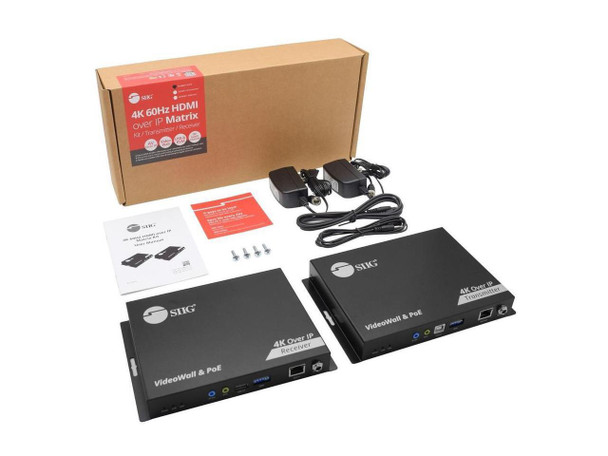

1x DC power jack, 5V/2A Package contents
1x 4K 60Hz HDMI over IP Matrix Kit
1x 3.5mm IR emitter extension cable
1x 3.5mm IR receiver extension cable
2x DC power adapter, 5V/2A
1x Mounting kit
1x User reference guideItem Dimension (L inchxW inchxH inch)
15 x 4 x 7

Weight
4.00 lb

Warranty Information
3 years limited
