SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support (ce-h27811-s1)

This item is brand-new, factory sealed.

Features

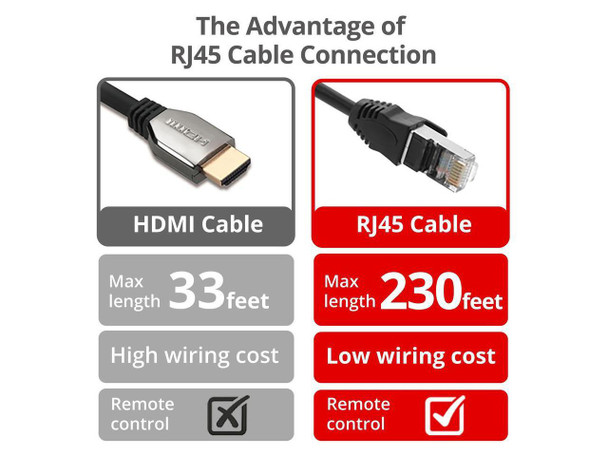

Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency

Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system

Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1

The transmitter's HDMI loop-out allows for local monitoring of the extended display

The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device

protection, surge protection, ESD protection

Plug and play, no driver installation required

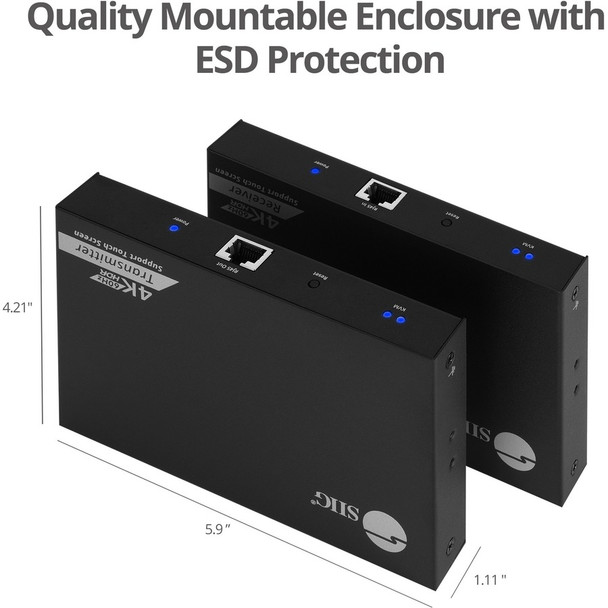

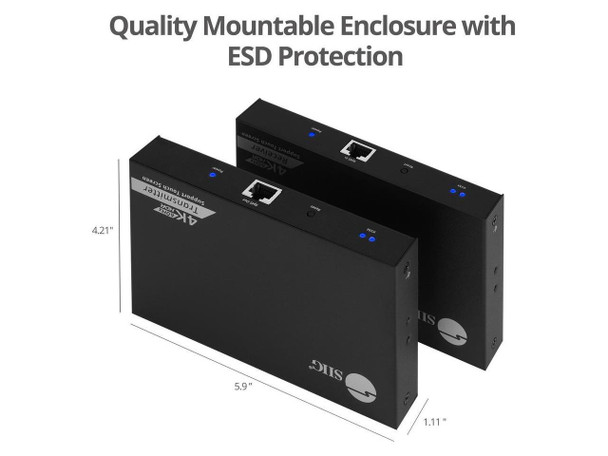

High quality metal housing improve heat dissipation and ensure system stability during long hours of operation


Multiple Connectivity Ports

Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)


Applications

Lecture hall

Educational facilities

Multimedia education

Home theater

Restaurant

Shopping center

Digital signage

Meeting room

Trade show

Library

Show room

Church Compliant with HDCP 2.2 Resolution:
Up to 3840x2160 at 60Hz, 2160p / 1080p / 1080i / 720p / 480p HDMI Audio format:
PCM 2/5.1-ch, Dolby/DTS 5.1 Toslink Audio format:
PCM 2ch, Dolby/DTS 5.1 Transmission Distance:
4K at 60Hz: Up to 40m via Cat5 cable
4K at 60Hz: Up to 70m via Cat6/6a/7 cable Product:
Housing material:
Metal Color:
Black Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop-out
1x 4-pin USB 2.0 Type-A, Female, for Host connection
1x 8-pin, RJ45, Output
1x Reset button
1x Power jack Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse or touch screen for control
1x 8-pin, RJ45, Input
1x S/PDIF Toslink, Audio
1x Reset button
1x Power jack Power adapter:
Input:
100-240V / 50-60Hz Output:
DC 5V/2A UL listed:
E335801 / Level: VI Environmental conditions:
Operating temperature:
14 to 140^oC
Storage temperature:
-4 to 158^oC
Relative humidity:
0% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Interface
Transmitter unit (TX):
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 4-pin, USB 2.0 Type-A, Female (for Host)
1x 8-pin, RJ45 (output)
1x Reset button
1x DC power jack (5V/2A) Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
2x 4-pin, USB 2.0 Type-A, Female (for keyboard and mouse/touch screen)
1x 8-pin, RJ45 (input)
1x S/PDIF audio, Toslink (output)
1x Reset button

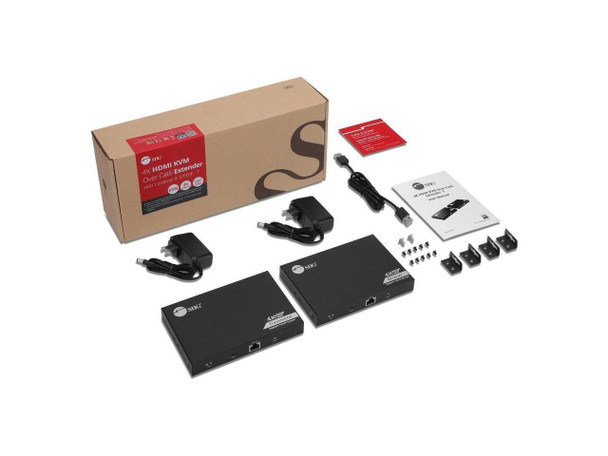

1x DC power jack (5V/2A) Package contents
4K 60Hz HDR HDMI KVM Over Cat6 Extender with SPDIF and Touch Screen Support
Power adapter (x2)
USB 2.0 Type-A to Type-A cable
Mounting ears and Screw kit
User manualItem Dimension (L inchxW inchxH inch)
15 x 4 x 7

Weight
4.00 lb

Warranty Information
NA
