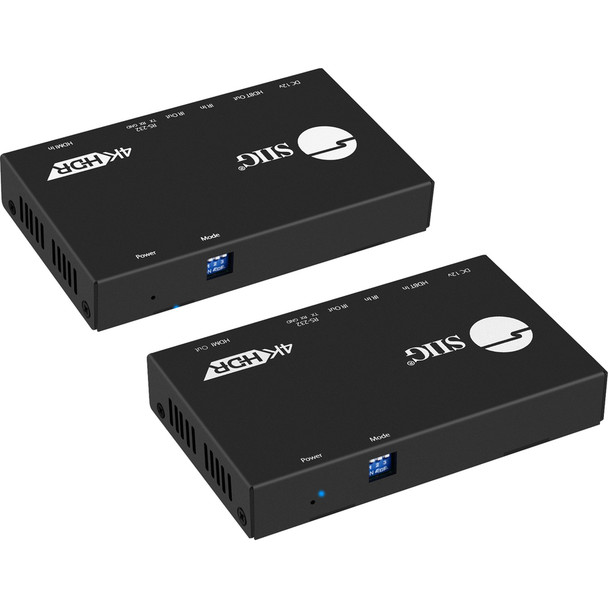

SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 100m (217546)

This item is brand-new, factory sealed.

Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (YUV 4:4:4 8bit/HDR10 YUV 4:2:0 10bit) through a single premium quality CAT5e/6 cable

Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8bit and HDR 3840x2160 @60Hz YUV 4:2:0 10bit

Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support

Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter

Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side

High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use

Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements

Note: Does not support connecting to Router or SwitchCompliant with HDMI 2.0 and HDCP 2.2
Supports EDID bypass, CEC, Deep Color 36bit
Supports 3840x2160 at 60Hz YUV 4:4:4 8bit
Supports 3840x2160 at 60Hz HDR10 YUV 4:2:0 10bit
Video bandwidth up to 18Gbps (600MHz per channel)
Video latency: <20 microsecond
Auto skew equalization
Audio support
DTS-HD Master Audio and Dolby True HD
Bi-directional IR pass-through supports full frequency IR signal from 20KHz to 60KHz
Full Duplex RS-232 control up to 115200 bps through connector
Resolution
480p / 720p / 1080i / 1080p / 3840x2160 at 60Hz YUV 4:4:4 8bit / HDR 3840x2160 at 60Hz YUV 4:2:0 10bit
Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through one power adapter connected to either unit
Power consumption
10 watts (max)
ESD protection
+/-15kV Air and +/-8kV Contact
Aluminum housing with wall mount design
Transmission protocol
HDBaseT
Note: Does not support connecting to Router or Switch
Transmission Distance
1080p at 60Hz: up to 100m
3840x2160 at 30Hz/60Hz: up to 70m
Product
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, output
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator
1x 3-Pin, RS-232, Phoenix connector
1x 3-Pin, DIP Switch
1x Power jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45, Input
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator
1x 3-Pin, RS-232, Phoenix connector
1x 3-Pin, DIP Switch
1x Power jack
Power adapter
Input: AC 100-240V / 50-60Hz
Output: DC 12V/2A
UL Listed: E163743 / Class VI
Environmental conditions
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
