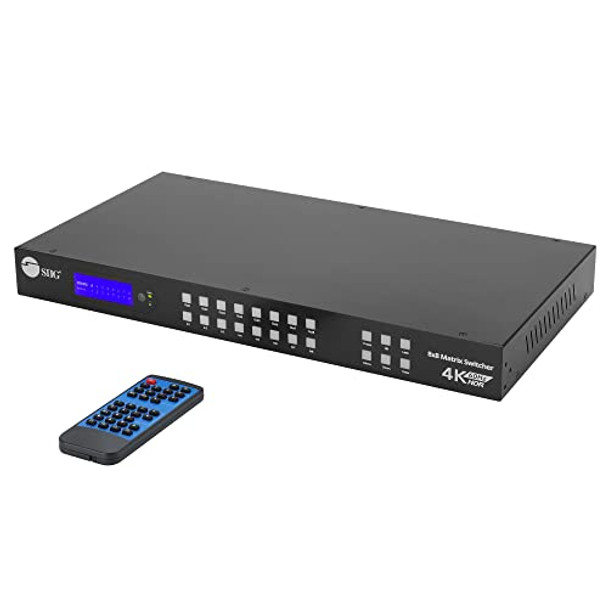

SIIG 8x8 HDMI 4K60Hz Matrix Switcher with LCD - 18Gbps- Downscaling- EDID Management - ARC- Audio Embedded/Extraction (ce-mx0011-s1)

This item is brand-new, factory sealed.

8x8 HDMI 4K60Hz Matrix Switcher
with LCD, 18Gbps, HDCP 2.2, HDR 10, Downscaling, EDID Management, ARC, Audio Embedded, Audio Extraction



Support HDCP 2.2

Support HDCP 2.2 ensures secure content transmission for high-definition devices.

RS232 & LAN Port Control

Control the matrix by sending TCP/IP commands over the local network.

Audio Extraction & Matrix

Built-in 8 audio inputs & outputs, and support HDMI ARC on Coaxial only.

High Quality Components

Designed to fit in a 19-inch standard 1U cabinet or rack, with 2 rack mount ears included for convenient installation in server rooms.- Compliant with HDCP 2.2/1.4 specification
- Video bandwidth: Up to 18Gbps
- Video resolution: 480p at 60Hz / 576P at 50Hz / 720P at 60Hz / 1080p at 24Hz / 1080P at 50Hz / 1080P at 60Hz / 4K at 24Hz / 4K at 30Hz / 4K at 60Hz YUV4:2:0 / 4K at 60Hz YUV4:4:4
- Support 3D, EDID management and HDMI ARC on Coaxial only
- Support HDMI downscaling from 4K at 60Hz to 1080p at 60Hz
- Analog L+R Audio Format: Supports PCM 2.0
- Digital SPDIF Audio Format: Supports PCM 5.1, Dolby Digital, DTS
- HDMI Audio Format: Supports PCM 2.0 to 7.1 / 16 to 24bit, Dolby / DTS / Dolby Atmos / DTS-HD
- S/PDIF Audio Sampling Rate: Supports up to 96KHz
- HDMI Audio Sampling Rate: Supports up to 192KHz
- The matrix switcher can switch every output channels to any HDMI inputs by front-panel button, IR remote, RS-232, IP and Web GUIProduct:
Color: Black
Housing: MetalConnector:
8x Push Button, HDMI Input, Control
8x Push Button, HDMI Output, Control
6x Push Button, Menu, Control
8x 19-pin, HDMI, Type A, Female, Input
8x 19-pin, HDMI, Type A, Female, Output
8x 3.5mm Analog audio, Female, Input
8x 3.5mm Analog audio, Female, Output
8x S/PDIF (Coaxial) audio, Female, Output
1x 8-pin, RJ45, TCP/IP Ethernet Control
1x 3-pin to DB9, RS-232, Control
1x 3.5mm IR, Control port
1x Grounding connect
1x power jackPower adapter:
Input: 100-240V AC, 50/60 Hz
Output: DC 12V/3A
UL listed: E504312 / Level: VIEnvironmental conditions:
Operation Temperature: 32 to 104 degrees F
Storage Temperature: 14 to 140 degrees F
Relative humidity: 10 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHSCountry of origin:
Engineered in USA, Manufactured in ChinaPackage contents
8x8 HDMI 4K60Hz Matrix Switcher
Mounting Kit, 2x Mounting Ears with 6 Screws
IR Remote Control
IR RX cable
Power Adapter DC 12V/3A
3-pin Terminal Block
CD for Control Software and User Manual
User ManualItem Dimension (L inchxW inchxH inch)
20 x 4 x 13

Weight
8 lbs

Warranty Information
2 Years
