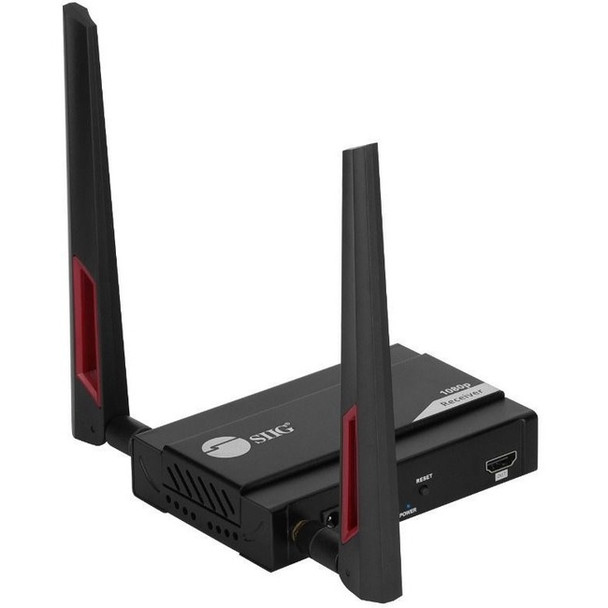

SIIG Full HD Wireless HDMI Extender - Receiver CEH27711S1

This item is brand-new, factory sealed.

Features

Receives HDMI A/V signals wirelessly without complicated cable or wire installation, working range up to 656ft through line-of-sight environment

Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum

It offers high quality configurable, low-bandwidth video and support up to 1080p@60Hz

Four Receivers At Same Time: Connect one transmitter to four receivers and a local HD display simultaneously! Perfect for sharing content like movies or security systems throughout the house or business!

Note: Requires Full HD Wireless HDMI Extender with Loopout & IR Kit (part # CE-H27611-S1) sold separately

Build in 5G wireless high speed transmission signal, faster transmission speed and stronger anti-interference ability. Using an external dual-gain antenna can transmit over long distance, up to 656 ft in an open space.

Note: A delay of less than 200ms might occur due to data compression- Not recommended using for PC gaming.

Supports Audio format LPCM 2.0 CH up to 48KHz

Built-in one way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 60KHz carrier frequency

Works with most of the HDMI equipped devices, such as DVD, Blu-ray players, Set-top boxes, AV receivers, Cable/Satellite boxes and computer systems

Ideal wireless solution for apartments or condos where installing wiring is prohibited, a perfect solution for adding displays throughout your home or serving as digital signage, POP for small business office and showroom

Compact design for easy and flexible installation

Plug-n-play, no software or Wi-Fi connection required HDMI Bandwidth:
Up to 10.2G Supported Resolutions:
Up to 1920x1080 at 60 HDCP Version:
HDCP 1.3 compatible Wireless Bandwidth:
5GHz Transmission Distance:
1 to 1: 200m (656ft) line-of-sight
1 to 2: 120m (394ft) line-of-sight
1 to 3: 60m (197ft) line-of-sight
1 to 4: 30m (98ft) line-of-sight Note:
The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum HDMI Cable Length:
Up to 5m (Input and Output) Audio Format:
R/L LPCM 2.0CH 32KHz / 44.1KHz / 48KHz IR Remote Control:
20-60Hz Frequency Range Color:
Black Housing:
Metal Connector:
1x 19-pin, HDMI, Female, Output
1x Infrared 3.5mm socket, IR In
1x Reset Button
2x Antenna port
1x Power Jack Power Adapter
Input:
AC 100-240V/50-60Hz
Output:
DC 12V/1A
UL Listed:
E336751/ Class: VI Environmental conditions:
Operating temperature:
32 to 140 degrees F
Storage temperature:
23 to 158 degrees F
Relative humidity:
5% to 90% RH (non-condensing) Certifications/Standards:
FCC, RoHS Interface

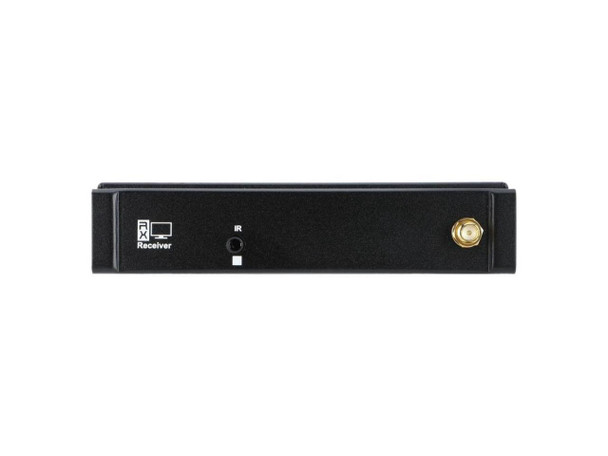

Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
1x 3.5mm, Infrared jack (IR input)
2x Wi-Fi antenna jacks, 5G bandwidth
1x reset button
1x DC 12V/1A power jack Package contents
Full HD Wireless HDMI Extender - Receiver
IR receiver extension cable
Power Adapter 12V/1A
Quick Start GuideItem Dimension (L inchxW inchxH inch)
8 x 3 x 6

Weight
2.00 lb
