SIIG DP CyberSerial 4S PCIe, PCI Express x1 Interface, Dual-Profile Design, TAA Compliant (302965)

This item is brand-new, factory sealed.

4-Port RS-232 Expansion

Instantly adds four high-speed RS-232 (DB9) serial ports to any PCI Expressenabled system for reliable device connectivity. Perfect for connecting industrial equipment, POS systems, and serial devices


High-Speed Performance

Features 16550 UART with 256-byte FIFO buffers, supporting asynchronous baud rates up to 921.6 Kbps for smooth data transmission


Flexible Power Output

Each port supports standard RS-232 or selectable 5V / 12V power for powered devices such as scanners and POS displays (configurable via jumpers)


Wide Compatibility

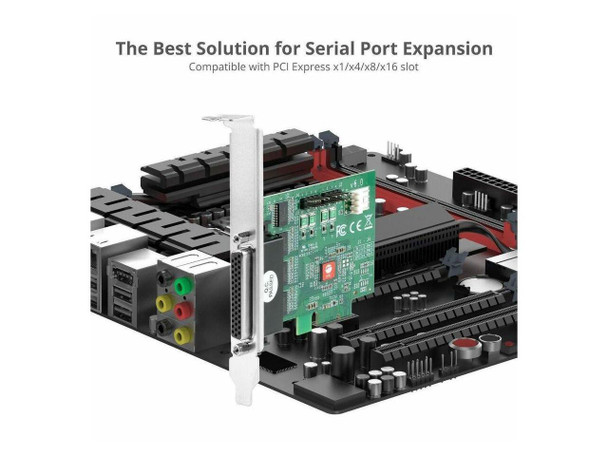

PCI Express x1 interface works with slots of all lane widths (x1, x4, x8, x16) and supports multiple serial formats (59 data bits)


Reliable & Stable Operation

Onboard power connector ensures steady power delivery; supports hardware and software flow control for dependable communication


Flexible Installation

Comes with both full-height and low-profile brackets for easy installation in standard or compact PC chassis


TAA Compliant

Our device complies with the Trade Agreements Act (TAA), meeting the highest standards of quality and compliance for government and commercial applications Chipset:
ASIX AX99100Compliant with PCI Express Base Specification 2.0 Gen1Supports PCIe Power Management Supports transfer rate:
Serial port up to 921KbpsSupports Hardware, Software Flow ControlSupports 5, 6, 7, 8 and 9-bit Serial formatSupports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port Serial power output:
0V / 5V / 12V by Jumper Form factor:
Full profile / Low profile Color:
Green Connector
4 x 9-pin RS-232 Serial, Male (via fan-out cable)
1 x 4-pin, Molex mini power connector
4 x 4-pin header, jumper for power out Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS System Requirements
Desktop PC with one available PCIe slot 1x
Windows 11 / 10 / 8.x / 7 / Vista / XP (32-/64-bit)
Windows Server 2019 (64-bit) / 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 Package contents
DP CyberSerial 4S PCIe
Spare low profile bracket
4-Port fan-out cable (DB 44pin)
Voltage jumpers (4pcs)
Y-Split power cable
User manualItem Dimension (L inchxW inchxH inch)
8 x 3 x 6

Weight
2.00 lb

Warranty Information
TBA

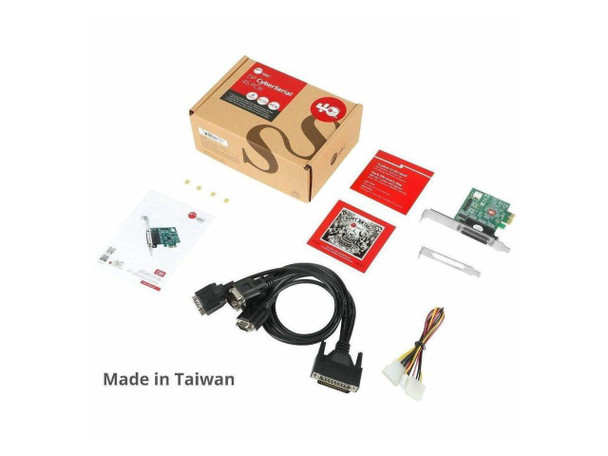

Package Contents:

• DP CyberSerial 4S PCIe
• Spare Low Profile Bracket
• 4-Port Fan-out Cable (DB 44pin)
• Voltage Jumpers (4pcs)
• Y-Split Power Cable
• User manual
