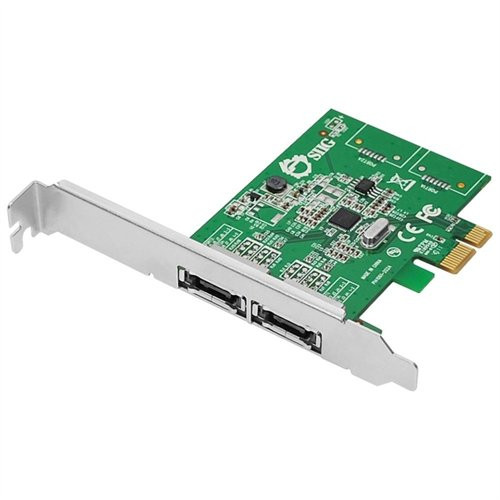

SIIG DP eSATA 6Gb/s 2-Port PCIe - 2 x 7-pin Serial ATA/600 Serial ATA External - PCI Express SCSA0M11S1

This item is brand-new, factory sealed.

SIIGs DP eSATA 6Gb/s 2-Port PCIe is a high performance eSATA host adapter designed to add two external SATA (eSATA) 6Gb/s channels to your PCIe-equipped computer for additional hard disk drive connections. It supports SATA hard disk drives up to 3TB, ATA/ATAPI-7 specification as well as port multiplier. This dual-profile host adapter can be installed in standard height or low profile chassis with the included bracket. It is the ideal solution to enable fast, large volume data transferring for your bandwidth-hungry applications.



The DP SATA 6Gb/s 2-Port PCIe host adapter is fully compliant with PCI Express Base Specification Revision 2.0, Serial ATA specification revision 3.0 with FCC Class B (DoC) and CE regulatory approved and RoHS-compliant. It supports a wide variety of Windows operating systems and is backed by SIIGs limited 5-year warranty.
1.Compliant with Serial ATA specification, Revision 3.0

2.Compliant with PCI Express Base specification, Revision 2.0
3.Supports ATA/ATAPI-7 specification

4.Supports port multiplier

5.Supports Native Command Queuing (NCQ)
6.Supports 6Gb/s data transfer rate

7.Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s 1.5Gb/s HDDs
8.Chipset: Asmedia ASM1061

9.Ports: 2 x external SATA (eSATA) 6Gb/s

10.Certifications/Standards: FCC, CE, RoHS
11.Country of origin: ChinaRequirements
Desktop PC with an available PCIe slot
Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 2008 (32-/64-bit) / Server 2008 R2 Item Dimension (L"xW"xH"):
6.18 x 8.66 x 1.50

Weight:
0.52 lb

Warranty Information:
5 Years
