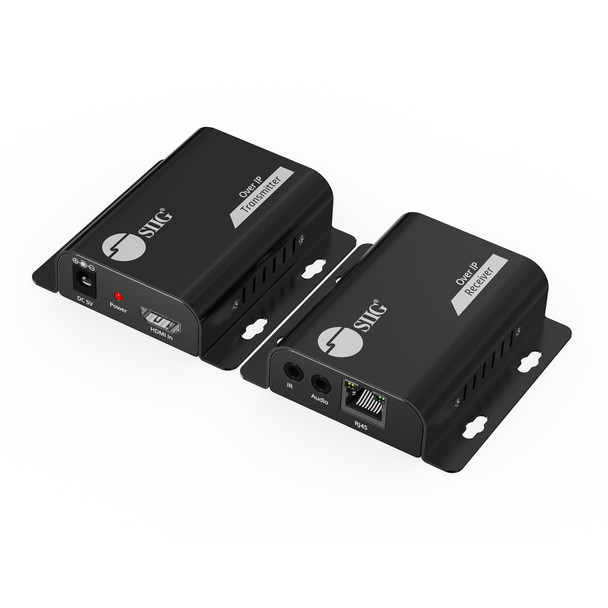

SIIG HDMI Over IP Extender with IR - 492ft [150m] - 1080p - IR- One-to-Many (ce-h3ip01-s1)

This item is brand-new, factory sealed.

Long-Distance HDMI Transmission Up to 492ft (150m)

Extend 1080p HDMI video and audio signals up to 492 feet over standard Cat5e/6 network cables with exceptional clarity and stability


Stunning Full HD 1080p @ 60Hz

Delivers crisp, vivid visuals with smooth frame rates perfect for presentations, signage, and multimedia playback


Scalable, Flexible One-to-One or One-to-Many Setups

Easily expand your video distribution using standard unmanaged Gigabit network switches to create One-to-Many Configuration. One transmitter can connect to up to 253 receivers, the additional receiver unit (part# CE-H3IP11-S1) is sold separately, ensuring a flexible and future-ready solution


Stereo Audio + Audio Extraction Support

Supports stereo audio through HDMI and features 3.5mm output jacks on both transmitter and receiver for PCM 2CH audio extraction


IR Remote Control Extension (2060KHz)

Easily control your source device from the receiver location with integrated IR pass-through support


Scalable Network Protocol (TCP/IP)

Designed for flexible IP-based installations. Connect one transmitter to up to 253 receivers across your network


Quick Reset Buttons

Fast troubleshooting with dedicated reset buttons on transmitter - no need to unplug power


Secure & Flexible Installation

The plug-and-play design requires no drivers or software. Durable and mountable metal housing with ESD protection ensures reliable long-term performanceCompliant with HDCP 1.2 specification Video resolution:
480p,576p,720p,1080i, 1080p 24/50/60Hz Bandwidth:
4.95Gbps / 165MHz (4.95Gbps all channels) Transmission distance:
Up to 150m for 1080p 60Hz Audio Format:
PCM 2ch Protocol:
TCP/IP network standard Product Color:
Black Housing Material:
Metal Transmitting unit (TX) Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45 Output
1x 3.5mm audio Output
1x 3.5mm IR-TX Output
1x Reset Button
1x Power Jack Receiving unit (RX) Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin RJ45, Input
1x 3.5mm audio Output
1x 3.5mm IR-RX Input
1x Power Jack Power adapter:
Input: 100-240V AC, 50/60 Hz
Output: DC 5V/1A
UL listed: E336751 / Level: VI Environmental conditions:
Operation Temperature: 32 to 122 degrees F
Storage Temperature: 14 to 158 degrees F
Relative humidity: 10 to 80% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Package contents
HDMI Over IP Extender with IR - 150m
2x Power adapter 5V/1A
1x IR emitter cable
1x IR receiver cable
User ManualItem Dimension (L inchxW inchxH inch)
6 x 3 x 8

Weight
2.00 lb

Warranty Information
1 years limited
