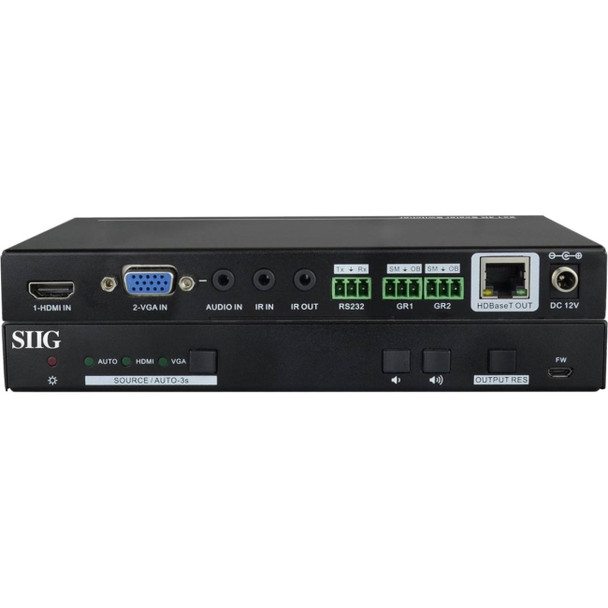

SIIG HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher (ce-h24211-s1)
(No reviews yet)
Write a Review
- SKU:
- 18213085
- MPN:
- ce-h24211-s1
- Availability:
- Out of stock
- Stock Update:
- 01/14/2026 01:37:19 PM PST
- Stock Update:
- 01/14/2026 01:37:19 PM PST
Description
This item is brand-new, factory sealed.
Allows you to select and switch between any of the 2 source devices (1 HDMI & 1 VGA) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio output and IR control
- Scales and switches an HDMI or VGA input to an HDBaseT output
- Features manual or auto device switching options
- Output resolution can be selected between 720p, 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4
- Transmits signals via HDBaseT technology up to 40m (131ft) at 4K or 70m (230ft) at 1080p
- Supports Bi-directional IR extension, RS232 control, advanced EDID management
- Supports bidirectional PoH, the HDBaseT receiver can be powered by this KIT, or this KIT can be powered by receiver via HDBaseT port
- Compliant with HDMI 1.4 and HDCP 2.2 on HDMI output
Package Contents:
- HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
- Power Adapter
- 2 x Mounting Ears
- 4 x Screws
- 4 x Plastic Cushions
- RS-232 Cable
- User Manual
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
- Power Adapter
- 2 x Mounting Ears
- 4 x Screws
- 4 x Plastic Cushions
- RS-232 Cable
- User Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Weight (Approximate) | 1.77 lb |
| Height | 0.9" |
| Width | 7.7" |
| Depth | 3.9" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| Number of USB Ports | 1 |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Connectivity (RJ-45) | Yes |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Allows you to select and switch between any of the 2 source devices (1 HDMI & 1 VGA) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio output and IR control Scales and switches an HDMI or VGA input to an HDBaseT output Features manual or auto device switching options Output resolution can be selected between 720p, 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4 Transmits signals via HDBaseT technology up to 40m (131ft) at 4K or 70m (230ft) at 1080p Supports Bi-directional IR extension, RS232 control, advanced EDID management Supports bidirectional PoH, the HDBaseT receiver can be powered by this KIT, or this KIT can be powered by receiver via HDBaseT port Compliant with HDMI 1.4 and HDCP 2.2 on HDMI output |
| Product Type | Audio/Video Switchbox |
| Product Name | HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H24211-S1 |
| Media & Performance | |
| Maximum Operating Distance | 229.66 ft |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Number of Displays Supported | 1 |
| Number of Input Devices Supported | 2 |
| Device Supported |
|
| Connectivity Technology | Cable |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
