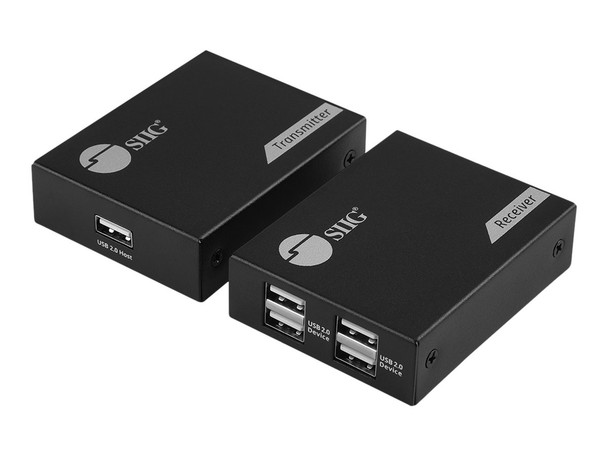

SIIG, Inc 4-Port USB 2.0 Hub Extender (ju-ex0411-s1)

This item is brand-new, factory sealed.

4-Port USB Extender, Extends USB 2.0 device connections up to 492 feet (150 meters) over single Cat6/7 cable, Metal Housing, Plug-and-Play

Easily extends four USB-A 2.0 signals and transmitters up to 330ft (100m) via Cat5e network cable or up to 492ft (150m) via Cat6/7 network cable


Long Distance

This 4-Port USB 2.0 Hub Extender is designed for reliably extend USB signals up to 492ft (150m) to remote devices through Gigabit Ethernet network and Gigabit Ethernet switch


Long Distance

This 4-Port USB 2.0 Hub Extender is designed for reliably extend USB signals up to 492ft (150m) to remote devices through Gigabit Ethernet network and Gigabit Ethernet switch


Cascading Connection

Supports 1 to 1 connection or up to 4 layers cascading connection through unmanaged dedicated Gigabit Ethernet routers or switches

*Note: When cascading, the receiving unit must be connected to the last switch


USB-A Data Transfer

Delivers five USB-A 2.0 ports (1 in 4 out) with 480Mbps data transfer rate to enhance the performance and transfer capability of USB devices. One for USB Host, such as PC, Laptop; others for printer, scanner, camera, flash drive, keyboard, mouse, touchscreen


Multiple Connectivity Ports

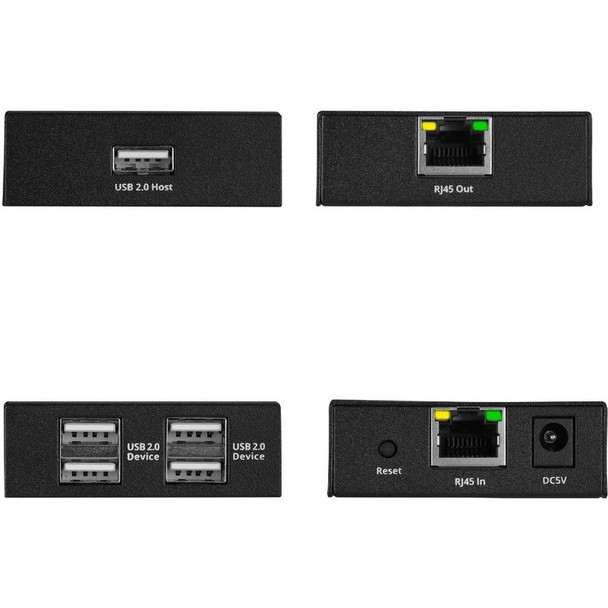

Adds one USB-A 2.0 input port (Host), four USB-A 2.0 output ports, one RJ45 Ethernet network input port, one RJ45 Ethernet network output port, one reset button, and one DC power jack (5V/2A) for RX unit


Protection Components

Supports ESD protection, protection, and surge protection to safe your electronic equipment


Maximum Compatibility

Supports Plug-n-play and no driver installation required. The reset button allows displays to be re-detected if no displays are detectedUSB
USB-A
1x input, 4x output
Data transfer rate
Up to 480Mbps
Transmission distance
Up to 330ft (100m) via Cat5e network cable
Up to 492ft (150m) via Cat6/7 network cable
^Note When cascading, the receiving unit must be connected to the last switch, otherwise it will not workPower Adapter (on RX unit)
Input
AC 100-240V/50-60Hz
Output
DC 5V/2A
UL Listed
E335801/Level: VIProtection Components
Supports protection, surge protection, and ESD protectionEnvironmental conditions
Operating temperature
14 to 140 degrees F
Storage temperature
-4 to 158 degrees F
Relative humidity:
<0% to 90% RH (non-condensing)Product Info
Transmitter unit (TX)
Dimensions: 2.99 (L) x 0.83 (H) x 2.36 (W)
Weight: 0.27 lbs
Color: Black
Housing material: Metal
Receiver unit (RX)
Dimensions: 2.99 (L) x 0.83 (H) x 2.36 (W)
Weight: 0.28 lbs
Color: Black
Housing material: MetalCertifications/Standards
FCC, CE, RoHS 2.0, REACH
Country of origin: ChinaItem Dimension (L inchxW inchxH inch)
6 x 4 x 5

Weight
1.08 lbs

Warranty Information
2 years limited
