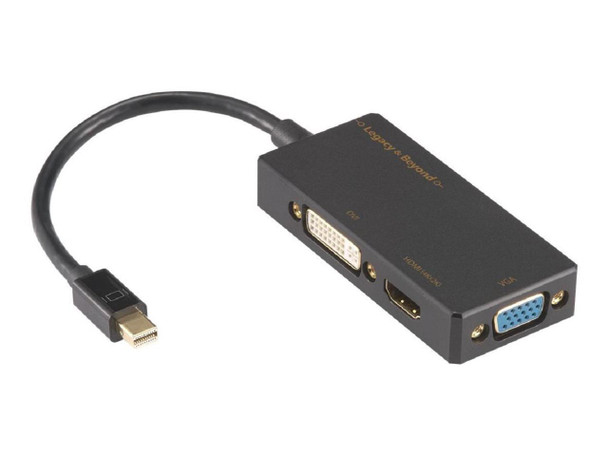

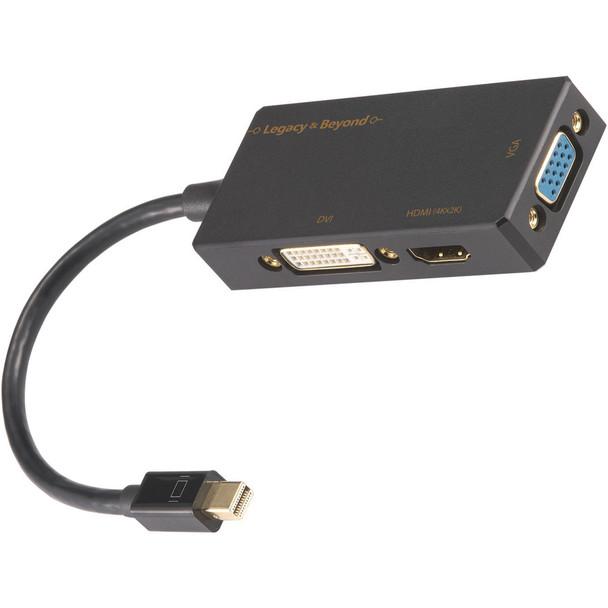

SIIG Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter LBCD0014S1

This item is brand-new, factory sealed.

SIIGs Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter instantly expands the compatibility of your Mini DisplayPortTM laptop or desktop computer to work with most mainstream displays. It provides 3 output options to allow you to connect your mini DisplayPort (Thunderbolt) computer to a 4K HDMI, DVI or VGA display. This 3-in-1 adapter is easy to use, no additional adapter and driver installation is required. Compact and lightweight form factor makes it a space-saving and portable adapter for use in business, at home or on-the-go.

Features

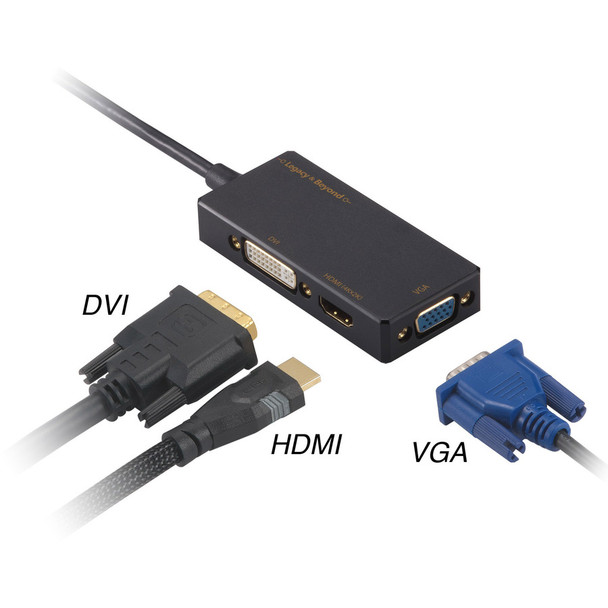

Connects Mini DisplayPort (Thunderbolt) enabled PC/Mac to either a HDMI, DVI or VGA monitor or projector instantly
3-in-1 Converter Solution: Simply expands the compatibility between Mini DisplayPort and mainstream display interfaces
Flawless Resolution: Support HDMI A/V signals in ultra-high resolution up to 4K x 2K at 30Hz with up to 7.1 channel audio. 2048x1152 via VGA and 1080p via DVI output (video signal only)
Plug-n-play: No driver installation or power adapter required
High quality video assured: Gold-plated connectors provide optimal conductivity and corrosion resistant
Compact and Lightweight: The space-saving design is portable and easy to take with you while on-the-go
Chipset
ANX9833 + PS8339Version
Mini DisplayPort v1.2Resolution
HDMI: Up to 4Kx2K at 30Hz
DVI: Up to 1920x1080 at 60Hz
VGA: Up to 2048x1152 at 60HzAudio
HDMI: Up to 7.1 channel audio output
DVI and VGA: No audio outputConnectors
1x 20-pin, Mini DisplayPort, Male, Input
1x 19-pin, HDMI, Female, Output
1x 25-pin, DVI-D, Female, Output
1x 15-pin, D-sub VGA, Female, OutputProduct
Embedded cable length: 150mm (5.91")
Color: Black
Material: PlasticEnvironmental conditions
Operating temperature: 32 to 113 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: < 85% (non-condensing)Certifications/Standards: FCC, CE, RoHSItem Dimension (L"xW"xH")
2 x 6 x 8

Weight
1 lb

Warranty Information
1 Year

Features

Environmentally Friendly:
Yes



Country of Origin:
China



Specs

Physical Characteristics
Length	3.4"
Product Color	Black
Height	0.6"
Width	1.6"
Warranty
Limited Warranty	1 Year
General Information
Brand Name	SIIG
Manufacturer Website Address	http://www.siig.com
Marketing Information	SIIG's Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter instantly expands the compatibility of your Mini DisplayPort TM laptop or desktop computer to work with most mainstream displays. It provides 3 output options to allow you to connect your mini DisplayPort (Thunderbolt) computer to a 4K HDMI, DVI or VGA display. This 3-in-1 adapter is easy to use, no additional adapter and driver installation is required. Compact and lightweight form factor makes it a space-saving and portable adapter for use in business, at home or on-the-go. Features Connects Mini DisplayPort (Thunderbolt) enabled PC/Mac to either a HDMI, DVI or VGA monitor or projector instantly 3-in-1 Converter Solution: Simply expands the compatibility between Mini DisplayPort and mainstream display interfaces Flawless Resolution: Support HDMI A/V signals in ultra-high resolution up to 4K x 2K @30Hz with up to 7.1 channel audio. 2048x1152 via VGA and 1080p via DVI output (video signal only) Plug-n-play: No driver installation or power adapter required High quality video assured: Gold-plated connectors provide optimal conductivity and corrosion resistant Compact and Lightweight: The space-saving design is portable and easy to take with you while on-the-go
Product Type	A/V Cable
Product Name	Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter
Manufacturer	SIIG, Inc
Manufacturer Part Number	LB-CD0014-S1
Technical Information
Connector on Second End Details	1 x 19-pin HDMI Digital Audio/Video - Female 1 x 29-pin DVI-I Digital Video - Female 1 x 15-pin D-sub VGA - Female
Connector Plating	Gold
Supported Resolution	3840 x 2160
Cable Type	DVI-D/HDMI/Mini DisplayPort/VGA
Connector on First End Details	1 x 20-pin Mini DisplayPort Digital Audio/Video - Male
Connector Type on First End	Mini DisplayPort Digital Audio/Video - Male
Connector Type on Second End	HDMI Digital Audio/Video - Female DVI-I Digital Video - Female D-sub VGA - Female
Cable Length	5.91"
Features	Corrosion Resistant
Device Supported	Projector Monitor Notebook
