Siig Mini-dp Video Dock With Usb 3.0 Lan Hub - White - For Notebook/tablet Pc - Usb 3.0 - 3 X Usb Ports - 3 X Usb 3.0 - Network [rj-45] - Hdmi - Displayport - Mini Displayport - Wired (ju-h30212-s1)

This item is brand-new, factory sealed.

External docking station adds DisplayPort/HDMI, USB 3.0 and Gigabit Ethernet connectivity to your Mini DisplayPort/USB 3.0 enabled computer, laptop or tablet



  Solves your system's connectivity needs by adding two USB 3.0 ports and one Gigabit Ethernet port through one USB 3.0 port



  Supports USB 3.0 data transfer rates up to 5Gbps for smooth and stable performance



  Converts your system's Mini DisplayPort output to either HDMI or DisplayPort output




SIIGs Mini-DP Video Dock with USB 3.0 LAN Hub White allows you to convert your Mini DisplayPort video source to either HDMI or DisplayPort output. It ensures your Mini DisplayPort-equipped computer such as MacBook or Surface Pro series computers to be compatible with HDMI or DisplayPort display. Two USB 3.0 ports with SuperSpeed data transfer rate of up to 5Gbps are provided to support smooth and efficient connections. One Gigabit Ethernet port is also available to enable fast and reliable wired network connection. Compact and lightweight design with no external power adapter required makes it super portable to carry. This Mini-DP Video Dock with USB 3.0 LAN Hub is a versatile tool to expand and enhance your computers connectivity performance for use at home, in the office or on the road.Chipset:
GL3520D + PS8312 + RTL8153Compliant with Universal Serial Bus 3.0 Specification and backward compatible with USB 2.0Compliant with DisplayPort 1.1a for both 1.62 and 2.7 Gbps link ratesCompliant to HDMI 1.3a specification up to 2.25GbpsCompatible with Intel ThunderboltFull link training support for 1, 2 or 4 lanes for Dual Mode DP outputGigabit Ethernet:
Supports up to 1000 Mb/s data transfer rate and is backward compatible with 10/100 Mb/s
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correctionSupported video cable length:
HDMI: Up to 5M (max)
DisplayPort: Up to 3M (max)Resolution:
DisplayPort: Up to 4Kx2K30Hz
HDMI: Up to 1920x108060HzOverall length (including the embedded cable)
11.81" (300mm)

Color:
WhiteHousing material:
ABSConnectors:
1x 20-pin, Mini DisplayPort, Male, Input
1x 9-pin, USB 3.0, Type-A, Male, Input
1x 20-pin, DisplayPort, Female, Output
1x 19-pin, HDMI Type-A, Female, Output
2x 9-pin, USB 3.0 Type-A, Female, Output
1x 8-pin, RJ45, Network, Female, OutputEnvironmental conditions:

Operating temperature:
32 to 104 degrees F

Storage temperature:
-4 to 140 degrees F

Relative humidity:
<85 percent RH (non-condensing)Certifications/Standards:
FCC, CE, RoHSCountry of origin:
ChinaItem Dimension (L inchxW inchxH inch)
4 x 8 x 5

Weight
1.00 lb

Warranty Information
3 Years

Features

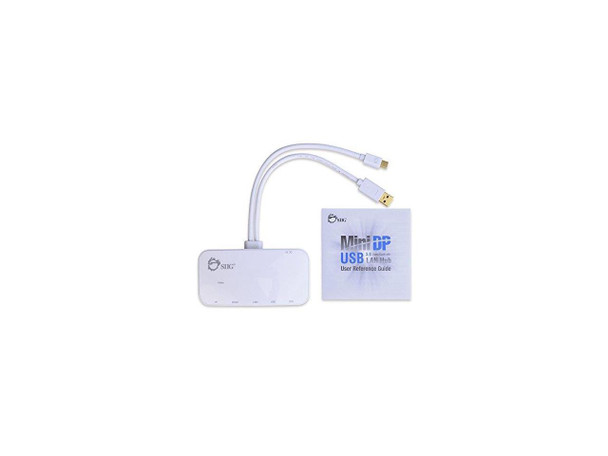

Package Contents:

• Mini-DP Video Dock with USB 3.0 LAN Hub - White
• 4 x Rubber Pad
• User Reference Guide



Additional Information:

• Solves your system's connectivity needs by adding two USB 3.0 ports and one Gigabit Ethernet port through one USB 3.0 port
• Supports USB 3.0 data transfer rates up to 5Gbps for smooth and stable performance
• Converts your system's Mini DisplayPort output to either HDMI or DisplayPort output
• Supports triple display modes (Mirror, Extended, Primary) through either HDMI or DisplayPort output to various applications such as presentation or entertainment
• Compact and lightweight design makes it easy-to-carry and the perfect on-the-go gadget
• Compatible with many Mini DisplayPort and USB 3.0 equipped computers, laptops and tablets
• Plug and play, no driver installation and no external power adapter required
• Assembly Required: No
• Humidity: <85% RH (non-condensing)
• Color: White
• Form Factor: External

Gigabit Ethernet:

• Supports up to 1000 Mb/s data transfer rate and is backward compatible with 10/100 Mb/s
• Supports IEEE 802.3x full duplex operation
• Compatible with IEEE 802.3, 802.3u
• Supports crossover detection and auto-correction

Supported video cable length:

• HDMI: Up to 5M (max)
• DisplayPort: Up to 3M (max)

Resolution:

• DisplayPort: Up to 4Kx2K@30Hz
• HDMI: Up to 1920x1080@60Hz

Platform Support:

• PC
• Mac

Data Transfer Rate:

• LAN: 1Gbps
• USB 3.0 Hub: up to 5Gbps

System Requirements:

• Intel® CoreTM Duo 2.0 GHz CPU with an available Mini DisplayPort and USB 3.0 port
• Win 10/8/7/Vista/XP
• Mac 10.14 to 10.6

Certifications & Standards:

• FCC
• CE

Temperature:

• Operating temperature: 32 to 104 degrees F
• Storage temperature: -4 to 140 degrees F



Environmentally Friendly:
Yes



Compatibility:
Compatible with Mini DisplayPort and USB 3.0 equipped computers, laptops and tablets



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
China



Specs

Physical Characteristics
Weight (Approximate)	3.84 oz
Height	0.98"
Width	4.74"
Depth	2.38"
Warranty
Limited Warranty	3 Year
Interfaces/Ports
Network (RJ-45)	Yes
Host Interface	USB 3.0
DisplayPort	Yes
Mini DisplayPort	Yes
HDMI	Yes
Total Number of USB Ports	3
Number of USB 3.0 Ports	3
General Information
Brand Name	SIIG
Package Type	Retail
Manufacturer Website Address	http://www.siig.com
Marketing Information	Solves your system's connectivity needs by adding two USB 3.0 ports and one Gigabit Ethernet port through one USB 3.0 port Supports USB 3.0 data transfer rates up to 5Gbps for smooth and stable performance Converts your system's Mini DisplayPort output to either HDMI or DisplayPort output Supports triple display modes (Mirror, Extended, Primary) through either HDMI or DisplayPort output to various applications such as presentation or entertainment Compact and lightweight design makes it easy-to-carry and the perfect on-the-go gadget Compatible with many Mini DisplayPort and USB 3.0 equipped computers, laptops and tablets Plug and play, no driver installation and no external power adapter required More from the Manufacturer
Product Type	Docking Station
Product Name	Mini-DP Video Dock with USB 3.0 LAN Hub - White
Manufacturer	SIIG, Inc
Manufacturer Part Number	JU-H30212-S1
Packaged Quantity	1
Technical Information
Device Supported	Notebook Tablet PC
Connectivity Technology	Wired
