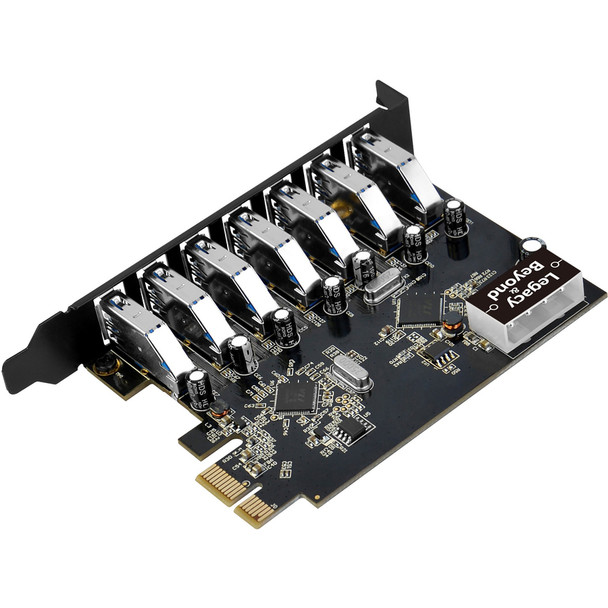

SIIG USB 3.0 7-Port Ext PCIe Host Adapter (lb-us0514-s1)

This item is brand-new, factory sealed.

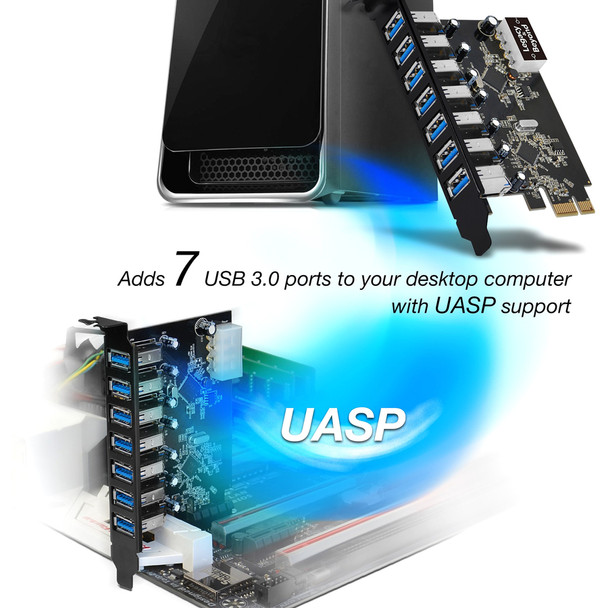

SIIGs USB 3.0 7-Port (Ext) PCIe Host Card allows you to add seven SuperSpeed USB 3.0 external ports to your desktop computer via a PCI Express slot to enhance your systems USB connectivity performance. It supports 5Gb/s ultra-fast USB 3.0 data transfer rate and provides up to 900mA power output per port with over-current protection to ensure smooth and reliable data transmission. This is a great USB port expansion solution to enable a variety of external device connections for maximum productivity.

Features
Quickly adds seven external USB 3.0 ports through an available PCI Express slot for connecting a variety of external USB devices
Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs
Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices
Multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out
Chipset
VIA VL805 + VL813Compliant with USB 3.0 SpecificationBus connector

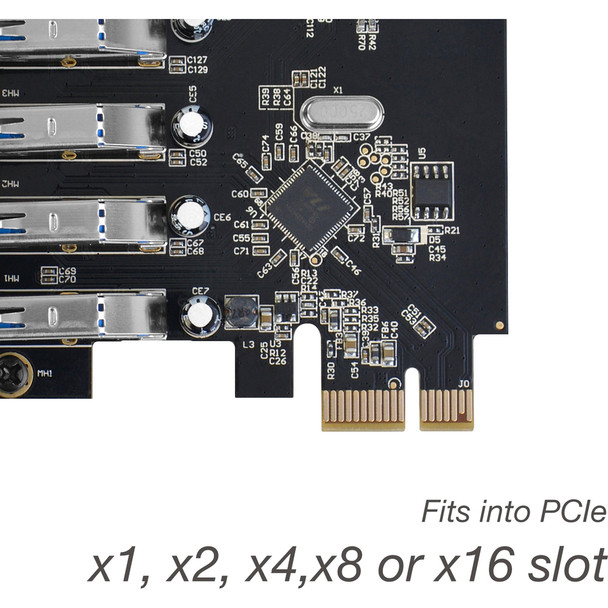

PCI Express 1xVersion
PCI Express 2.0Data transfer rate
Up to 5GbpsUSB power output
Up to 900mAConnectors
External: 7 x 9-pin USB 3.0 Type A, Female
Internal: 1 x 4-pin Molex power connector (required)Color: BlackEnvironmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)Certifications/Standards
FCC, CE, RoHSItem Dimension (L"xW"xH")
8 x 6 x 2

Weight
1 lb

Warranty Information
1 Year

Features

Environmentally Friendly:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
China



Specs

Physical Characteristics
Form Factor	Plug-in Card
Weight (Approximate)	2.24 oz
Length	4.7"
Product Color	Black
Height	0.9"
Depth	3.3"
Warranty
Limited Warranty	1 Year
Interfaces/Ports
Total Number of USB Ports	7
Number of USB 3.0 Ports	7
General Information
Brand Name	SIIG
Manufacturer Website Address	http://www.siig.com
Marketing Information	SIIG's USB 3.0 7-Port (Ext) PCIe Host Card allows you to add seven SuperSpeed USB 3.0 external ports to your desktop computer via a PCI Express slot to enhance your system's USB connectivity performance. It supports 5Gb/s ultra-fast USB 3.0 data transfer rate and provides up to 900mA power output per port with over-current protection to ensure smooth and reliable data transmission. This is a great USB port expansion solution to enable a variety of external device connections for maximum productivity. Features Quickly adds seven external USB 3.0 ports through an available PCI Express slot for connecting a variety of external USB devices Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices Multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out
Product Type	USB Adapter
Product Name	USB 3.0 7-Port Ext PCIe Host Adapter
Manufacturer	SIIG, Inc
Manufacturer Part Number	LB-US0514-S1
Technical Information
Host Interface	PCI Express 2.0 x1
