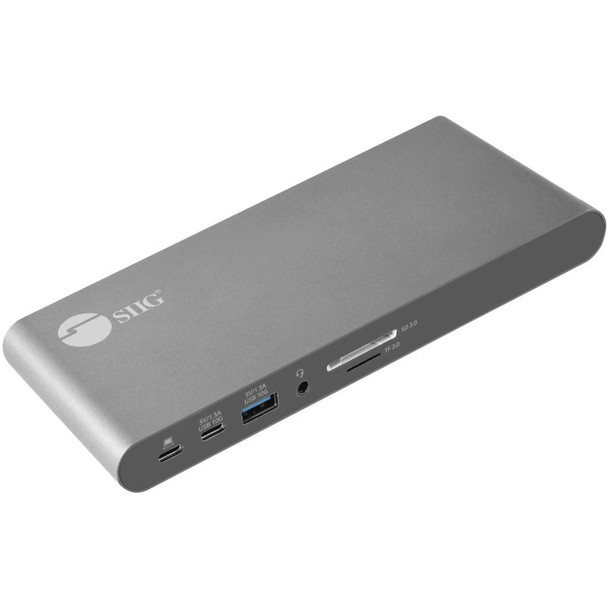

SIIG USB-C Dual 4K Video MST Docking Station with 60WPD Charging JUDK0N11S1

This item is brand-new, factory sealed.

Features

Transforms a single USB-C port with DP Alt mode* or Thunderbolt 3 technology into multiple connectivity ports including two simultaneous video outputs *Note: Requires a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.

DisplayPort Multi Stream Transport (MST)* technology supports dual HDMI displays up to 3840x2160 60Hz (with DP 1.4 DSC) or 3840x2160 30Hz (without DP 1.4 DSC) *Note: macOS does not support MST function and will only mirror the displays

Adds a wide variety of ports to your USB-C enabled computer includes - Two USB-C 10Gbps (front port come with 5V/1.5A), one USB-A 10Gbps with 5V/1.5A, one USB-A 5Gbps ports, one SD & TF memory card slots, one Gigabit Ethernet port and 3.5mm headset (Audio/MIC) port

60 Watt PD Charging - Supports up to 60W Power Delivery charging for USB-C laptop.

Ultra-speed Data Transfer - Provides two USB-C 10Gbps (front port come with 5V/1.5A), one USB-A 10Gbps with 5V/1.5A, one USB-A 5Gbps data transfer speeds to enhance your laptop's performance capabilities

Compatible with all laptops and desktops system with USB 3.1 Gen-2 Type-C signal

Easily setting Mirror /Extend/ Primary video mode, streaming video to HDTV monitors and projectors for the perfect visual display

Reliable Wired Network Connectivity - Embedded Gigabit Ethernet port, 10/100/1000BASE-T connectivity

Audio Capability - Includes one 3.5mm headset jack for stereo audio output and microphone capabilities

Support 5.1 channel surround sound through HDM output Chipset:
VMM5200+RTL8153B+AU84612+VL822Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification Resolution:
Dual video up to 3840x2160 60Hz (with DP 1.4 DSC) or 3840x2160 30Hz (without DP 1.4 DSC)3.36Supports data transfer rate up to 10Gbp/s/5Gbp/s Compatible networks:
10/100/1000 Mbps Audio Supported:
HDMI up to 5.1 Channel surround sound 3.5mm headset jack for 2 CH stereo audio Supported modes:
Extend, Mirror and Primary Display Power Delivery:
Up to 60W via USB-C for laptop source Color:
Black Housing material:
Aluminum housing with stand Connectors:
1x 24-pin USB 3.1 Type-C, Female
2x 19-pin HDMI Female, output(Support MST Mode)
2x 24-pin USB-C 10Gbps (USB 3.1 Gen-2), Female, Front side come with 5V/1.5A
1x 9-pin USB-A 10Gbps (USB 3.1 Gen-2 with 5V/1.5A), Female
1x 9-pin USB-A 5Gbps (USB 3.1 Gen-1), Female
1x 8-pin RJ45, Gigabit Ethernet
1x 3.5mm Headset Jack, Stereo audio and MIC
1x SD and TF (Micro SD) 3.0 Card Reader, UHS-I, up to 104MB
1x Power Jack Power Adapter:
Input:
AC 100-240V/50-60Hz
Output:
DC 24V/4A
UL Listed:
E361658 / Class VI Environmental conditions:
Operating temperature:
32 to 104 degrees F
Storage temperature:
-4 to 140 degrees F
Relative humidity:
less than 20% to 90% RH (non-condensing) Certifications/Standards:
FCC / CE / RoHS 2.0 / REACH Input:
1x 24-pin, USB-C 3.1, Female (Host) Output:
2x 19-pin, HDMI (supports MST mode), Female
1x 24-pin, USB-C 3.1 Gen 2 (10Gbps), Female
1x 24-pin, USB-C 3.1 Gen 2 (10Gbps, 5V/1.5A), Female (on front view)
1x 9-pin, USB-A 3.1 Gen 2 (10Gbps, 5V/1.5A), Female
1x 9-pin, USB-A 3.1 Gen 1 (5Gbps), Female
1x 8-pin, RJ45, Gigabit Ethernet, Female
1x 3.5mm, Headset jack, stereo audio and mic
1x SD UHS-I 3.0 card slot, up to 104MB
1x TF (Micro SD) UHS-I 3.0 card slot, up to 104MB System Requirements
Desktop or laptop computer with an available USB 3.1 Type-C port (with DP 1.4 Alt-mode)
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) Package contents
USB-C Dual Video MST Docking Station with PD Charging
Power Adapter 24V/4A
USB-C to C cable
User ManualItem Dimension (L inchxW inchxH inch)
8 x 1 x 4

Weight
1.00 lb

Warranty Information
2 Years
