silverstone

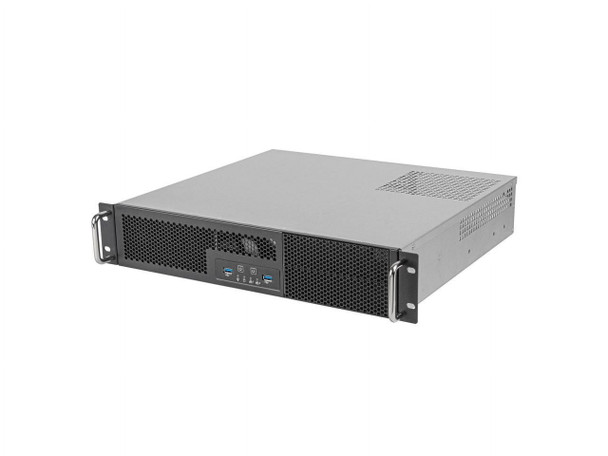

SilverStone SST-RM23-502 Server Case (sst-rm23-502-mini)
- SKU:
- 21192379
- MPN:
- sst-rm23-502-mini
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/04/2026 10:39:29 PM PST
- Stock Update:
- 02/04/2026 10:39:29 PM PST
Description
This item is brand-new, factory sealed.
2U rackmount Server Chassis with Dual 5.25" Drive Bays, 3.5" HDDx2 and 2.5" HDDx1, Support M-ATX, ITX M/B, PS2/2U single/2u redundant PSU,USB 3.0x2- Supports ATX (PS2) / 2U single / 2U redundant power supplies
- Supports 1 x 2.5" SSD and up to 2 x 3.5" HDD
- 5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
- Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
- Built-in fan bracket supports up to two 80mm x 25mm fans
- Number of USB 3.0 Ports: ?1
- Brand: ?SilverStone Technology
- Series: ?SST-RM23-502-MINI
- Item model number: ?SST-RM23-502-MINI
- Item Weight: ?16.22 pounds
- Product Dimensions: ?15.75 x 16.93 x 3.49 inches
- Item Dimensions LxWxH: ?15.75 x 16.93 x 3.49 inches
- Color: ?grey
- Manufacturer: ?SilverStone Technology
The Ml09 is an evolution and variation of the premium Mini-ITX HTPC case, The Milo Ml06. With external Dimension unchanged at 7 liters, the Ml09 rearranged internal layout provides a crucial second expansion slot for support of more powerful low-profile discrete graphics card or expansion card that are two slots wide. For users that wish to build with a more robust GPU or tuner card in console/dvr-like form factor to game or for multimedia content recording, the Ml09 is a great starting point
Specs
| Physical Characteristics | |
| Weight (Approximate) | 14.99 lb |
| Cooler Type | Fan Cooler |
| Product Color | Black |
| Depth | 22.8" |
| Maximum CPU Cooler Height | 2.56" |
| Product Material | Steel |
| Form Factor | Rack-mountable |
| Height | 3.5" |
| Color Family | Black |
| Compatible Rack Unit | 2U |
| Maximum GPU Length | 10.24" |
| Maximum PSU Length | 7.09" |
| Width | 16.9" |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| USB Port Details | 2 x USB 3.2 Gen 1 Type-A |
| Front USB | Yes |
| Bays | |
| Number of External 5.25" Bays | 2 |
| Number of Internal 2.5" Bays | 1 |
| Number of Internal 3.5" Bays | 5 |
| General Information | |
| Brand Name | SilverStone |
| Manufacturer Website Address | http://www.silverstonetek.com |
| Product Type | Server Case |
| Product Name | SST-RM23-502 Server Case |
| Manufacturer | SilverStone Technology, Inc |
| Manufacturer Part Number | SST-RM23-502-MINI |
| Product Model | SST-RM23-502 |
| Technical Information | |
| Motherboard Supported |
|
| Number of Fans Supported | 1 |
| Features |
|
| Fan Size Supported |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
