SilverStone Server Case RM51

This item is brand-new, factory sealed.

5U rackmount server chassis with dual 180mm fans and enhanced liquid cooling compatibility


Supports up to SSI-EEB motherboards

Includes 2 x Air Penetrator 184i PRO fans for superior air intake

Supports 360mm liquid cooling radiator

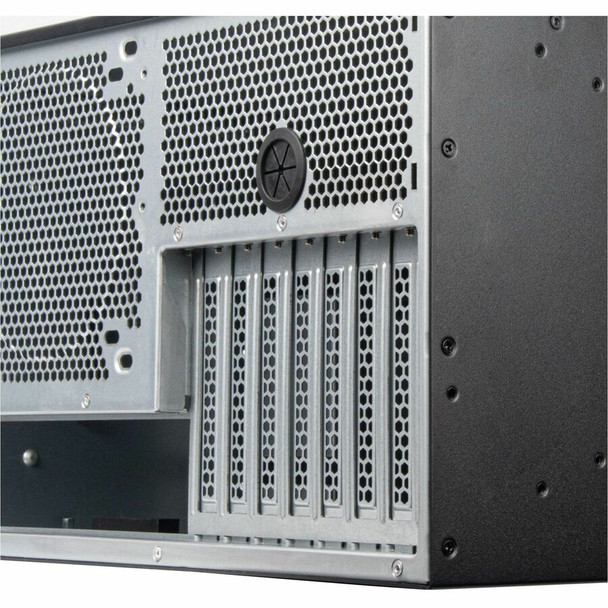

8 PCI expansion slots

Reserved sliding rail mounting holes for quick rail installation

Includes one USB Type-C interface

Upright or horizontal placement flexibility

Secondary PSU can be installed if 3.5" drive cage is to be left unoccupied


Dual-purpose chassis Industrial / Home

Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.


Unparalleled rackmount cooling performance

2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling.

Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator.


Tremendous hardware versatility

An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If its to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor


Excellent space maximization

To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization Model No.
SST-RM51 Chassis form factor
5U Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX Material
Steel Drive Bay
Internal
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU)
2.5" x 4 Power Supply
Primary PSU slot: PS2 (ATX) / Mini Redundant
Secondary PSU slot: SFX (occupies 3.5" bracket) Limitation of PSU
160mm to 190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation) Cooling system
Front
120mm x 3 / 180mm x 2
(2 x Air Penetrator 184i PRO fans included)
Rear
Rear I/O: 120mm x 1 / 140mm x 1
Rear fan cage: 80mm x 2 Radiator support
Front
120mm x 3 / 120mm x 1 + 240mm x 1 / 360mm x 1 (120mm x 3) / 360mm x 1 (180mm x 2)
Rear
120mm x 1 Limitation of CPU cooler
Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mm Expansion card
Length: 455mm (without installing front fans and radiators)
Width w/ expansion card retainer: 157mm
Width w/o expansion card retainer: 198mm Expansion Slot

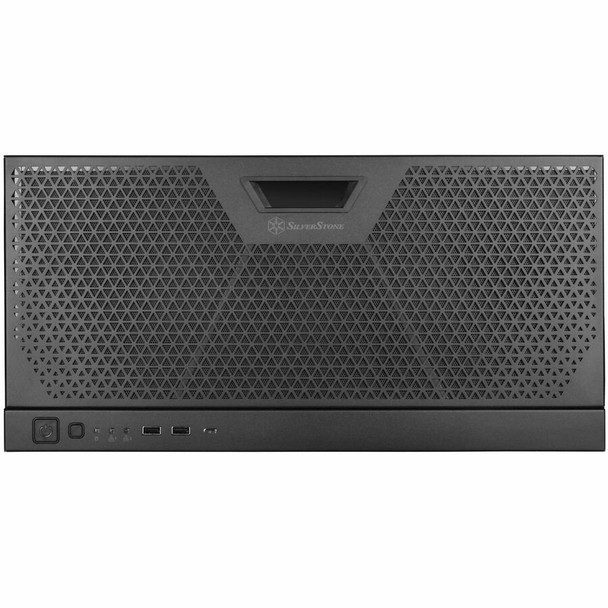

8 Front I/O Port
USB Type-C x 1
USB 3.0 x 2 LED indicator
Power status x 1
HDD activity x 1
LAN activity x 2 Extra
Side switch for chassis intrusion securityItem Dimension (L inchxW inchxH inch)
26 x 23 x 17

Weight
74.00 lb

Warranty Information
1 year
