Sitex Marine Electronics 70D600CW18 Bronze Tilted Element Thru Hull 60 BT70D600CW18
(No reviews yet)
Write a Review
- SKU:
- 20713629
- MPN:
- 70d600cw18
- Availability:
- Usually ships the same or next business day. In stock at our CA, FL, PA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/21/2026 05:34:27 AM PST
- Stock Update:
- 02/21/2026 05:34:27 AM PST
Description
This item is brand-new, factory sealed.

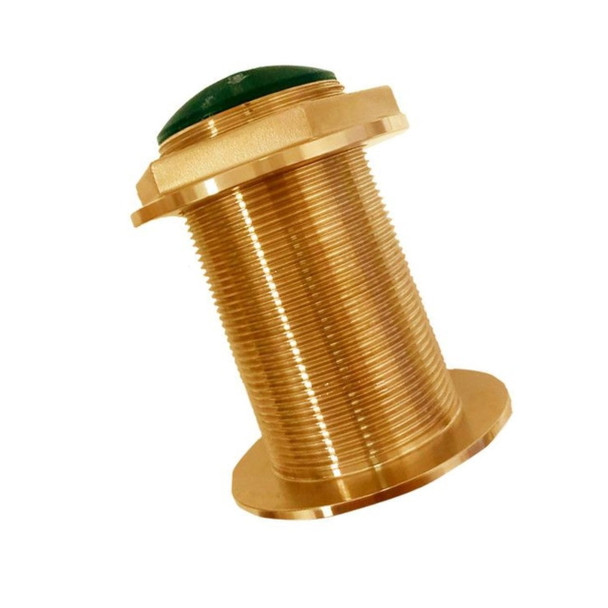

Exchonautics BT70D600 50/200kHz Bronze Thru-Hull with 18 degree Tilted Element
Model: BT70D600-18Get target detail in shallow water and good deep-water botoom tracking.
this series is designed to minimiz drag and to perform at high speeds.
Specifications| Function | Depth and temperature |
| Frequency | 50/200kHz |
| Mount type | Thru-hull |
| Tilt/deadrise | 18° tilte for 16° to 24° hull deadrises |
| Material | Bronze |
| RMS Power | 600 watts |
| Beamwidth | 42° / 11° -3db |
| Depth | Max@50kHz = 1200ft Max at 200kHz = 700ft |
| Temp sensor | NTC |
| Acoustic window | Urethane |
| Weight | 54oz |
| Cable length | 27ft |
| Hole diameter | 2.38" |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Sitex Marine Electronics 70D600CW18 Bronze Tilted Element Thru Hull 60 BT70D600CW18
$201.15
