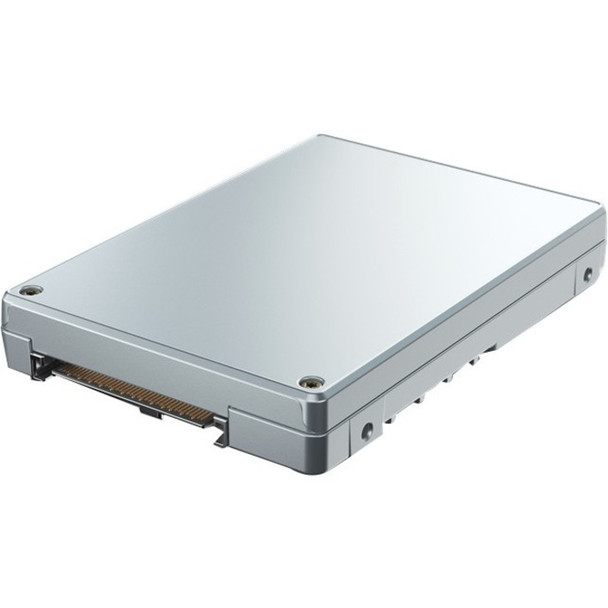

Solidigm Solid State Drive SSDPF2KX019T1M1 D7-P5520 1.92TB 2.5" PCIe4.0x4 3D4 TLC Retail
(No reviews yet)
Write a Review
- SKU:
- 19044183
- MPN:
- 263666
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/28/2026 02:39:31 PM PST
- Stock Update:
- 01/28/2026 02:39:31 PM PST
Description
This item is brand-new, factory sealed.
High-performing, standard-endurance PCIe 4.0 SSDs with capacities up to 15.36 TB, designed for read-intensive workloads.INTERFACE
PCIE 4.0 X4, NVME
FORM FACTOR
U.2 15MM
CAPACITY
1.92 TB Essentials
Product Collection
Intel SSD P5520 Series Code Name
Arbordale Plus Refresh Refresh Capacity
1.92 TB Lithography Type
144L TLC 3D NAND Use Conditions
Server/Enterprise Performance Specifications
Sequential Bandwidth - 100% Read (up to)
5300 MB/s Sequential Bandwidth - 100% Write (up to)
1900 MB/s Random Read (100% Span)
700000 IOPS (4K Blocks) Random Write (100% Span)
114000 IOPS (4K Blocks) Power - Active
13W Power - Idle
5W Reliability
Vibration - Operating
2.17 GRMS (5 - 700 Hz) Max Vibration - Non-Operating
3.13 GRMS (5 - 800 Hz) Max Shock (Operating and Non-Operating)
1,000 G (Max) at 0.5 msec Operating Temperature Range
0oC to 70oC Operating Temperature (Maximum)
70 oC Operating Temperature (Minimum)
0 oC Endurance Rating (Lifetime Writes)
3.5 PBW Mean Time Between Failures (MTBF)
2 million hours Uncorrectable Bit Error Rate (UBER)
1 sector per 1017 bits read
Features
Device Supported:
Server
Server
Specs
| Physical Characteristics | |
| Form Factor | E1.S - EDSFF |
| Weight (Approximate) | 2.54 oz |
| Drive Type | Internal |
| Height | 0.4" |
| Interfaces/Ports | |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Drive Interface | PCI Express NVMe |
| General Information | |
| Brand Name | SOLIDIGM |
| Package Type | Bulk |
| Manufacturer Website Address | http://www.solidigm.com |
| Marketing Information | High-performing, standard-endurance PCIe 4.0 SSDs with capacities up to 15.36 TB, designed for read-intensive workloads. More from the Manufacturer |
| Product Type | Solid State Drive |
| Product Name | D7-P5520 Solid State Drive |
| Manufacturer | SOLIDIGM |
| Manufacturer Part Number | SSDPF2KX019T1M1 |
| Product Series | D7-P5520 |
| Packaged Quantity | 1 |
| Drive Performance | |
| Maximum Read Transfer Rate | 6600 MB/s |
| Maximum Write Transfer Rate | 4200 MB/s |
| Random 4KB Read | 1100000IOPS |
| Random 4KB Write | 220000IOPS |
| Endurance (TBW) | 14336 TB |
| Network & Communication | |
| Wireless LAN | No |
| Technical Information | |
| Storage Capacity | 1.92 TB |
| Encryption Standard | 256-bit AES |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
