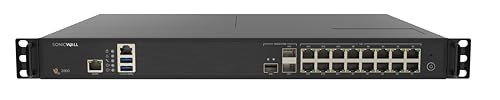

SonicWall NSa 2800 Network Security/Firewall Appliance (03-ssc-4692)

(No reviews yet) Write a Review
SKU:
21105846
MPN:
03-ssc-4692
Availability:
Usually ships the same or next business day. In stock at our CA, PA, SC warehouses.
Shipping:
Calculated at Checkout
Stock Update:
03/21/2026 03:29:47 AM PST
$1,808.84
Stock Update:
03/21/2026 03:29:47 AM PST

Description



This item is brand-new, factory sealed.

SonicWall latest mid-range next-gen firewalls, Network Security Appliance (NSa) 2800 and 3800 offer medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class. The firewalls are the cornerstones of the threat protection solution that includes simplified centralized firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation.

The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck

Gen 8 NSa firewalls drives strong security with a comprehensive solution encompassing of threat protection, centralized management, reporting and analytics, security and managed service options, Secure Service Edge (SSE) integration, and cyber warranty

Hardware

NSa 2800 and 3800, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, including multiple 10 GbE, the firewall solutions support network and hardware redundancy with high availability and dual power supplies.

Architecture

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterprise level workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency

NSa 2800 and 3800 support advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-pane-of-glass interface to manage both switches and access points.

Threat Protection and Security Services

Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 8 NSa Series offers access to SonicWall's advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Cloud Application Security, Capture Advanced Threat Protection (ATP) cloud-based sandboxing, patented Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) - for all traffic including TLS 1.3 - offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats.

Flexible licensing includes Hardware Only, Essential, Advanced and Managed Protection Security Suite (MPSS) to meet your unique needs. MPSS augments resources with managed services for firewalls

A Cloud Secure Edge Connector integration provides secure access to their private applications behind the firewalls. Users and devices can adhere to a Zero-Trust framework for application access

Cyber Warranty

An embedded cyber warranty is offered as part of your security services to mitigate costs of security breach, meet compliance requirements and promote peace of mind.

Features

Certifications & Standards:
  • FCC Class A
  • ICES Class A
  • CE (EMC, LVD)
  • UL
  • cUL
  • Mexico DGN Notice by UL
  • ANATEL
  • SCIP
  • RCM
  • MIC Terminal
  • VCCI Class A
  • KCC/MSIP
  • BSMI
  • MTCTE/TEC
  • CB



Additional Information:
  • Operating system - SonicOS 8
  • Interfaces - 16x 1GbE, 3 x 10/5/2.5/1G SFP/SFP+, 2 x USB (type-A), 1 Console, 1 Mgmt. port
  • Storage/(Expansion) - 128 GB (Up to 512 GB)
  • Centralized Management Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
  • Logical VLAN and tunnel interfaces (maximum) - 256
  • SAML Single Sign-On Users - 40,000
  • Access points supported (maximum) - 512
  • Firewall inspection throughput - 8 Gbps
  • Threat Prevention throughput - 6 Gbps
  • Application inspection throughput - 7 Gbps
  • IPS throughput - 7 Gbps
  • Anti-malware inspection throughput - 6 Gbps
  • TLS/SSL inspection and decryption throughput - 1.8 Gbps
  • IPSec VPN throughput - 5.5 Gbps
  • Connections per second - 50,000
  • Maximum Connections (SPI) - 2,000,000
  • Maximum connections (DPI) - 1,000,000
  • Maximum connections (TLS) - 150,000
  • Site-to-site VPN tunnels - 2,000
  • IPSec VPN clients (max) - 50 (1,000)
  • SSL-VPN licenses (max) - 2 (500)
  • Encryption/Authentication - DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
  • Key exchange Diffie Hellman Groups - 1, 2, 5, 14v
  • Route-based - VPN RIP, OSPF, BGP
  • Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft, CA for SonicWall-to-SonicWall VPN, SCEP
  • VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant, VPN Gateway, Route-based VPN
  • Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10
  • NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux
  • Mobile Connect - Apple® iOS, Mac OS X, Google® Android™, Chrome OS, Windows
  • IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
  • NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
  • Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
  • Authentication - LDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
  • VoIP - Full H323-v1-5, SIP
  • Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
  • Certifications - IPv6/USGv6
  • Form factor - 1U Rack-mountable
  • Power supply (W) - 90
  • Input power (AC): 100-240 VAC, 50-60 Hz
  • Total heat dissipation (BTU) - 180.01
  • WEEE weight (kg) - 4.8
  • Environment (Operating/Storage): 0°C to +40°C / -40°C to +70°C
  • Humidity: 5-95% non-condensing

  •

    Application/Usage:

    Enterprise
    Campus
    Security
    Network
    Branch Office



    Environmental Compliance:

    Waste Electrical and Electronic Equipment Directive (WEEE)
    Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Restriction of Hazardous Substances (RoHS)



    Specs

    Management & Protocols
    ManageableYes
    Power Description
    Frequency
    Power Consumption52.80 W
    Physical Characteristics
    Form FactorRack-mountable
    Weight (Approximate)10.14 lb
    Height1.8"
    Compatible Rack Unit1U
    Width16.9"
    Depth12.8"
    Interfaces/Ports
    Total Number of Ports16
    USBYes
    Number of Network (RJ-45) Ports16
    I/O Expansions
    Total Number of Expansion Slots3
    Expansion Slot Type
    Number of SFP+ Slots3
    General Information
    Brand NameSonicWall
    Manufacturer Website Addresshttp://www.sonicwall.com
    Marketing InformationSonicWall's latest mid-range next-gen firewalls, Network Security Appliance (NSa) Series, offers medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class. The firewalls are the cornerstones of the threat protection solution that includes simplified centralized firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation.
    The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, GeoIP and Botnet services, protecting the perimeter from advanced threats without becoming a bottleneck.
    Gen 8 NSa firewalls drive strong security with a comprehensive solution encompassing of threat protection, centralized management, reporting and analytics, security and managed service options, Secure Service Edge (SSE) integration, and cyber warranty
    Hardware
    Gen 8 NSa Series, built with the latest hardware components, delivers multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, the firewall solutions support network and hardware redundancy with high availability and dual power adapters including one for redundancy.
    Architecture
    The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterpriselevel workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency
    The NSa Series supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliances provide a single-paneof-glass interface to manage both switches and access points.
    Threat Protection and Security Services
    Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 8 NSa Series offers access to SonicWall's advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Capture Advanced Threat Protection (ATP) cloud-based sandboxing, patented Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) - for all traffic including TLS 1.3 - offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats.
    Simplified licensing includes Hardware Only, Advanced (APSS) and Managed Protection Security Suite (MPSS) to meet your unique needs. MPSS augments resources with managed services for firewalls.
    A Cloud Secure Edge Connector integration provides secure access to their private applications behind the firewalls. Users and devices can adhere to a Zero-Trust framework for application access.
    Cyber Warranty
    An embedded cyber warranty is offered as part of your security services to mitigate costs of security breach, meet compliance requirements and promote peace of mind.
    More from the Manufacturer
    Product TypeNetwork Security/Firewall Appliance
    Product NameNSa 2800 Network Security/Firewall Appliance
    ManufacturerSonicWall Inc.
    Manufacturer Part Number03-SSC-4692
    Product ModelNSa 2800
    Product SeriesNSa
    Media & Performance
    VPN Throughput704 MB/s
    IPS Throughput896 MB/s
    Network & Communication
    Ethernet Technology
    Technical Information
    AI-poweredYes
    FunctionalityCentralized Management
    New Connections Per Second50000
    Number of VPN Supported1000
    Data Link Protocols
    Firewall Protection Supported
    Firewall Throughput8 Gbit/s
    Encryption Standard
    Connectivity TechnologyWired
