Sonicwall

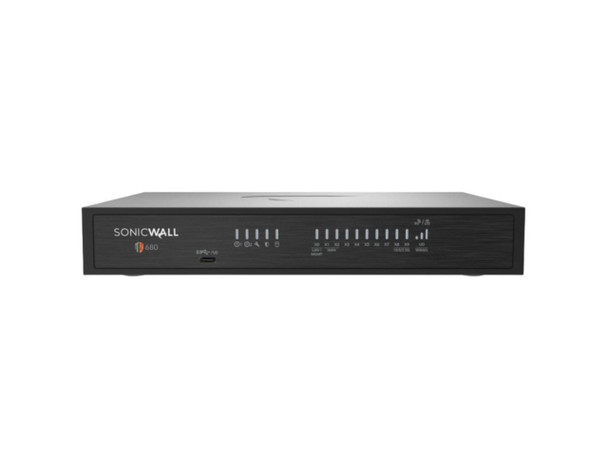

SonicWall TZ680 Network Security/Firewall Appliance (03-ssc-7014)

(No reviews yet) Write a Review
SKU:
21229656
MPN:
03-ssc-7014
Availability:
Usually ships the same or next business day. In stock at our PA warehouse.
Shipping:
Calculated at Checkout
Stock Update:
02/05/2026 02:34:50 AM PST
  • Main
  • ALTIMAGE1
  • ALTIMAGE2
  • ALTIMAGE3
  • ALTIMAGE4
$1,268.22
Stock Update:
02/05/2026 02:34:50 AM PST

Description



This item is brand-new, factory sealed.

SonicWall TZ680 High Availability (03-SSC-7014) | Redundant HA Unit for TZ680 Firewall Synchronization | Next-Generation Firewall | Ideal for Seamless Failover and Network Resilience
  • Redundant HA unit for TZ680 | Synchronized state and settings failover
  • Must be paired with a standard TZ680 (not a standalone firewall)
  • Seamless failover for maximum uptime and business continuity
  • Maintains sessions, policies, and configurations during switchover
  • Ideal for resilience, redundancy, and reliable network performance
  • Package Dimensions: 14.4 x 8.6 x 2.8 inches
  • Item Weight: 4 pounds

SonicWall TZ680 High Availability (03-SSC-7014) Redundant HA unit designed to mirror a primary TZ680 for synchronized failover. Not a standalone appliance; must be paired with a standard TZ680. Delivers next-generation security features with fast recovery and consistent protection.

Features

Certifications & Standards:
  • FCC Class B
  • ICES Class B
  • CE (EMC, LVD)
  • UL
  • cUL
  • Mexico DGN Notice by UL
  • ANATEL
  • SCIP
  • RCM
  • MIC Terminal
  • VCCI Class B
  • KCC/MSIP
  • BSMI
  • MTCTE/TEC
  • CB



Additional Information:
  • Operating system - SonicOS 8
  • Interfaces - 8x1GbE, 2x 10/5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB)
  • Storage /(expansion) - (Optional: Up to 512 GB)
  • Centralized Management - Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
  • Logical VLAN and tunnel interfaces (maximum) - 256
  • SAML Single Sign-On (SSO) Users - 2,500
  • Access points supported (maximum) - 32
  • Firewall inspection throughput - 5 Gbps
  • Threat prevention throughput - 2.5 Gbps
  • Application inspection throughput - 3 Gbps
  • IPS throughput - 3 Gbps
  • Anti-malware inspection throughput - 2.5 Gbps
  • TLS/SSL inspection and decryption throughput - 800 Mbps
  • IPSEC VPN throughput - 2.5 Gbps
  • Connections per second - 26,000
  • Maximum connections (SPI) - 1,600,000
  • Maximum connections (DPI) - 600,000
  • Maximum connections (TLS) - 75,000
  • Site-to-site VPN tunnels - 250
  • IPSec VPN clients (maximum) - 10 (500)
  • SSL-VPN licenses (maximum) - 2 (250)
  • Encryption/authentication - AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography
  • Key exchange: Diffie Hellman Groups 1, 2, 5, 14v
  • Route-based: VPN RIP, OSPF, BGP
  • Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
  • VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
  • Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10
  • NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux
  • Mobile Connect - Apple® iOS, Mac OS X, Google® Android™ Chrome OS, Windows
  • IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
  • NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
  • Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
  • Authentication - LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user
  • database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
  • VoIP - Full H3230v1.5 SIP
  • Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
  • Certifications - IPv6
  • High availability - Active/Standby with stateful synchronization
  • Power supply (W) - 60
  • Input power - 100-240 VAC, 50-60Hz
  • Total heat dissipation (BTU) - 57.93
  • WEEE weight (kg) - 1.42
  • MTBF @25oC in years - 29.9
  • Environment (Operating/Storage): 0°C to +40°C / -40°C to +70°C
  • Humidity - 5-95% non-condensing

    •

    Application/Usage:

    Enterprise
    Business
    Network
    Security



    Environmental Compliance:

    Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Restriction of Hazardous Substances (RoHS)
    Waste Electrical and Electronic Equipment Directive (WEEE)



    Specs

    Management & Protocols
    ManageableYes
    Power Description
    Frequency
    • 50 Hz
    • 60 Hz
    Power Consumption16.99 W
    Physical Characteristics
    Form FactorDesktop
    Weight (Approximate)2.14 lb
    Height1.4"
    Width7.5"
    Depth5.1"
    Interfaces/Ports
    Total Number of Ports8
    USBYes
    Number of Network (RJ-45) Ports8
    I/O Expansions
    Total Number of Expansion Slots2
    Expansion Slot TypeSFP+
    Number of SFP+ Slots2
    General Information
    Brand NameSonicWall
    Manufacturer Website Addresshttp://www.sonicwall.com
    Marketing InformationDesigned for mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ 680 Series delivers industry-validated security effectiveness with best-in-class price-performance.
    More from the Manufacturer
    Product TypeNetwork Security/Firewall Appliance
    Product NameTZ680 Network Security/Firewall Appliance
    ManufacturerSonicWall Inc.
    Manufacturer Part Number03-SSC-7014
    Product ModelTZ680
    Product SeriesTZ
    Media & Performance
    VPN Throughput320 MB/s
    IPS Throughput384 MB/s
    Network & Communication
    Ethernet Technology
    • Gigabit Ethernet
    • 5 Gigabit Ethernet
    • 2.5 Gigabit Ethernet
    • 10 Gigabit Ethernet
    Technical Information
    AI-poweredYes
    FunctionalityIntrusion Prevention
    New Connections Per Second26000
    Number of VPN Supported500
    Data Link Protocols
    • HTTP
    • HTTPS
    • L2TP
    • PPTP
    • TCP/IP
    Firewall Protection Supported
    • Intrusion Prevention
    • Malware Protection
    • Application Control
    • Content Filtering
    • Anti-spyware
    • URL Filtering
    • Denial of Service (DoS)
    • Stateful Packet Filtering
    • Signature-based Intrusion Prevention
    • Distributed Denial of Service (DDoS)
    • Threat Protection
    • Secure IPsec VPN Connectivity
    • Deep Inspection Firewall
    • Real-Time Deep Memory Inspection (RTDMI)
    • Gateway Antivirus
    • Reassembly-free Deep Packet Inspection
    • TLS Decryption
    • TLS Inspection
    • SSL Decryption
    • SSL Inspection
    Firewall Throughput5 Gbit/s
    Encryption Standard
    • MD5
    • AES (128-bit)
    • AES (192-bit)
    • AES (256-bit)
    • SHA-256
    • SHA-384
    • TLS 1.3
    • SSL
    • TLS
    Connectivity TechnologyWired

    View AllClose

    Warranty Information

    All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
