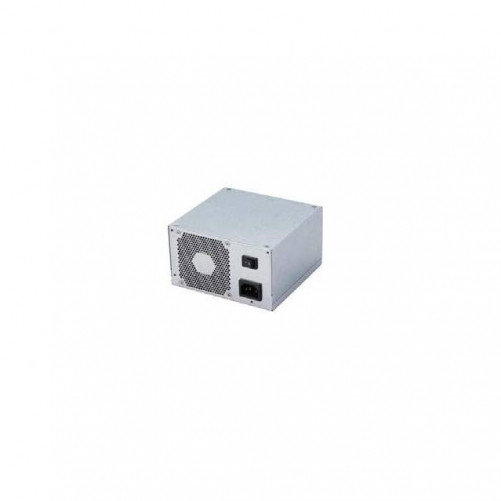

Sparkle FSP400AGBB204 FSP400AGB 400W ATX Power Supply

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number: FSP400AGB-B204

• Features:
  • Complied with ATX12V standard
  • Active Power Factor Correction (PFC) meet EN61000-3-2
  • High efficiency and reliability
  • Compatible with European Union Directive 2011/65/EU & (EU)2015/863 (Restriction on Hazardous Substances)
  • Remote ON/OFF function
  • Internal 12V DC fan included
  • AC input I/O switch is option
  • Low noise and ripple
  • Output over voltage, short circuit, and over current protection
  • 100% Hi-pot, ATE, and burn-in tested
  • Re-settable power shut down
  • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
  • Approved by CB 62368 & 60950-1 2nd, EMC, UL TUV, FCC, CCC

• Input:
  • Input Range: 90 ~ 264Vac (RMS), Full Range Input
  • Frequency: 47 ~ 63Hz
  • Input Current: Max 6A(RMS) @ 115Vac, 3A(RMS) @ 230Vac
  • Inrush Current: No damage at cold start
• Output:
  • Total Watts: 400W
  • Output Voltage: +3.3V @ 19A, +5V @ 16A, +12V @ 33A, -12V @ 0.3A, +5VSB @ 2.5A
  • +3.3V and +5V total output not exceed 105W
• Dielectric Withstand: Primary frame ground 1800V AC for 2 second
• Efficiency: Typical > 85%
• Rise Time: Less than 20ms
• Hold-up Time: 13ms minimum at nominal input voltage
• Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible)

• Leakage Current: Less than 3.5mA at 264Vac, 63Hz

• MTBF: A minimum predicted MTBF (MIL-HDBK-217) of 100,000 hours of continuous operation at +25C

• Dimensions (WxLxH): 5.9 x 5.5 x 3.4 inch / 150.0 x 140.0 x 86.0 mm
• RoHS Compliant
