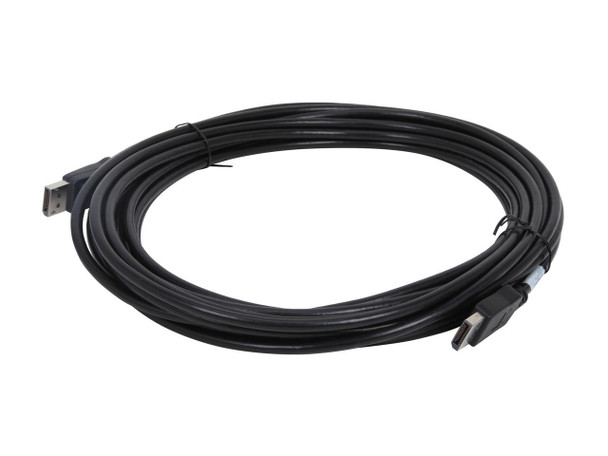

Startech 10m Active Displayport Cable - Dp To Dp M/m - Displayport For Audio/video Device DISPL10MA
(No reviews yet)
Write a Review
- SKU:
- 18150513
- MPN:
- displ10ma
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IN, MS, NJ, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/29/2026 01:41:47 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $51.47 each 51.47 |
| Buy 3 | and pay only $48.12 each 48.12 |
| Buy 4 - 9 | and pay only $47.11 each 47.11 |
| Buy 10 - 23 | and pay only $45.25 each 45.25 |
| Buy 24 or above | and pay only $44.35 each 44.35 |
- Stock Update:
- 01/29/2026 01:41:47 PM PST
Description
This item is brand-new, factory sealed.
The DISPL10MA 10m Active DisplayPort Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (25601600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.Cable Jacket Type
PVC - Polyvinyl ChlorideCable Shield Type
Aluminum-Mylar Foil with BraidConnector Plating
NickelNickel
CMG Rated (General Purpose)Number of Conductors
19Connector A
1 - DisplayPort (20 pin) Latching MaleConnector B
1 - DisplayPort (20 pin) MaleCable Length
32.8 ft 10 mColor
BlackConnector Style
StraightWire Gauge
32 AWGIncluded in Package
1 - 10m Active DisplayPort Cable - M/MWeight
1.26
Item Dimension
11.81 x 11.02 x 0.39
Warranty Information
2 Year Warranty
Features
End of Life Manual Availability:
Yes
https://media.startech.com/cms/pdfs/displ10ma_weee.pdf
https://media.startech.com/cms/pdfs/displ10ma_rohs.pdf
EU RoHS
Yes
https://media.startech.com/cms/pdfs/displ10ma_rohs.pdf
Yes
FirePro S9000/7000, W8100/7100/5100 or R5000 Graphic Cards
China
Yes
WEEE Statement:
https://media.startech.com/cms/pdfs/displ10ma_weee.pdf
EU RoHS Declaration URL:
https://media.startech.com/cms/pdfs/displ10ma_rohs.pdf
Certifications & Standards:
- FCC
- CE
Environmental Certification:
EU RoHS
Environmentally Friendly:
Yes
REACH Declaration URL:
https://media.startech.com/cms/pdfs/displ10ma_rohs.pdf
REACH free of SVHC:
Yes
Compatibility:
FirePro S9000/7000, W8100/7100/5100 or R5000 Graphic Cards
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Weight (Approximate) | 1 lb |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Height | 0.5" |
| Color Family | Black |
| Shipping Weight (Approximate) | 1.03 lb |
| Width | 0.8" |
| Shipping Width | 10.04" |
| Shipping Height | 1.57" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | Connect DisplayPort®-equipped devices up to 10m away with no signal loss. The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss. This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed. The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560?-1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly. This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty. Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly. |
| Product Type | Video Cable |
| Product Name | 10m Active DisplayPort Cable - DP to DP M/M |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DISPL10MA |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Connector Gender on First End | Male |
| Data Transfer Rate | 10.8 Gbit/s |
| Cable Type | DisplayPort |
| Connector on First End Details | 1 x 20-pin DisplayPort Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Shielding | Yes |
| Device Supported |
|
| Connector on Second End Details | 1 x 20-pin DisplayPort Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Supported Resolution | 3840 x 2400 |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort Digital Audio/Video - Male |
| Cable Length | 32.81 ft |
| Conductor | Copper |
| Jacket Type | CMG |
| Features |
|
| American Wire Gauge | 32 AWG |
