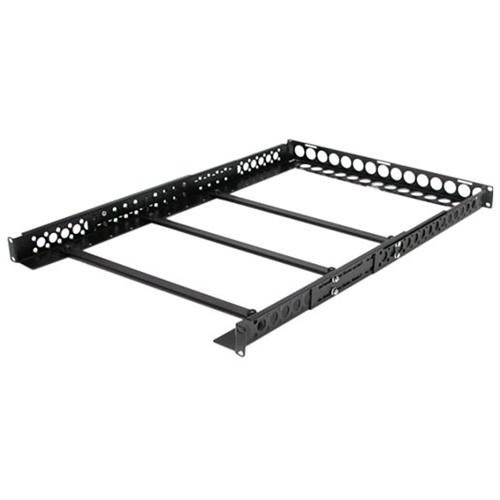

StarTech 19 Adjustable Depth Universal Server Rack Rail - For Server - Steel - Black" UNIRAILS1U
(No reviews yet)
Write a Review
- SKU:
- 18143985
- MPN:
- unirails1u
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/01/2026 06:08:49 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $96.42 each 96.42 |
- Stock Update:
- 02/01/2026 06:08:49 AM PST
Description
This item is brand-new, factory sealed.
Mount 19" Servers or Networking Hardware in any Standard Rack. The UNIRAILS1U 1U Fixed 19-inch Adjustable Depth Universal Server Rack Rails enable you to fit non-rack mountable equipment (weight up to 25kg/57lbs.) into a standard 19-inch rack.
Featuring sturdy, cold-rolled steel construction, adjustable depth configurations for varying rack sizes, horizontal equipment supports, and multiple mounting hole patterns to secure your equipment, this durable 19" rack rails kit makes mounting your non-rack mount equipment quick and easy.
Package Contents:
- 6 x Adjustable Side Rail Component
- 3 x Cross Brace
- 1 x Cable Manager
- Mounting Hardware
- Assembly Tool
Features
Package Contents:
Yes
Yes
Yes
Taiwan
- 1 x Set Universal Rack Rails
- 8 x M5 Panel Screws
- 8 x M5 Cage Nuts
- 1 x M5 Wrench
Certifications & Standards:
- UL
- CE
TAA Compliant:
Yes
Additional Information:

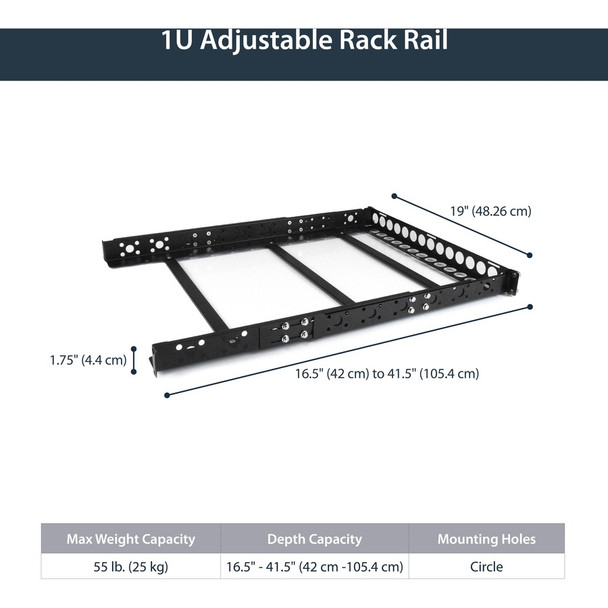

- Mounting Height: 1U
- Cross bars allow for mounting of equipment that can't span the 19" rack expanse
- Three-piece rail construction allows for a wide range, adjustable depth configuration to accommodate almost any size of rack
- Universal design mounts to almost any 19" server, or other equipment for maximum mounting versatility
- Maximum Mounting Depth: 41.5 in
- Minimum Mounting Depth: 16.54 in
Environmentally Friendly:
Yes
Assembly Required:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Weight (Approximate) | 5.80 lb |
| Height | 1.7" |
| Width | 18.3" |
| Depth | 18.9" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19" server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available. Turn non-rackmount equipment into 1U rackmount hardware These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security. Universal design mounts to almost any 19" server rack Adhering to the EIA-310 standard for 19" rackmount equipment, these mounting rails are universally compatible with 19" server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that's removable for additional customization. Maximum durability To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg). More from the Manufacturer |
| Product Type | Rack Rail |
| Product Name | 1U Fixed 19" Adjustable Depth Universal Server Rack Rails |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | UNIRAILS1U |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Features |
|
