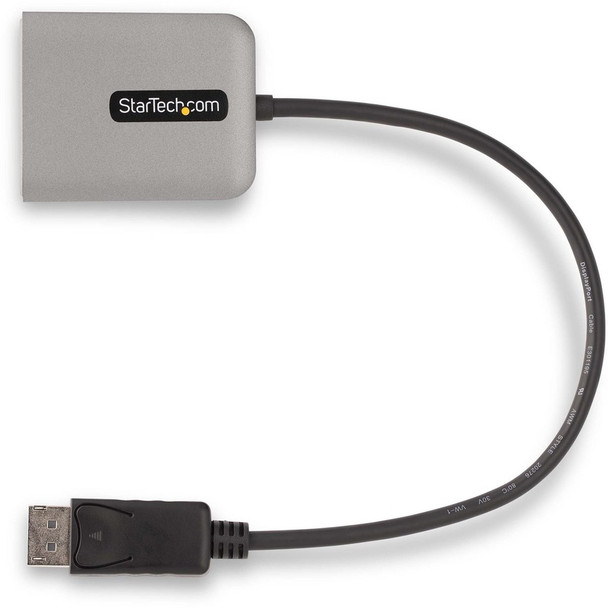

StarTech 2-Port DisplayPort MST Hub MST14DP122DP

This item is brand-new, factory sealed.

• MULTI-MONITOR CONFIGURATION: DisplayPort to Dual-DisplayPort MST Hub drives up to two 4K 60Hz displays from a DP 1.4 host; USB Powered; Supports HDR and 2ch Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions
• IT PRO PERFORMANCE: Increase productivity by adding two extended/mirrored displays to a Windows desktop; Utilize integrated or discrete GPU (Intel, AMD, or Nvidia) capabilities enabling high performance graphics, with minimal CPU usage; No driver required
• HARDWARE COMPATIBILITY: Windows computers with dedicated GPUs/11th gen & up Intel Processors featuring DP 1.4 support dual-4K 60Hz monitors; DP 1.4 with DSC required for dual-5K 60Hz; See resolution chart for a list of other supported configurations
• EXTRA-LONG CABLE: 1ft (30cm) built-in cable provides extended reach and reduced port strain, enabling flexible placement of the adapter; Adapters with short cables provide no flexibility in placement, adding clutter and cables to the workspace
• CONNECTIVITY TOOLS: Our app with Windows Layout Utility (available for download) restores locations of windows when re-connecting the adapter; Windows does not natively restore app window locations when disconnecting and reconnecting external monitors

• Product Dimensions: 1.7 x 4.1 x 0.6 inches
• Item Weight: 1.92 ounces

This DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device. Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity. Host Connection Maximum Resolution Output 1 Maximum Resolution Output 2 Example Host Processor/Graphics DisplayPort 1.4 with DSC 5K 60Hz 5K 60Hz *Intel 11th Gen with DSC Intel 12th Gen Processors & Later Dedicated AMD & Nvidia GPU's that support DSC DisplayPort 1.4 4K 60Hz 4K 60Hz Intel 10 th Gen (Ice Lake Only) Intel 11th Gen Processors & Later Dedicated AMD and Nvidia GPU's that support DP 1.4 DisplayPort 1.2 4K 30Hz 4K 30Hz Intel 8 th - 10th Gen Processors & Later *Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity. This MST Hub works with DisplayPort enabled Windows devices featuring 11th generation (and later) processors, or dedicated graphics cards that have a DisplayPort 1.4 output. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB Powered and comes with the USB Micro-B power cable. This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.

• DisplayPort MST Hub
• 1 x Micro-USB Power Cable
