Startech IT
StarTech 2 Port Panel Mount USB 3.0 Cable - USB A to Motherboard Header Cable F/F - USB for Motherboard - 1.64 ft - 1 Pack - 2 x Type A Female USB - 1 x IDC Female USB - Blue USB3SPNLAFHD
(No reviews yet)
Write a Review
- SKU:
- 18061949
- MPN:
- usb3spnlafhd
- Availability:
- Usually ships the same or next business day. In stock at our CA, IN, MS, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/11/2026 04:40:55 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $26.43 each 26.43 |
| Buy 3 | and pay only $23.95 each 23.95 |
| Buy 4 - 9 | and pay only $22.97 each 22.97 |
| Buy 10 - 52 | and pay only $20.64 each 20.64 |
| Buy 53 or above | and pay only $19.78 each 19.78 |
- Stock Update:
- 02/11/2026 04:40:55 PM PST
Description
This item is brand-new, factory sealed.

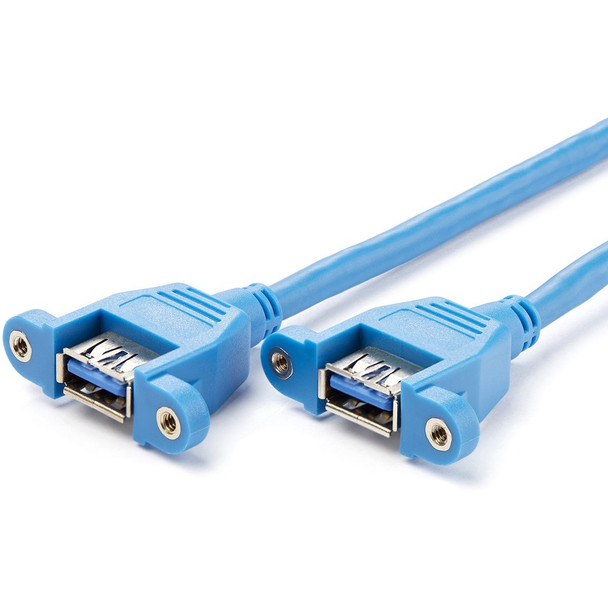

The USB3SPNLAFHD 2-Port USB 3.0 to Panel mount USB cable features a 20-pin USB 3.0 motherboard header connection on one end, breaking off into two separate USB 3.0-A (female) ports on the other end of the cable.The USB 3.0 panel mount cable offers a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB 3.0 connection. Cable Jacket Type
PVC - Polyvinyl Chloride
Cable Length
1.64 ft (0.5 m)
Cable Shield Type
Aluminum-Mylar Foil with Braid Color
Blue
Connector A
2 - USB 3.0 A (9 pin SuperSpeed) Female
Connector B
1 - IDC (20 pin USB 3.0 Motherboard Header) Female Product Height
0.98 in (25 mm)
Product Length
19.69 in (500 mm)
Product Weight
2.4 oz (68 g)
Wire Gauge
28 AWG Item Dimension (L"xW"xH"):
4.92 x 8.86 x 0.39
Weight:
0.16 lb
Warranty Information:
Lifetime Warranty
Features
Environmentally Friendly:
Yes
Restriction of Hazardous Substances (RoHS)
China
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Weight (Approximate) | 0.14 lb |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The USB3SPNLAFHD 2-Port USB 3.0 to Panel mount USB cable features a 20-pin USB 3.0 motherboard header connection on one end, breaking off into two separate USB 3.0-A (female) ports on the other end of the cable. The USB 3.0 panel mount cable offers a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB 3.0 connection. The USB 20-pin motherboard header to panel mount USB 3.0 cable is backed by StarTech.com's Lifetime Warranty. More from the Manufacturer More from the Manufacturer |
| Product Type | Data Transfer Adapter |
| Product Name | 2 Port Panel Mount USB 3.0 Cable - USB A to Motherboard Header Cable F/F |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB3SPNLAFHD |
| Product Model | USB3SPNLAFHD |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Connector Gender on First End | Female |
| Connector on Second End Details | 1 x 20-pin IDC USB 3.0 - Female |
| Connector on First End Details | 2 x 9-pin USB 3.0 Type A - Female |
| Connector Type on First End | USB 3.0 Type A - Female |
| Cable Length | 1.60 ft |
| Number of Ways | 2-way |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
StarTech 2 Port Panel Mount USB 3.0 Cable - USB A to Motherboard Header Cable F/F - USB for Motherboard - 1.64 ft - 1 Pack - 2 x Type A Female USB - 1 x IDC Female USB - Blue USB3SPNLAFHD
$31.81
