StarTech 2-Port Serial PCIe Card 2S232422485PCCARD
- SKU:
- 20596225
- MPN:
- 2s232422485-pc-card
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/29/2026 06:28:50 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $91.80 each 91.8 |
| Buy 3 - 4 | and pay only $89.31 each 89.31 |
| Buy 5 or above | and pay only $87.63 each 87.63 |
- Stock Update:
- 03/29/2026 06:28:50 AM PST
Description
This item is brand-new, factory sealed.

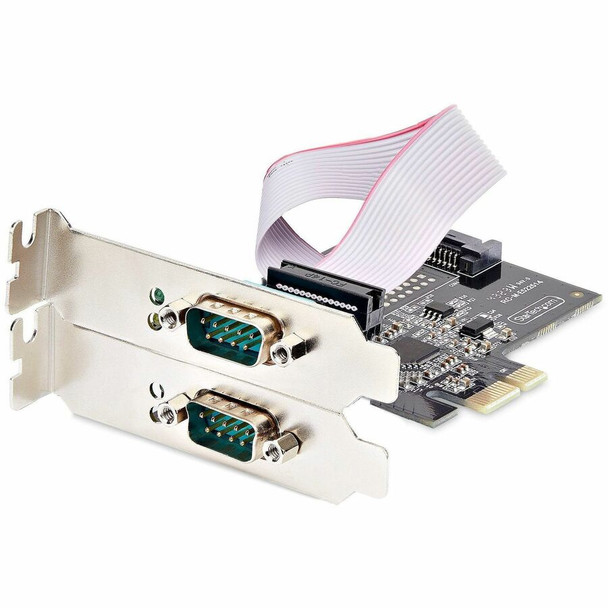

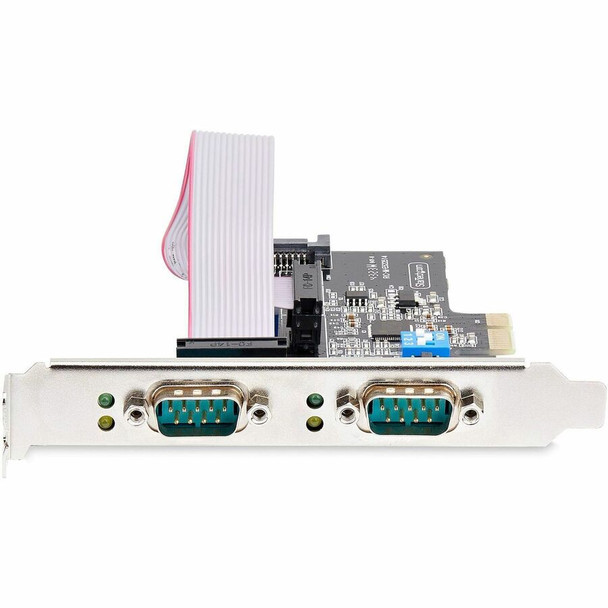

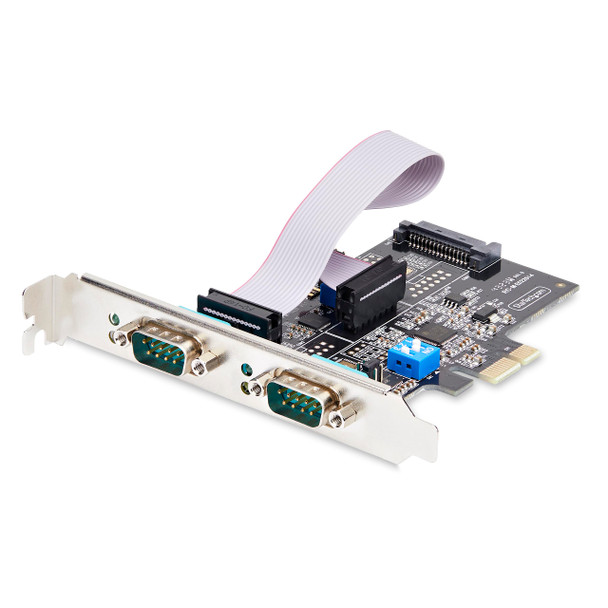

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.
Per-Port Serial Configuration

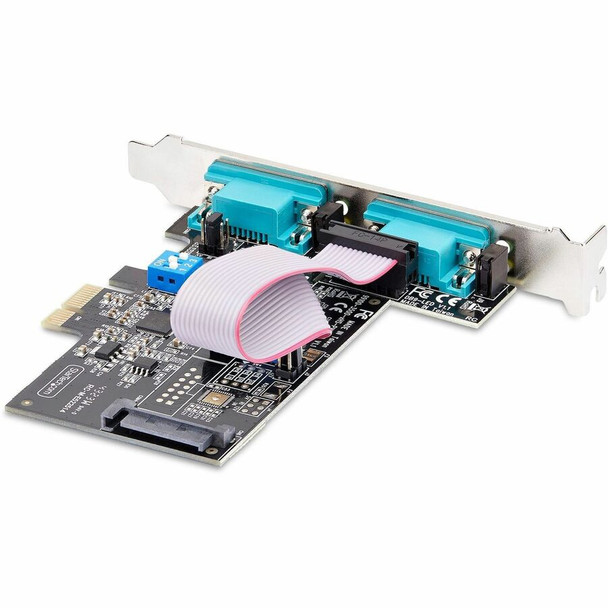

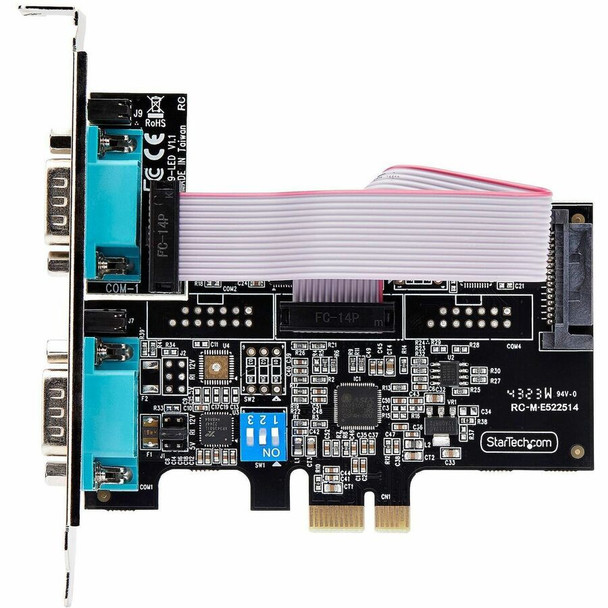

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.
Configurable External SATA Power
The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.
Legacy Connectivity
This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).
Package Contents:
- 2-Port Serial Card
- 2 x Low-Profile Bracket
- 1 x Ribbon Cable
- 1 x Quick-Start Guide
Features
- 2-Port Serial Card
- 2 x Low-Profile Bracket
- 1 x Ribbon Cable
- 1 x Quick-Start Guide
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 2.01 oz |
| Product Color | Black |
| Height | 0.6" |
| Width | 4" |
| Depth | 4.1" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 2 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices. Per-Port Serial Configuration This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity. Configurable External SATA Power The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9. Legacy Connectivity This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes). |
| Product Type | Serial Adapter |
| Product Name | 2-Port Serial Card |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 2S232422485-PC-CARD |
| Packaged Quantity | 1 |
| Technical Information | |
| Host Interface | PCI Express 2.0 x1 |
| UART Type |
|
| Platform Supported |
|
