Startech

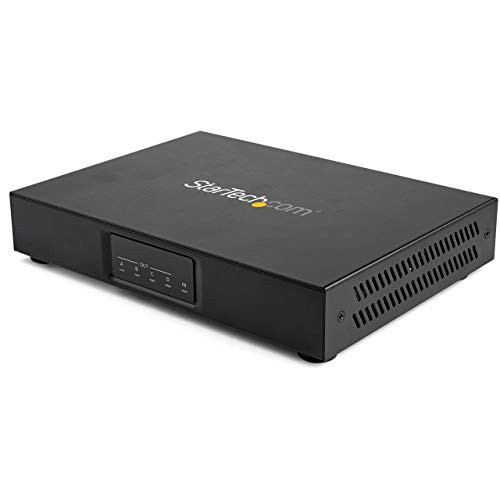

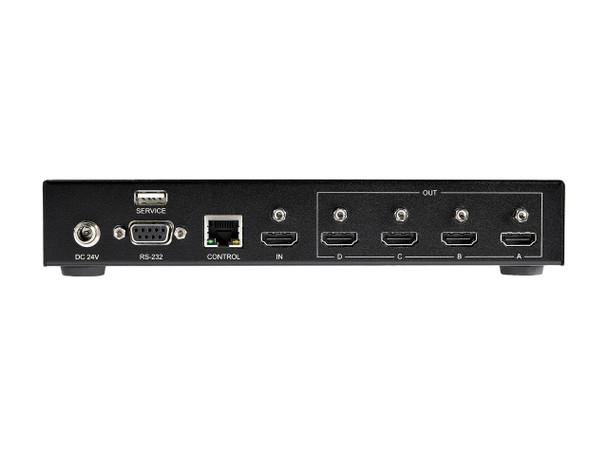

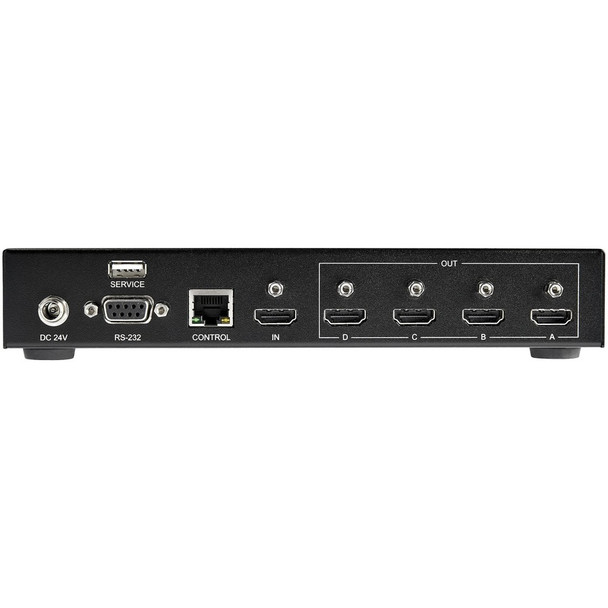

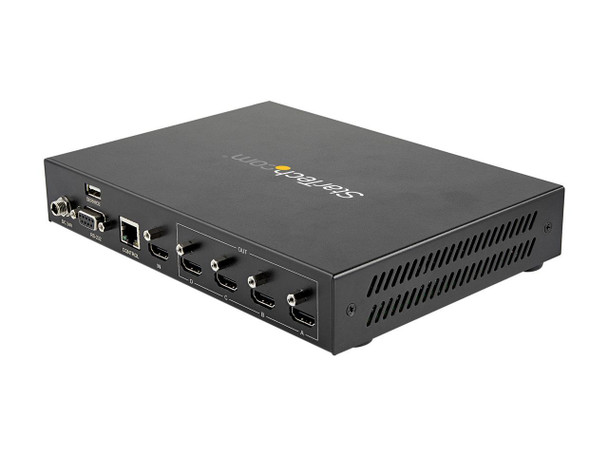

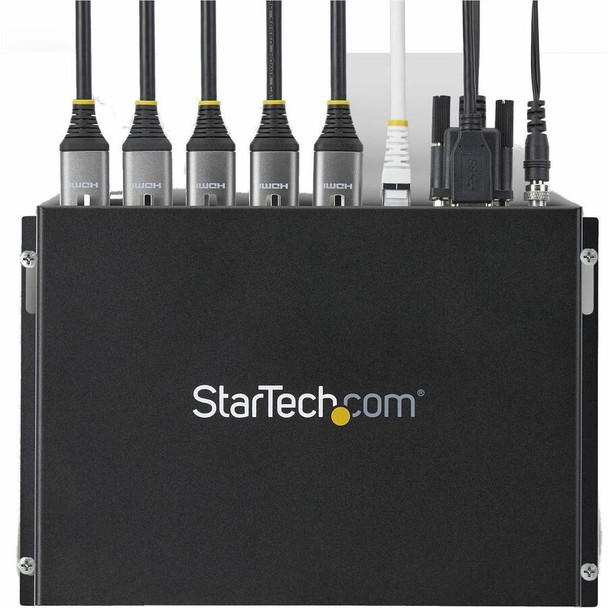

StarTech 2x2 HDMI Video Wall Controller ST124HDVW
- SKU:
- 18210610
- MPN:
- 243233
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA, SC warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/09/2026 11:24:42 AM PST
- Stock Update:
- 02/09/2026 11:24:42 AM PST
Description
This item is brand-new, factory sealed.
StarTech.com 2x2 Video Wall Controller - 4K 60HZ Display - HDMI 2.0-1 in 4 Out Video Wall Splitter - RS-232 Serial Control (ST124HDVW)- HIGH RESOLUTION: This video wall controller for multiple displays supports resolutions up to 4K 60Hz, supports HDCP 2. 2, and is backward compatible with virtually any HDMI device
- PLUG & PLAY: With support for EDID emulation and no additional drivers or software required, this 2x2 video wall matrix controller is easy to set up
- 4-SCREEN DISPLAY: This video wall processor enables you to create an impressive video wall by spanning your video source across four displays, either mirroring or splitting your display
- REMOTE CONFIGURATION: This 1 to 4 video splitter supports the use of RS-232 serial control so you can remotely configure the HDMI matrix controller
- THE STARTECH ADVANTAGE: StarTech offers a 2-year and free lifetime technical support on this multi-TV video wall system and has been the IT pros choice since 1985
- Package Dimensions: 11.81 x 10.24 x 2.76 inches
- Item Weight: 3.51 pounds
This 4-screen video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD resolutions and 7. 1 surround sound audio. You can use the controller as a display splitter to distribute the same HDMI signal to four displays or you can combine your video source across four displays to create a 2x2 video wall. True 4K at 60Hz Not all 2x2 video wall matrix controllers are created equal. While some HDMI 1. 4 video wall controllers can achieve 4K resolutions, they'll only work at a 30Hz refresh rate. This 4K 60Hz HDMI multi-TV video wall processor offers full support for HDMI 2. 0, including true 4K resolution at 60Hz. Widely Compatible The HDMI video wall splitter supports HDCP 2. 2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage application. Easy Installation and Setup For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4 displays and the multi-screen video wall system will automatically create a video wall at the appropriate resolution. Reliability The ST124HDVW is backed by a 2-year StarTech and free lifetime technical support.
Package Contents:
- 2x2 Video Wall Splitter
- Manual
- Universal Power Supply
Features
- 2x2 Video Wall Splitter
- Manual
- Universal Power Supply
Environmental Certification:
EU RoHS
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 2.20 lb |
| Length | 0.9" |
| Product Color | Black |
| Height | 1.8" |
| Color Family | Black |
| Width | 0.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| HDMI Out | Yes |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| USB | Yes |
| Number of HDMI Outputs | 4 |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD resolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same HDMI signal to four displays or you can combine your video source across four displays to create a 2x2 video wall. Supports True 4K at 60Hz Not all 2x2 video wall matrix controllers are created equal. While some HDMI 1.4 video wall controllers can achieve 4K resolutions, they'll only work at a 30Hz refresh rate. This 4K 60Hz HDMI video wall processor offers full support for HDMI 2.0, including true 4K resolution at 60Hz. Widely Compatible The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage application. Easy Installation and Setup For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4 displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution. The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales. The ST124HDVW is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Signal Splitter |
| Product Name | 2x2 Video Wall Splitter |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST124HDVW |
| Packaged Quantity | 1 Each |
